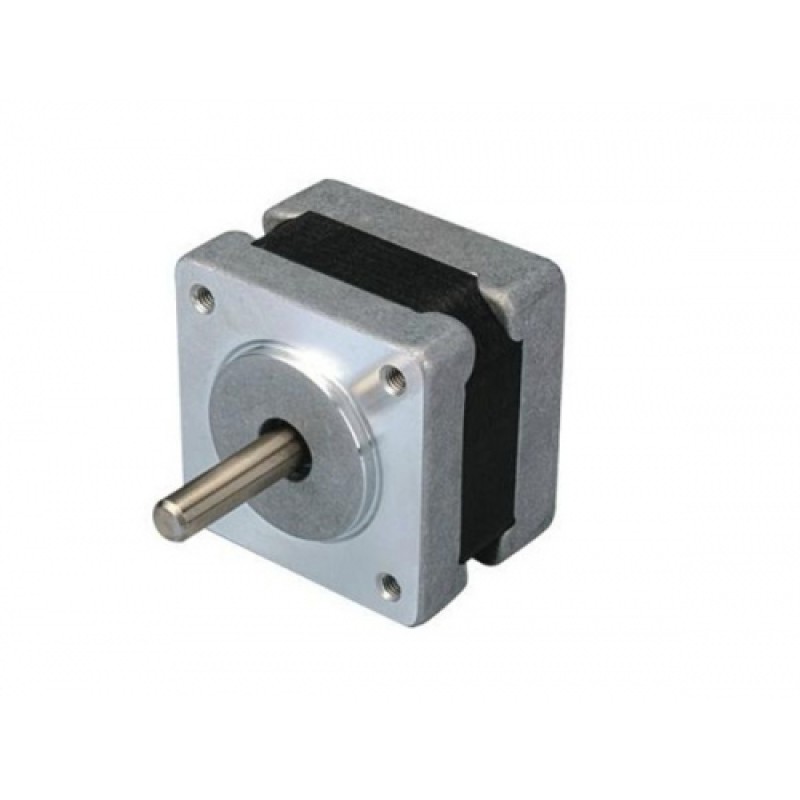

39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new

39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new
39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new
39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new
39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new
39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new
39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new  DescriptionT... Read More
0 reviews • Write a review
$56.00
Ex Tax: $56.00
  • Stock: In Stock
  • Model: 39HS02
  • Weight: 1.20kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
20HS2802A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS2802A4 SUMTOR two-phase stepper motor 20BYG NEW
$26.00
Ex Tax:$26.00
Add to Cart Add to Wish List Compare this Product
20HS2806A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS2806A4 SUMTOR two-phase stepper motor 20BYG NEW
$26.00
Ex Tax:$26.00
Add to Cart Add to Wish List Compare this Product
20HS3402A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS3402A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
20HS3406A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS3406A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
20HS4002A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS4002A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
20HS4006A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS4006A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
28BYGH501 + DQ420MA WANTAI Hybrid Stepping Set (Motor + Drive) NEW
Quickview
28BYGH501 + DQ420MA WANTAI Hybrid Stepping Set (Motor + Drive) NEW
$53.00
Ex Tax:$53.00
Add to Cart Add to Wish List Compare this Product
28BYGH501 WANTAI Hybrid Stepping Motor 28BYGH series NEW
Quickview
28BYGH501 WANTAI Hybrid Stepping Motor 28BYGH series NEW
$27.00
Ex Tax:$27.00
Add to Cart Add to Wish List Compare this Product
Tags: 39HS02

39HS02 Leadshine 2 phase stepper motor 39HS 0.065NM 1.8 degree 0.6A original brand new



Description

The 39HS02 two-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 4 motor leads.

Features

2 phase 1.8° stepping angle

NEMA 16

Holding toque of 0.22 N*m (31.2 oz-in)

High precision

Smooth movement

Low motor heating

Low movement noise

Specifications:

General

Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°C Max

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Electric

Model No.

Unit

35HS01

Step Angle

(°)

1.8

Holding Torque

N*m

0.22

Current /phase

A

0.6

Inductance /phase

mH

16±20%

Resistance /phase

Ohm

35±10%

# of leads

-

4

Rotor Innertia

g*cm2

20

Detent Torque

g*cm

122.4

Motor Weight

Kg

0.2

Motor Length L

mm

34

Applications:

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Mechanical Unit



2 phase stepper motor Lectotype List

Phase

Ideotype

Model

StallTorque (NM)

Step angle(º)

Pin count

Phase Current

Electric resistance(Ω)

Electrical inductance (mH)

Length L(mm)

Rotor inertia (g.cm²)

weight(kg)

Matching drives

Series connection

Paralleling connection

2 phase stepper

35

35HS01

0.07

1.8

4

0.4

35

8.0

28

12

0.17

M415B/DM320/M325

39

39HS02

0.065

1.8

4

0.6

15

16

34

20

0.18

M415B/DM320/M325

42

42HS02

0.22

1.8

4

0.4

12.5

21

40

57

0.24

DM320/DM422C/DM432C/
DM556/DM856/M542V2.O/
ND556/ M415B/M325

42HS03

0.34

1.8

8

0.7

1.4

4.6

4.0

48

82

0.34

57

57HS06

0.6

1.8

8

1.4

2.8

1.35

1.8

55

145

0.6

DM422C/DM432C/DM556/
DM856/M752/M542/
M860/M880A/MA550/
MA860/H850/ND556/
ND882/M415B/M325

57HS09

0.9

1.8

8

2.1

4.2

0.8

1.2

54

260

0.6

57HS13

1.3

1.8

8

2.0

4.0

1.0

2.1

76

460

1.0

57HS22

2.2

1.8

8

2.8

5.6

0.67

1.8

76

480

1.1

86

86HS35

3.0

1.8

8

2.0

4.0

1.4

3.9

65

800

2.0

DM556/DM856/M752/
M860/M880A/MA550/
MA860/H850/MA860H/
ND882/ND1182/ND2282/
M535/MD2278

86HS38

3.8

1.8

8

3.0

6.0

0.6

2.7

71

1200

2.6

86HS45

4.5

1.8

8

3.0

5.9

0.8

3.5

79.5

1400

2.3

86HS85

8.5

1.8

8

3.5

7.0

0.95

5.2

118

2800

3.8

110

110HS12

12

1.8

4

5.0

0.95

15

99

5500

5.0

MA860H/ND1182/ND2282/MD2278

110HS20

20

1.8

4

6.5

1.15

18.9

150

11000

8.4

MA860H/ND1182/ND2282/MD2278

130

130HS27

27

1.8

4

6.0

0.65

13.8

227

35000

13

ND2282/MD2278

130HS45

45

1.8

4

7.0

0.9

9.5

283

48400

19

ND2282/MD2278
