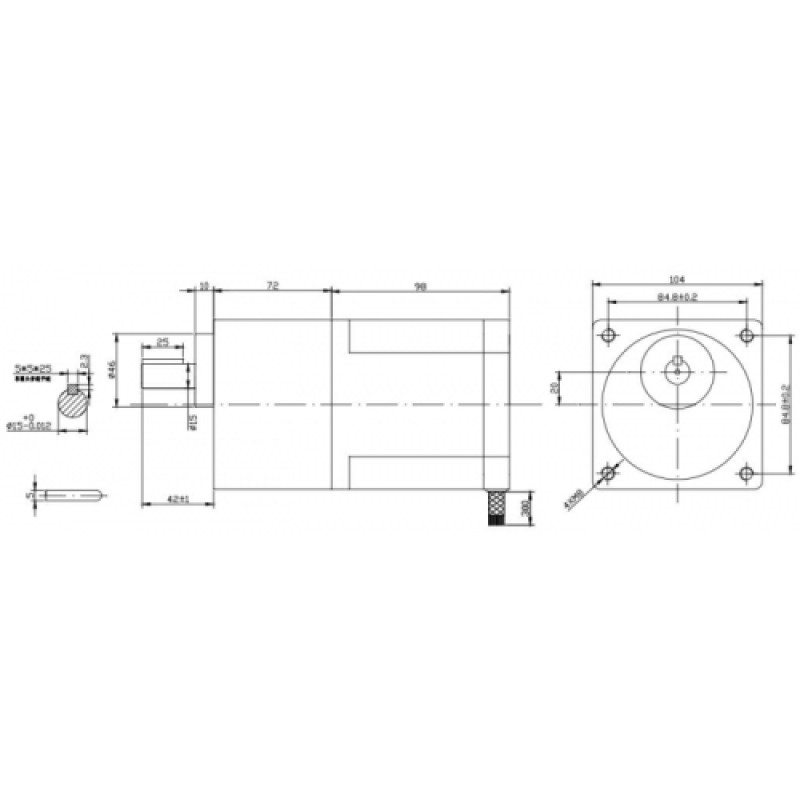

Ratio1:20 NEMA34 7A 10NM 1429oz-in L 98mm Gear Reduction Motor+Drive CNC machining 100HS9850A4-G20+MA860H
Appliaction:
Inject printers, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, engraving machine, packaging machinery, CNC numerically-controlled machine tool and transmission.
Motor Product Description:
Step Angle Accuracy: ±5%(full step, no load)
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)
Ambient Temperature: -20°C-+50°C
Insulation Resistance: 100MΩ Min.500V DC
Dielectric Strength: 500V AC for one minute
Gear Reduction Motor Specifications:
Model | 100HS9850A4-G12.5 | 100HS9850A4-G20 |
Step Angle | 1.8 | 1.8 |
Rated Current | 5A | 5A |
Rated voltage | 3.25V | 3.25V |
Resistance | 0.65ohm | 0.65ohm |
Holding Torque | 10NM | 10NM |
Inductance | 5mh/phase | 5mh/phase |
Detent torque | 24.5N.cm | 24.5N.cm |
Rotor inertia | 2500 g.cm*2 | 2500 g.cm*2 |
Motor length | 98mm | 98mm |
Lead wire | 4 NO | 4NO |
Reduction box | 104*104*72mm | 104*104*72mm |
Gear Ratio | 1:12.5 | 1:20 |
Output shaft diamete | 15mm | 15mm |
Matching Drive | AC18-80V & DC24-110V 7.8A Drive | |
Stepper Drive Specifications:
Item | Min | Typical | Max | Unit |
Power supply | 24 | - | 110 | VDC |
18 |
| 80 | VAC | |
Average output current | 2 | 2.5 | 7.8 | A |
Logic input current | 6 | 15 | 30 | mA |
Impulse response frequency | - | - | 100 | KHZ |
Pulse low level | 5 | - | 1 | μS |
Drive Wiring Description:
Signal | Function |
PUL | Pulse signal: rising edge, the pulse from low to high is to go a step angle motor |
DIR | Direction signal: TTL-level driver to change the direction |
OPTO | Optocoupler drive power |
ENA | Enable signal: block or allow the drive to work, low-level ban |
GND | DC power supply ground |
+V | DC power supply positive (typical 24VDC) |
A+ | Motor Phase A |
A- | Motor Phase A |
B+ | Motor Phase B |
B- | Motor Phase B |
