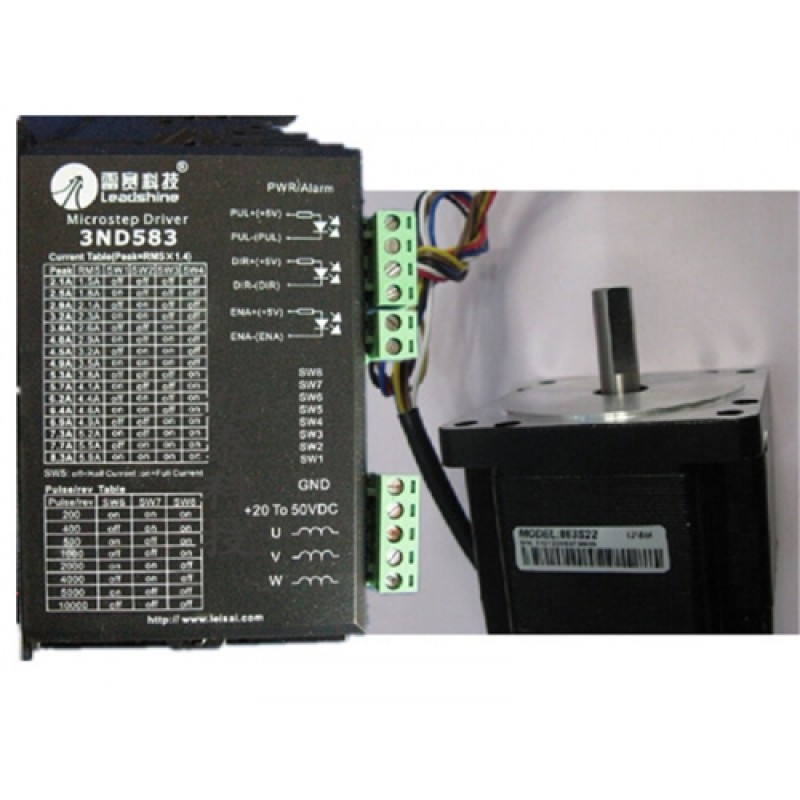

Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583

Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583
Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583
Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583
Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583
Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583
Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583863S22... Read More
$126.00
Ex Tax: $126.00
  • Stock: In Stock
  • Model: NEMA34
  • Weight: 4.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA34

Leadshine NEMA34 86mm 312oz-in 2.3N.M 20-50VDC 3phase Stepper motor Drive kits 863S22+3ND583

863S22+3ND583

Stepper Motor 863S22

General Specifications

Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°C Max

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Electric

Model No.

863S22

Step Angle

1.2°

Phase

3 Phase

Holding Torque

2.3 N.M

312 oz-in

NEME Size

NEME 34

Motor frame size

Frame 86

Current /phase

5.0 A

# of leads

6

Motor Weight

2.0 Kg

Motor Length L

73 mm

Drive 3ND583

General Introduction

The 3ND583 is a high resolution 3-phase microstepping driver based on precision current control technology. It’s suitable for driving 3-phase hybrid stepping motors from NEMA size 17 to 34. By using the advanced pure-sinusoidal current control technology, both the noise and vibration of the stepping motor have been greatly reduced, which makes the stepping motors offer servo-like performances. Compared to the 3MD560, it’s lighter and smaller, and compared to most of the microstepping drivers in the market, both driver heating and motor heating have been reduced by 15-30%.

Electrical Specifications

Phase

Series

Model

Current

Voltage

Microstep

Motor Adapter

Weight

Size

Controlling Signal

3 Phase

ND

3ND583

2.1-8.3A

20-50DCV

--

17,23,34

--

118*75.5*33

Single-ended;Differential Signal

863S22 Dimension




86 Series 3 Phase Electircal Connection
