2PH 86mm NEMA34 3A 3.4NM 486ozin77-123VAC Stepper motor Drive kits 2S86Q-03865+2M1180N

Model

2S86Q-03865

Step Angle

1.8centigrade degree±5%

Phase Current (A)

3

Holding Torque (Nm)

3.4

Damping Torque (Nm)

0.08

Winding Resistance (ohm)

1.25±10%

Winding Inductance(mH)

7.0±20%

Motor Inertia (Kg.com²)

1

Motor Length L(mm)

65

Number of Lead Wires

4

Insulation Class

B

Withstand Voltage Level

500VAC,One Minute

Max.Axial Load (N)

60

Max.Readial Load (N)

220

Operating Temperature

 -20centigrade degree~50centigrade degree

Surface Temperature Rise

Max.80centigrade degree (Rated Rhase Current after Two Phases are Connected)

Insulation Impedance

Minimum 100Mohm,500VDC

Weight (Kg)

1.7

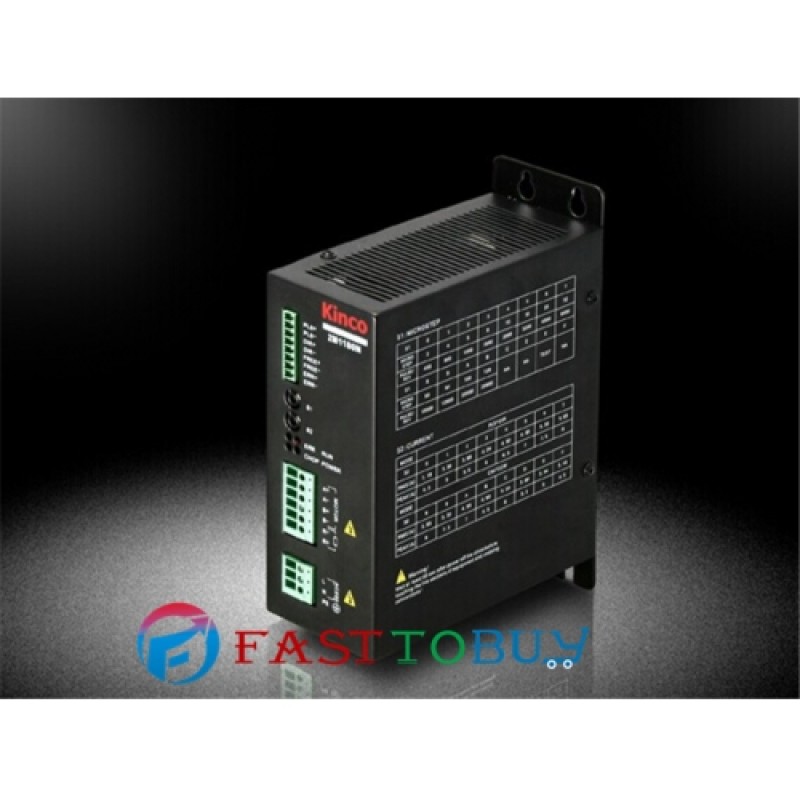

Model

2M1180N

Parameter Lable

Parameter

Value

Input Voltage

Single Phase 77VAC~123VAC,(50Hz)

Output Current

4.5A,5A,5.5A,6A,6.5A,7A,7.5A,8A

Micro Step

2/4/5/8/10/16/20/32/50/64/100/128

Input Signal

PLS/DIR/FRE Current Limit: 6~16 mA

Control Signal Mode

PLS + DIR, CW/CCW

Output Signal

Prot: ERR( Maximum Output Current: 10mA )

Protection

Overvoltage, Under Voltage, Short Circuit and Heat Protection.

Brake Mode *

Available to Connect the Power Resister. Need Custom.

Environment Parameter

Cooling Way

Fan

Environment

Operation Environment

Avoid the Environment with Great Amount of Metallic Powder, Oil Mist, or Erosive Gases.

Operation Humidity

<85%, RH

Operation Temperature

0centigrade degree~+40centigrade degree

Storage Temperature

-20centigrade degree~+70centigrade degree

Weight

1.5Kg

Dimensions

210mm×147mm×66mm

Protect Level

IP20

Function of Rotary Switch

S1,Micro-step:

S1

0

1

2

3

4

5

6

7

Micro Step

2

4

5

8

10

16

20

32

Pulse/rev

400

800

1000

1600

2000

3200

4000

6400

S1

8

9

A

B

C

D

E

F

Micro Step

50

64

100

128

NA

NA

TEST

NA

Pulse/rev

10000

12800

20000

25600

S2,Current:

Mode

PLS+DIR

S2

0

1

2

3

4

5

6

7

Rms(A)

3.18

3.54

3.89

4.24

4.6

4.95

5.3

5.65

Peak(A)

4.5

5

5.5

6

6.5

7

7.5

8

Mode

CW/CCW

S2

8

9

A

B

C

D

E

F

Rms(A)

5.65

5.3

4.95

4.6

4.24

3.89

3.54

3.18

Peak(A)

8

7.5

7

6.5

6

5.5

5

4.5
