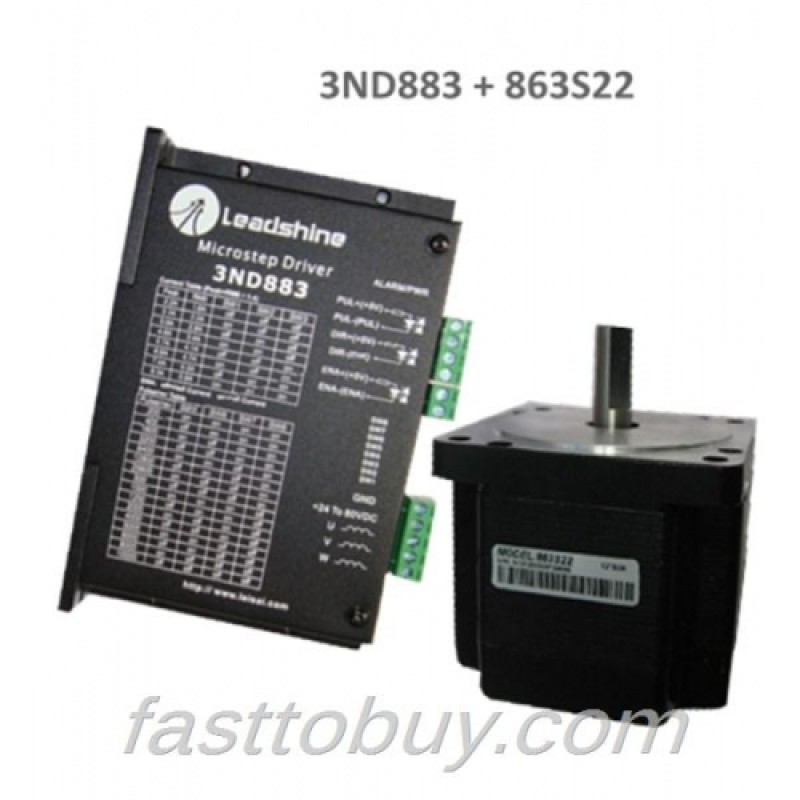

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND883 + 863S22 2.2N.m New



PLCAGE: Leadshine 3-phase Stepper Set (Drive + Motor) 3ND883 + 863S22 2.2N.m New

3ND883

Features:

*High performance, low noise and lost cost

*Low driver heating and low motor heating

*Supply voltage up to 80 VDC

*Output current up to 8.3A (RMS 5.9A)

*Input signal TTL compatible

*Automatic idle-current reduction

*Suitable for 3-phase stepping motors, including 3 lead and 6 lead motors

*Optically isolated differential input signals, pulse frequency up to 300 KHz

*16 selectable resolutions up to 25600 steps/rev

*DIP switch current setting with 8 different values

*PUL/DIR & CW/CCW modes optional

*Over-voltage, short-voltage, over-current and short-circuit protection

*Small size for easy mounting

Specifications:

Parameters

3ND883

Min

Typical

Max

Unit

Output current

2.1(1.5A RMS)

-

8.3 (5.9 RMS)

A

Supply voltage

24

68

80

VDC

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

300

kHz

Isolation resistance

500

-

-

Mohm

Applications:

Suitable for a wide range of 3-phase stepping motors from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, labeling machines, laser cutters, engraving machines, and pick-place devices, and etc. It’s extremely suitable for the applications desired with low noise, low vibration, high speed and high precision.



863S22

Features:

*3-phase hybrid step motor

*High torque design

*Standard NEMA 34 dimensions

*Delta wiring

*Optimized for microstepping

Specifications:

General



Step Angle

1.2°



Step Angle Accuracy

+5%(full step, no load)



Temperature Rise

80°CMax



Ambient Temperature

-10°C -- +50°C



Insulation Resistance

100MΩmin.500VDC



Dielectric Strength

500VAC for one minute



Shaft Radial Play

0.06 Max.(450g-load)



Shaft Axial Play

0.08 max.(450g-load)

Model No.

Step Angle

Holding Torque

Current /phase

Inductance /phase

Resistance /phase

# of leads

Rotor Inertia

Detent Torque

Motor Weight

Motor Length L



(°)

N.m

A

mH

Ohm

g.cm2

N.cm

Kg

mm



863S22

1.2

2.0

5.0

2.8

0.9

6

1200

-

2.1

73



863S42

1.2

4.0

5.0

4.5

1.35

6

2500

-

3.0

105



863S68H

1.2

6.78

3.5

20

4.5

6

3300

-

3.8

127





Matching drives:

Model

Match drives

863S22

3DM683/3DM883

863S42

3DM683/3DM883

863S68H

3DM683/3DM883

Applications:

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Other stepper sets available in PLCAGE:

3ND883 + 863S22

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND883 + 863S22 2.2N.m New

3ND883 + 863S42

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND883 + 863S42 4.2N.m New

3ND883 + 863S68H

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND883 + 863S68H 6.8N.m New
