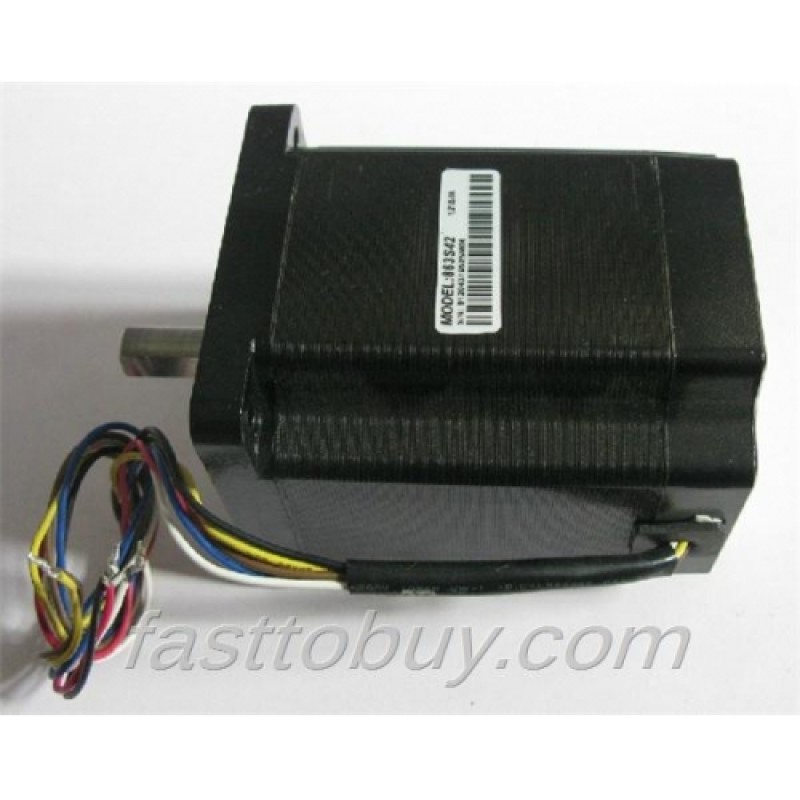

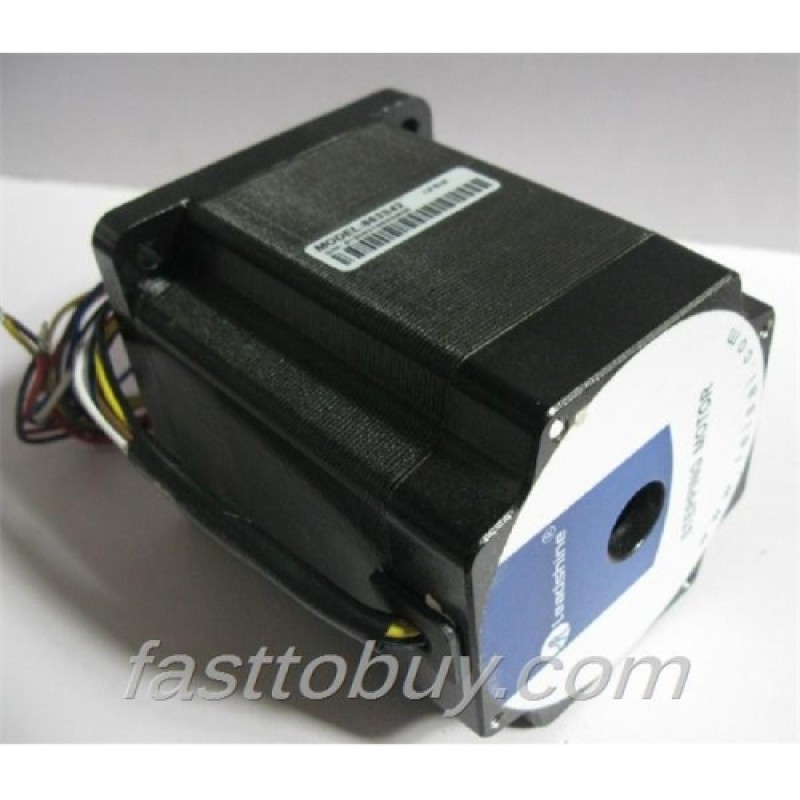

Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New

Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M NewPLCA... Read More
$78.00
Ex Tax: $78.00
  • Stock: In Stock
  • Model: NEMA34
  • Weight: 3.40kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA34
Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New

PLCAGE: Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New

Introductions:

The 863S42 three-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 6 motor leads, the motor can be connected in delta connection

Features:

*3-phase hybrid step motor

*High torque design

*Standard NEMA 34 dimensions

*Delta wiring

*Optimized for microstepping

Specifications:

General



Step Angle

1.2°



Step Angle Accuracy

+5%(full step, no load)



Temperature Rise

80°CMax



Ambient Temperature

-10°C -- +50°C



Insulation Resistance

100MΩmin.500VDC



Dielectric Strength

500VAC for one minute



Shaft Radial Play

0.06 Max.(450g-load)



Shaft Axial Play

0.08 max.(450g-load)

Model No.

Step Angle

Holding Torque

Current /phase

Inductance /phase

Resistance /phase

# of leads

Rotor Inertia

Detent Torque

Motor Weight

Motor Length L



(°)

N.m

A

mH

Ohm

g.cm2

N.cm

Kg

mm



863S22

1.2

2.0

5.0

2.8

0.9

6

1200

-

2.1

73



863S42

1.2

4.0

5.0

4.5

1.35

6

2500

-

3.0

105



863S68H

1.2

6.78

3.5

20

4.5

6

3300

-

3.8

127





Matching drives:

Model

Match drives

863S22

3DM683/3DM883

863S42

3DM683/3DM883

863S68H

3DM683/3DM883

Applications:

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Other hot items of this Leadshine 3-phase stepper motors for above applications:

573S05

Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S05 Step Angle 1.2 Degrees 5.2A 0.45N.M New

573S09

Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S09 Step Angle 1.2 Degrees 3.5A 0.6N.M New

573S15

Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S15 Step Angle 1.2 Degrees 5.8A 1.3N.M New

863S22

Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S22 Step Angle 1.2 Degrees 5.0A 2.0N.M New

863S42

Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New

863S68H

Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S68H Step Angle 1.2 Degrees 3.5A 6.78N.M New
