2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+FM860
2S86Q-05180+FM860

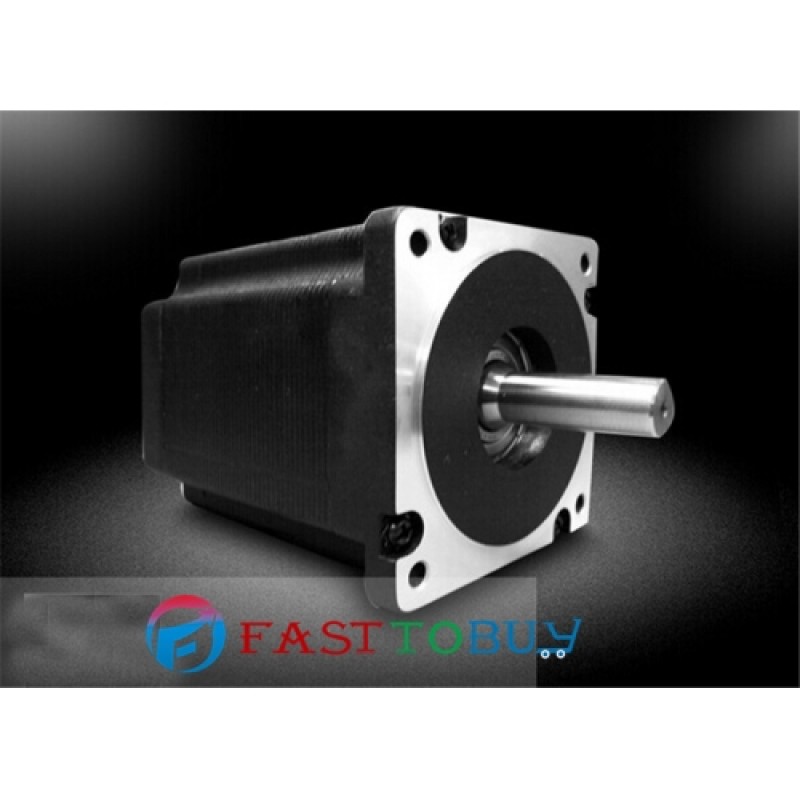

Hybrid Servo Motor 2S86Q-05180
Specifications
Model | 2S86Q-05180 |
Step Angle | 1.8centigrade degree±5% |
Phase Current (A) | 3 |
Holding Torque (Nm) | 4.5 |
Damping Torque (Nm) | 0.12 |
Winding Resistance (ohm) | 17±10% |
Winding Inductance(mH) | 16±20% |
Motor Inertia (Kg.com²) | 1.4 |
Motor Length L(mm) | 80 |
Number of Lead Wires | 4 |
Insulation Class | B |
Withstand Voltage Level | 500VAC,One Minute |
Max.Axial Load (N) | 60 |
Max.Readial Load (N) | 220 |
Operating Temperature | -20centigrade degree~50centigrade degree |
Surface Temperature Rise | Max.80centigrade degree (Rated Rhase Current after Two Phases are Connected) |
Insulation Impedance | Minimum 100Mohm,500VDC |
Weight (Kg) | 2.3 |

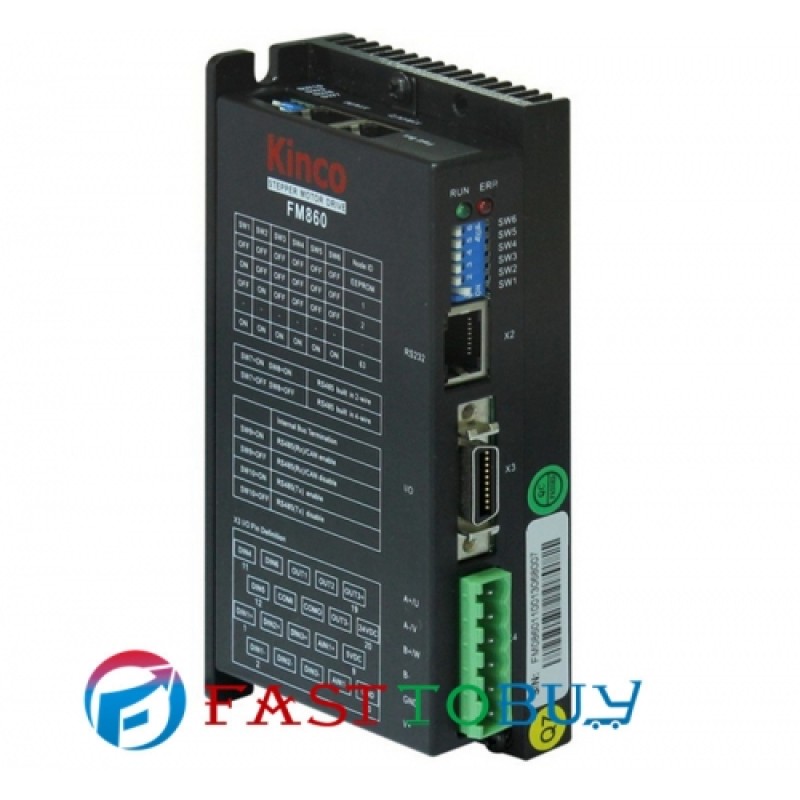

Hybrid Servo Drive FM860
Specification
Model | FM860 |
Supply Voltage | 24VDC~70VDC |
Output Current | 0~6A |
Recommend Motor | two phase and three-phase hybrid stepping motor |
Cooling Method | Natural Air Cooling |
Operating Environment | Avoid the Environment with a Great Amount of Metallic Powder, Oil Mist, or Erosive Gases |
Operating Temperature | 0centigrade degree~ +45centigrade degree |
Operating Humidity | < 85% (Non-Condensing and non-water) |
Weight | 0.36Kg |
