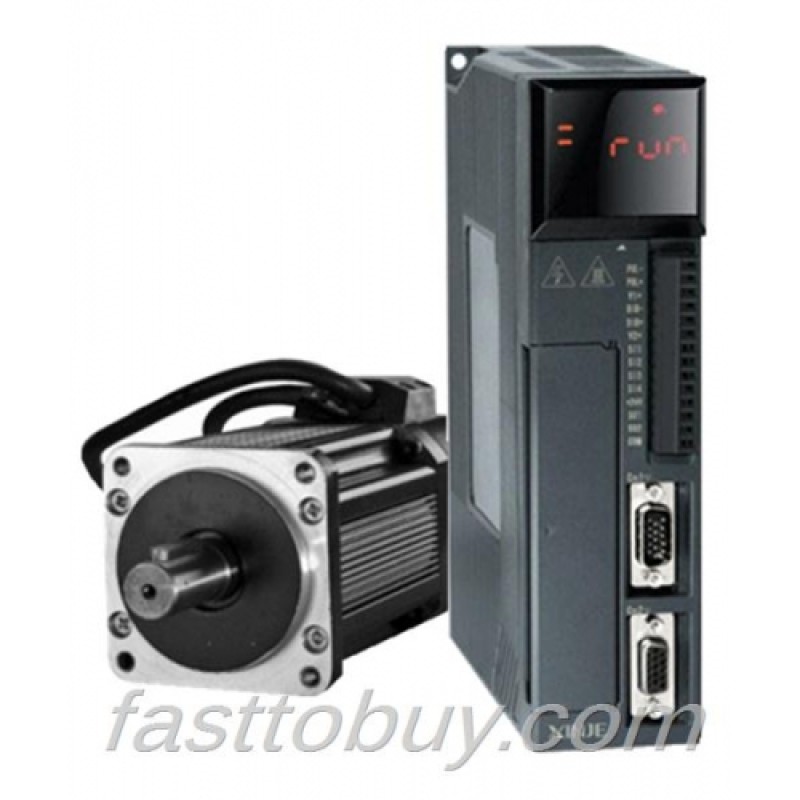

Xinje 400W 0.4KW Servo System (Motor + Drive) MS-60ST-M01330-20P4 + DS2-20P4-AS New
Features:
Motor MS-60ST-M01330-20P4:
MS series servo motor
Match DS2 series single/3-phase 0.2~0.4kw servo drive
Encoder is 2500 ppr
Drive DS2-20P4-AS:
Three control methods, seamless switching: position control, speed control, torque control
Up to 400Hz high speed response, max power 400W
5 channels digital input, 3 channels digital output
2 kinds of pulse input, 24V OC port
Two communication ports: RS232, RS485
Perfect protection, safety and reliable
Specifications:
Voltage level | 220V |
Motor type | MS-60ST-M01330_ _-20P4 |
Rated power (KW) | 0.4 |
Rated current (A) | 2.8 |
Rated speed (rpm) | 3000 |
Rated torque (N·m) | 1.27 |
Peak torque (N·m) | 3.8 |
Back EMF constant (V/krpm) | 28 |
Torque coefficient (N·m/A) | 0.5 |
Rotor inertia (Kg·m2) | 0.30×10-4 |
Winding resistor (Ω) | 5.83 |
Winding inductance (mH) | 12.23 |
Electrical time constant (ms) | 2.1 |
Weight (Kg) | 1.33 |
Encoder ppr (PPR) | 2500 |
Pole pairs | 4 |
Motor insulation level | Class B (130 °C) |
Protection level | IP64 |
Ambient temperature | 0 °C~40 °C |
Ambient humidity | Related humidity <90% (no condensation) |
Types | DS2-20P4-AS | |
Suitable motor | Type MS- | 60ST-M01330_ _-20P4 (motor code 0004) |
Radius Speed (rpm) | Rated 3000/max 4000 | |
Suitable encoder | Incremental encoder, 2500 ppr | |
Suitable motor max capacity [kW] | 0.4 | |
Continuous output current [Arms] | 2.5 | |
Max output current [Arms] | 7.5 | |
Input power supply | single phase AC220V, 50Hz | |
Control mode | Three phase or single phase full wave rectification IGBT PWM control, sine current drive mode | |
Using condition | Temperature | 0~+50 °C /-20~+85 °C |
Humidity | Under 90%RH (no condensation) | |
Vibration resistance/impact resistance | 4.9m/s2 / 19.6m/s2 | |
Structure | Foundation installation | |
