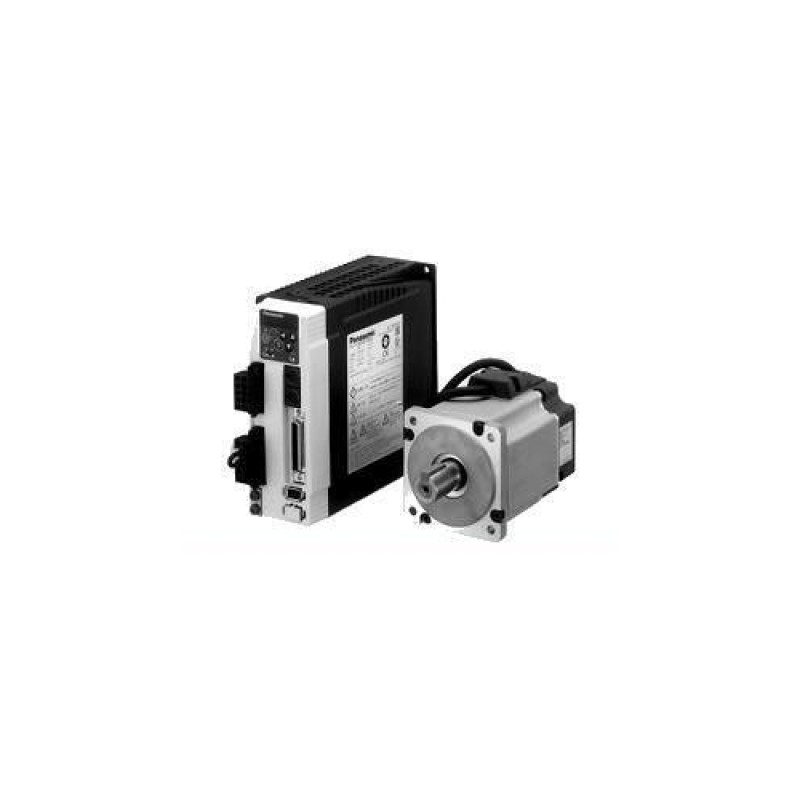

MSMD012P1U servo motor

Description:
Miniaturized design
1) to achieve miniaturization of the drive thermal analysis, compared with the past, the volume of 75%, 80% weight
2) using a thin mold steel plate punching process, a significant reduction in iron loss, the motor length shortening (70%)
Stocking and maintenance of the drive reduction model to facilitate
The current classification method, a drive adapter to a variety of motor, automatic identification
Increase the motor type, and adapt more occasions
1) Increase high-speed ultra-small inertia motor to adapt more occasions
2) for the Chinese OEM customers, an increase of low-power to increase the inertia motor
Encoder Wiring
Incremental lines; absolute line 7
Adapt to the Chinese power grid capacity
The main circuit design reference grid specially designed single-phase 200V, single / three-phase 200V drives
Using a simple, high-performance
Comes with the operating panel, to facilitate parameter adjustment, condition monitoring, fault tips and analysis, and powerful
The intelligent auto-adjust feature allows the professional, complex debugging process easy to complete
High-speed, high-response
Speed ??response frequency up to 1kHz; high-performance mechanical adaptation
Can receive up to 2Mpps pulse command
Built-in instantaneous speed observer, fast, high-resolution detection of the motor speed
Ultra-low vibration
1) adaptive filter, notch filter frequency can be automatically adjusted depending on the mechanical resonance frequency
2) two manual notch filter to suppress mechanical resonance
3) two-channel vibration suppression filter, inhibiting the vibration of mechanical remote
