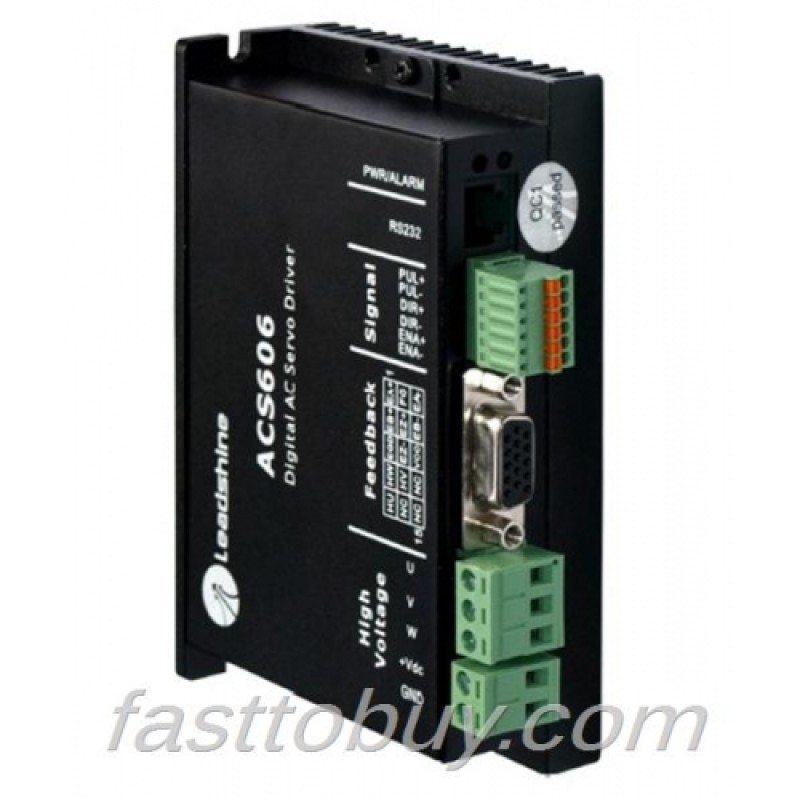

CNC brushless DC servo Drive 6A 18-60VDC Matching 10-360W Motor ACS606 Leadshine

PLCAGE: Leadshine Brushless Servo Drive ACS Series ACS606 DC18-60V Cont. 6A Peak 18A 200W for 25-200W Servo Motor New

Introductions:

Leadshine's fully digital AC servo drive ACS606 is developed with 32-bit DSP based on advanced control algorithm. Since its input commands are PUL/DIR signals, the users can upgrade stepping drives to the ACS606 without changing control systems. The ACS606 can offer high precision, high speed and high reliability performance, and widely used in inkjet printers, engraving machines, and etc. A built-in controller can be used for testing and tuning. PC based and handheld configuration & tuning tools can meet different tuning environments or requirements. The ACS606 can drive both DC brushless and AC servo motors.But it is more suitable for the DC brushless servo motors. Compare to the ACS806, the ACS606 has less I/O, thus has smaller size and higher cost-effective.

Features:

*Advance DSP current control technology

*Step & Dir, or CW/CCW control

*Input voltage: 18 - 60 VDC

*Continuous current: 6 A

*Peak current: 18A

*Capable of driving 10 - 360 W brushless servo motors

*Electronic gear rate from 1/255 to 255

*Built-in motion profile for testing with trapezoidal velocity profile

*Opto-isolated

*Small size, surface-mount technology

Specifications:

Matching motors:

Applications:

Suitable for large and medium automation machines and equipments, such as inkjet printers, engraving machines, electronic manufacturing equipments, special NC machines, pick and place devices, packing devices, and so on. Particularly adapt to the applications require high speed, high precision, and low motor noise.
