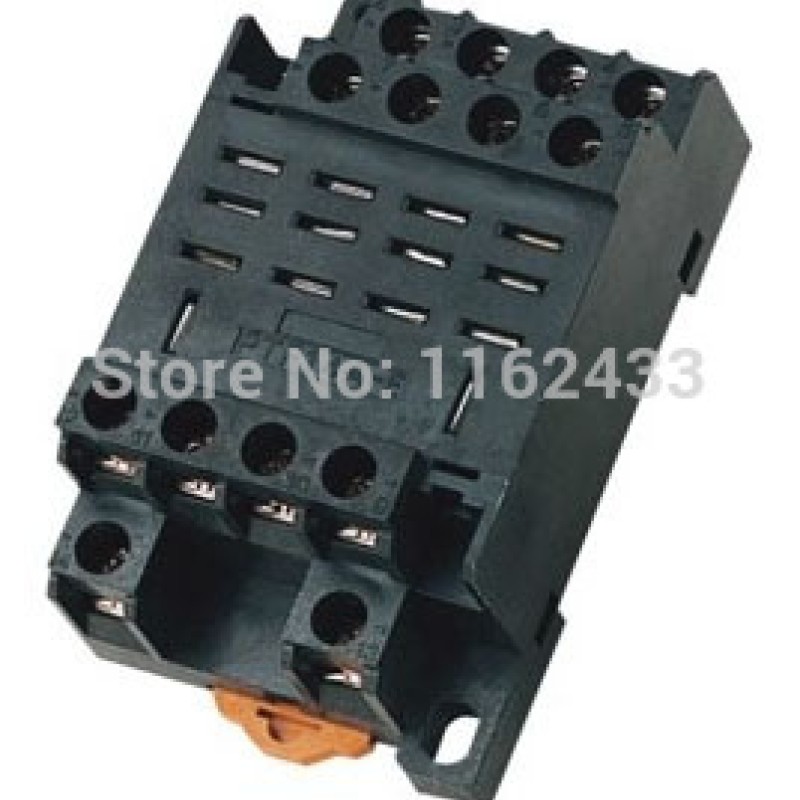

PTF14A-E OMRON RELAY BASE New

Product Description?

?Equipped with arc barrier.

Dielectric strength: 2,000 V.

Built-in diode models added to the LY Series.

Single-pole and double-pole models are applicable to operating coils with ratings of 100 ⁄ 110 VAC, 110 ⁄ 120 VAC, 200 ⁄ 220 VAC, 220 ⁄ 240 VAC, or 100 ⁄ 110 VDC.

Three-pole and four-pole models are applicable to operating coils with ratings of 100 ⁄ 110 VAC, 200 ⁄ 220 VAC, or 100 ⁄ 110 VDC.

Specifications:

Coil Rating

Single- and Double-pole Relays

Rated
voltage

Rated current

Coil
Resistance

Coil Induction
(reference value)

Must
operate
voltage

Must
release
voltage

Max.
voltage

Power
Consumption
(approx.)

50 Hz

60 Hz

Arm. OFF

Arm. ON

% of rated voltage

AC

6 V

214.1 mA

183 mA

12.2 Ω

0.04 H

0.08 H

80% max.

80% max.

110%

1.0 to
1.2 VA
(60 Hz)

12 V

106.5 mA

91 mA

46 Ω

0.17 H

0.33 H

24 V

53.8 mA

46 mA

180Ω

0.69 H

1.30 H

50 V

25.7 mA

22 mA

788ΩW

3.22 H

5.66 H

100/
110 V

11.7/
12.9 mA

10/
11 mA

3,750 Ω

14.54 H

24.6 H

0.9 to 1 VA
(60 Hz)

110/
120 V

9.9/
10.8 mA

8.4/
9.2 mA

4,430 Ω

19.20 H

32.1 H

200/
220 V

6.2/
6.8 mA

5.3/
5.8 mA

12,950 Ω

54.75 H

94.07 H

220/
240 V

4.8/
5.3 mA

4.2/
4.6 mA

18,790 Ω

83.50 H

136.40 H

DC

6 V

150 mA

40 Ω

0.16 H

0.33 H

10% min.

0.9 W

12 V

75 mA

160 Ω

0.73 H

1.37 H

24 V

36.9 mA

650 Ω

3.20 H

5.72 H

48 V

18.5 mA

2,600 Ω

10.6 H

21.0 H

100/
110 V

9.1/
10 mA

11,000 Ω

45.6 H

86.2 H

Note:

1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15% ⁄ -20% for rated currents and ±15% for DC coil resistance.

2. Performance characteristic data are measured at a coil temperature of 23°C.

3. AC coil resistance and impedance are provided as reference values (at 60 Hz).

4. Power consumption drop was measured for the above data. When driving transistors, check leakage current and connect a bleeder resistor if required.
