Product Description:

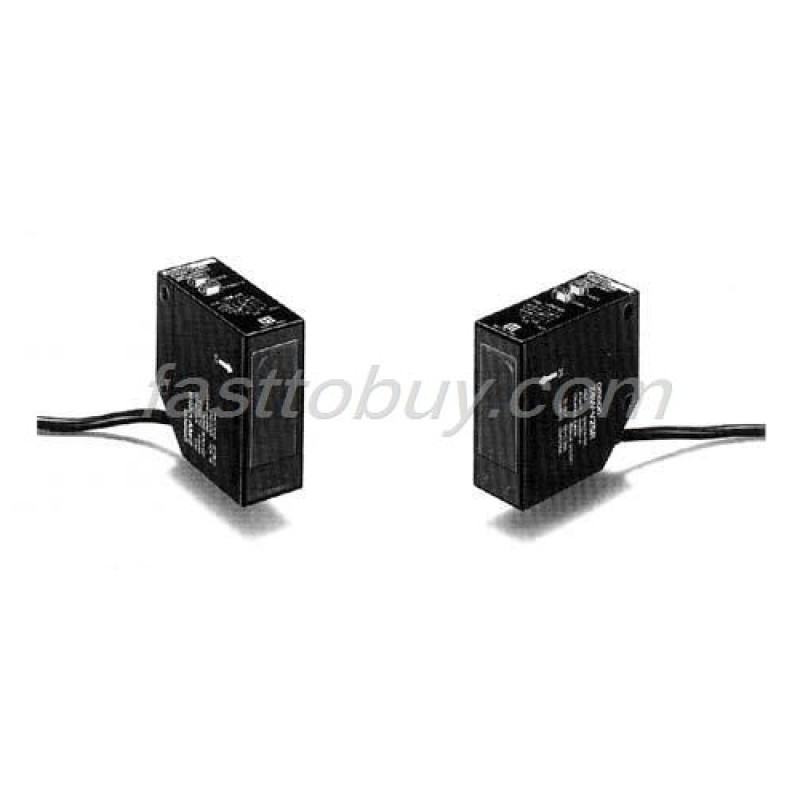

Low-cost Displacement Sensor with 10-micron Resolution with Red LED
? Measurement point: 25 mm; measurement range: ±4 mm.
? Easy adjustment, range/stable light indicators.
? Easy-to-use built-in Amp.
? High-speed response: 5 ms.
? Visible beam spot.
? Enclosure rating: IP66.
Specifications:
Measurement range | ±4 mm |
Measurement point | 25±1 mm |
Light source | Red LED |
Spot diameter | 2-mm dia. (at measurement point) |
Resolution | 10 microns (see Note. 1) |
Linearity | ±3% FS (See Note. 2) |
Response time | 5 ms (In case of white alumina ceramic. Linearity change according to object.) |
Temperature characteristics | ±0.3% FS/°C |
Warming up time | 3 min (within 1% of stable value) |
Indicators | Stability: Stable range: Lit green Operating range: Not lit Dark: Lit red Range: In range: Green Out of range: Red |
Outputs | Analog output: 4 to 20 mA/±4 mm Load impedance: 300? max. DARK output: NPN open collector 50 mA max., 30 VDC Residual voltage: 1 V max. |
External light | 3,000 ln (incandescent light) |
Power supply voltage | 12 to 24 VDC±10%: ripple (p-p) 10% max. |
Current consumption | 80 mA max. |
Vibration resistance | Destruction: 10 to 55 Hz (1.5-mm double amplitude) for 2 sweeps of 15 min each in X, Y, and Z directions |
Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
Ambient temperature | Operating: –10° to 55°C (with no icing) |
Ambient humidity | 35% to 85% (with no icing) |
Degree of protection | IP66 |
Weight | 150 g (with 5-m cable); 50 g (without cable) |
Attachments | Mounting bracket, mounting screws, resistor (250?, 0.5 W) |
