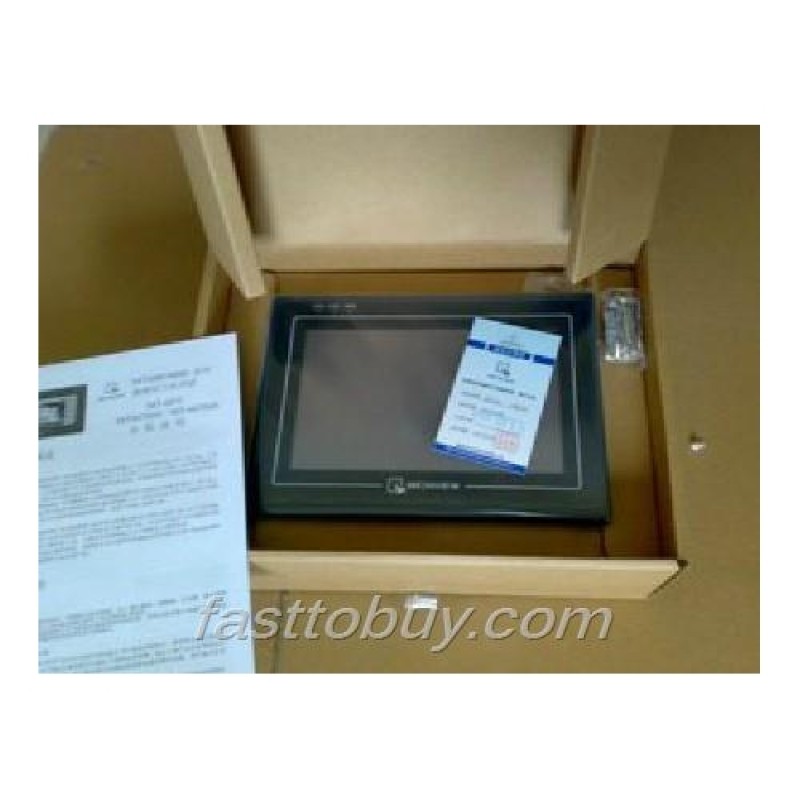

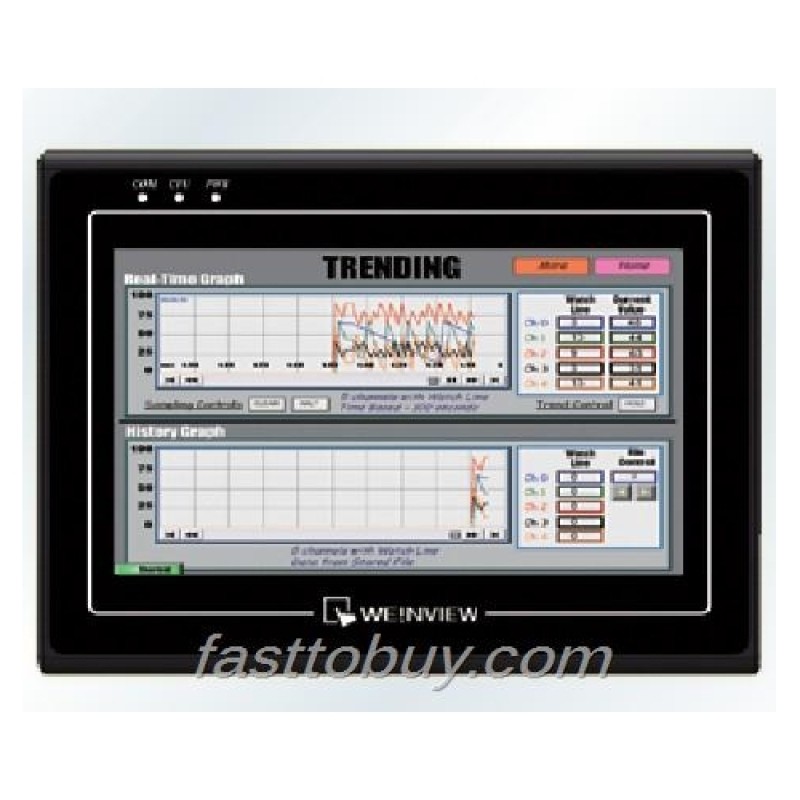

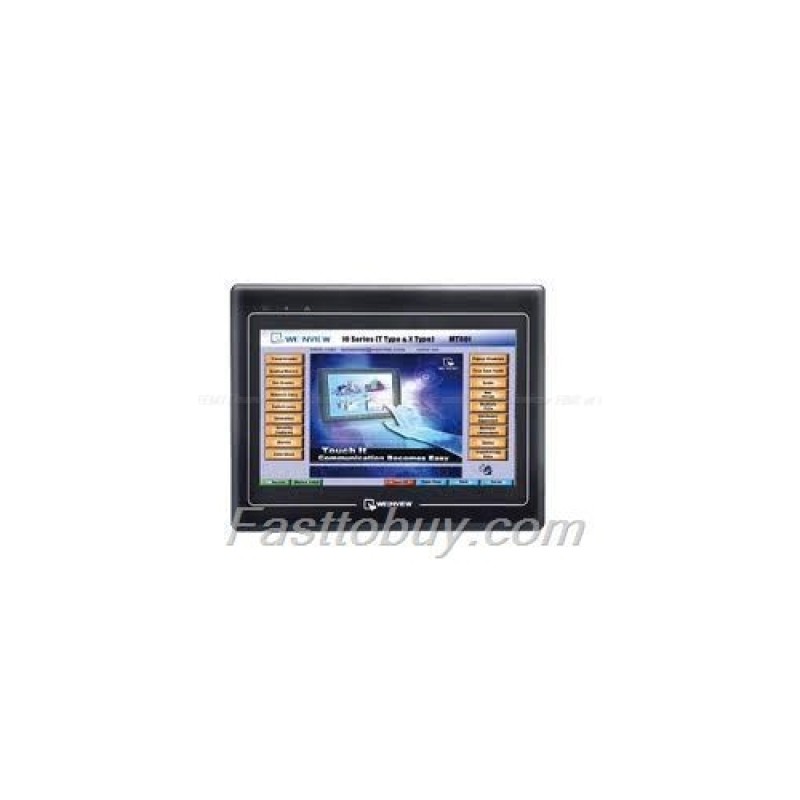

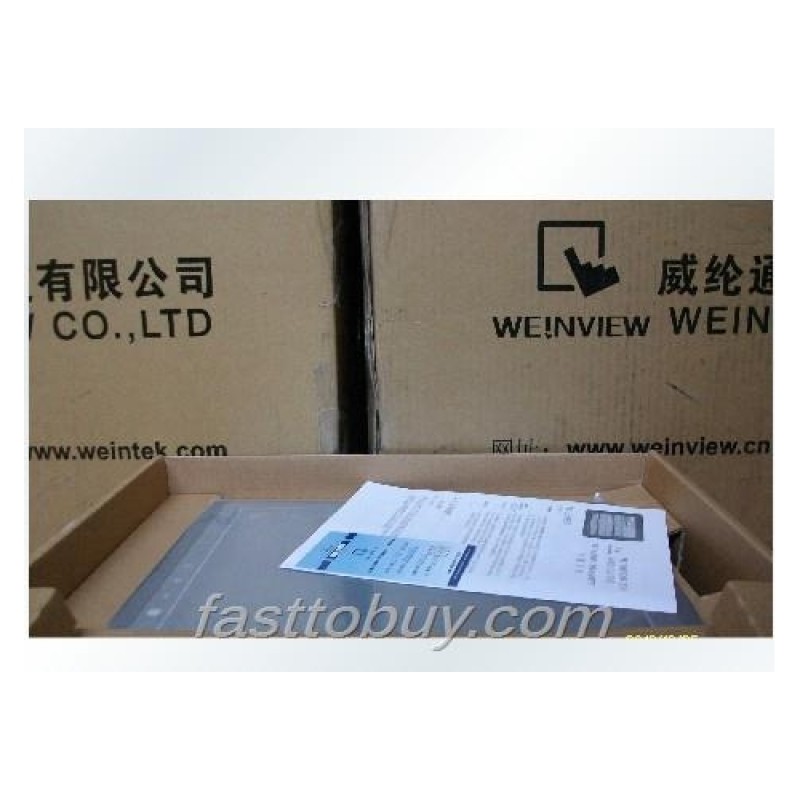

Weinview HMI TK6102IV5 10" New in box free shipping

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Weinview HMI TK6102IV5 10" New in box free shipping

Features:

Display type: 10″ TFT

Definition (WxH dots): 800 x 480

Reveal the luminance (cd/m2): 300

Contrast degree: 500:1

Type in a poor light: LED

Life-span in a poor light: 30,000 hours

Reveal color: 65536

Touch-control panel:

Touching activated precision: Active Area Length(X) ± 2%, Width(Y) ± 2%

Memory:

Flash reservoir (MB): 128

DRAM (MB): 64

Processor: 32Bit RISC 400MHz

Communication port:

SD card slot: No

USB master No

Mini USB downloads the mouth USB 2.0 x 1

Ethernet No

COM connector Com1: RS-232/RS-485 2w/4w, Com3: RS-485 2w

Sound output No

Video Input Port No

Power

Input the power 24± 20%VDC

Power power consumption 300mA@24VDC

Power isolating device Built-in

Withstand voltage 500VAC (one minute)

Insulation resistance Exceed 50MW at 500VDC

Antidetonation 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Specification

Outer cover material Industrial plastics

Size WxHxD of the appearance 271 x 212 x 50mm

Trepan the size (mm) 260 x 202

Heavy (kg) About 1.4 kg

Operating environment

Protection grade NEMA4 / IP65

Store the ambient temperature -20° ~60° C (-4° ~140° F)

Use the ambient temperature 0° ~50° C (32° ~122° F)

Use the ambient humidity 10% ~ 90% @ 40° C, have not condensed

Applications:

Weinview HMI, couple with PLC, can be used on such field as glue pudding machine, printing machinery industry, tire industry, food machinery, fryer, toughening furnace, textile industry, packaging machinery industry, charging piles, incubation industry, SCADA System, pharmaceutical machinery industry, sewage disposal monitoring system, solar photovoltaic grid-connected inverter, plastic industry, hybrid electric bus industry, screw compressor, electrical power engineering, speed frames
