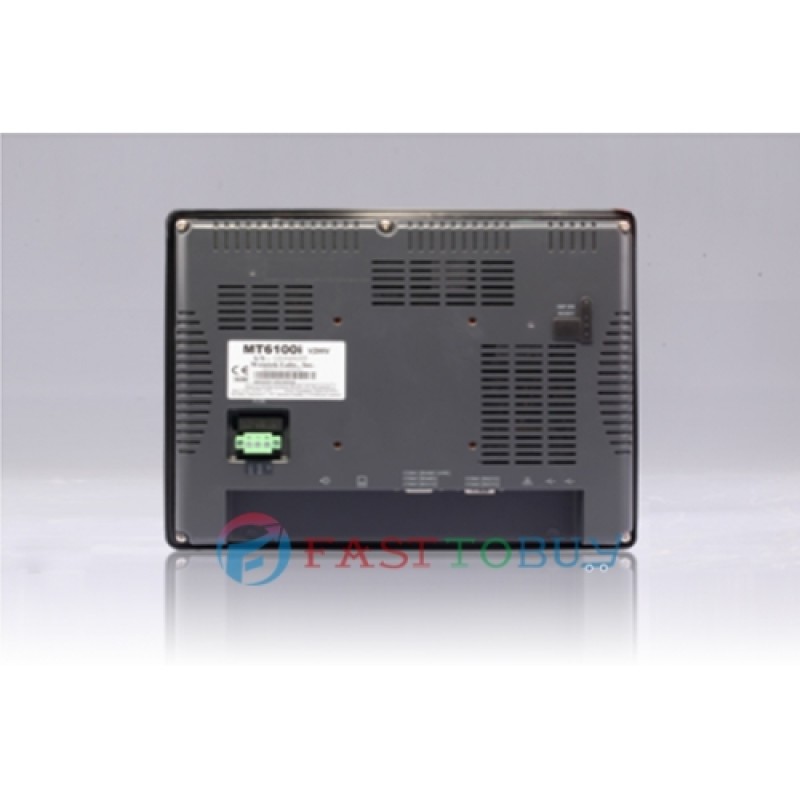

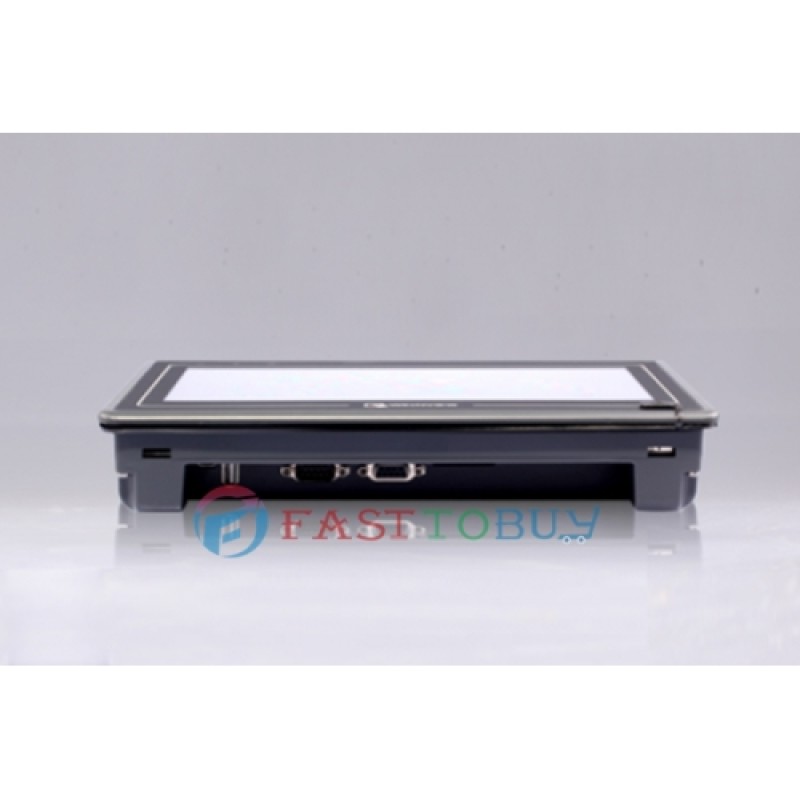

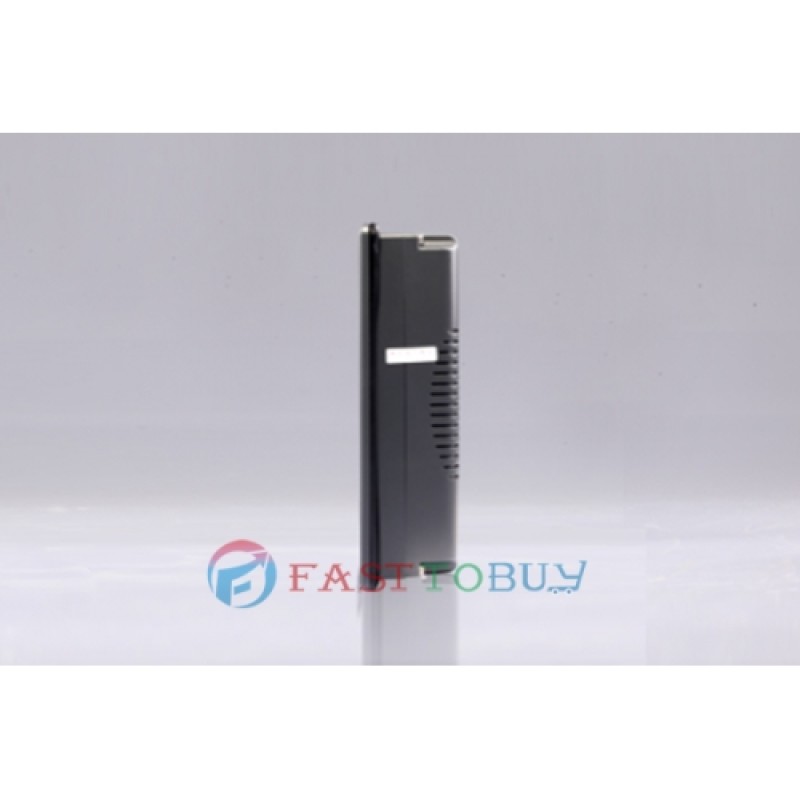

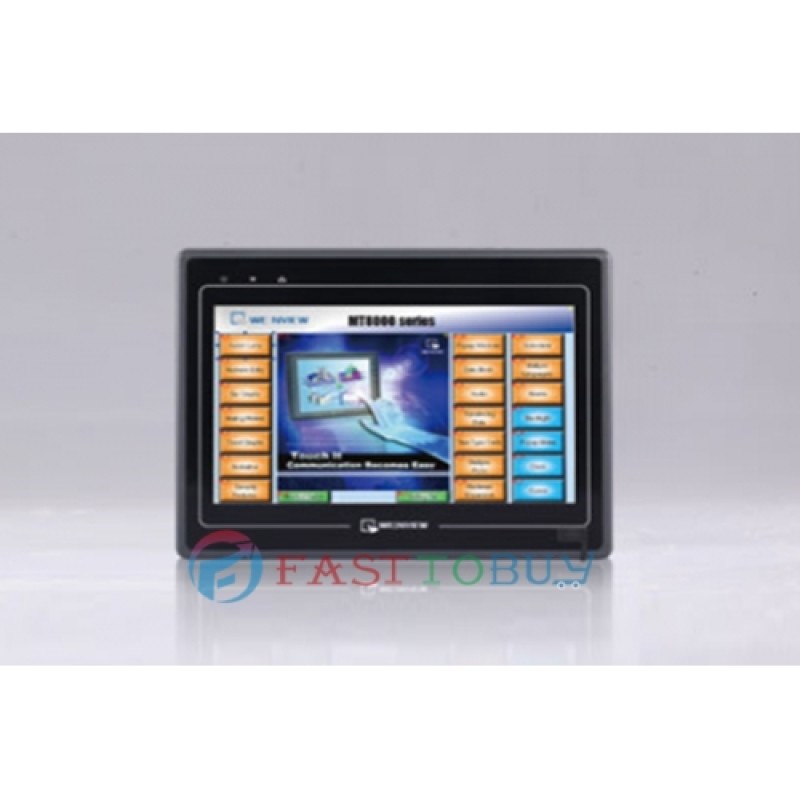

Weinview HMI MT6100IV2 10" hmi usb host New in box free shipping

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Weinview HMI MT6100IV2 10" New in box free shipping

Specifications:

*Construction: plastic molding housing

*Display: 10" 65,536 color TFT LCD

*CPU and core logic: 32Bit RISC 400MHz processo

*DRAM: 64 MB DDR2 on board

*Storage: 128 MB flash memory on board, (User project size: 16MB, Data and Event log size: 48MB)

*I/O: 3 serial ports:Com1: RS-232/RS-485 2w/4w, Com2: RS-232, Com3: RS-232/RS-485 2w 1 USB 1.1 host 1 USB 2.0 high speed device

*RTC: Built-in

*Power input: 24±20%VDC,300mA@24VDC

*Dimension (W x H x D): 271 x 212 x 50mm

*Weight: 1.4kg

*Software: EB8000 V2.0.0 or later

*10" 800x480 TFT LCD

*Fan-less cooling system

*Built-in flash memory and RTC

*NEMA4/IP65 compliant front panel

*LED Back Light

*One USB Host and one USB client port

*SD card slot

*Power Isolator inside

 LCD Display:

Touch screen:

*Type: 4-wire, analog resistive

*Resolution: continuous

*Light transmission: above 80%

*Life: 1 million activation minimum

Environmental Specifications:

*Operating temperature: 0° ~ 45°C (32° ~ 113°F)

*Storage temperature: -20° ~ 60°C (-4° ~ 140°F)

*Relative humidity: 10% ~ 90% @ 40°C, non-condensing

*Shock (operation): 10 to 25Hz(X,Y,Z direction 2G 30minutes)

*CE/FCC?Complies with EN 55022:2006,Class A

EN 61000-3-2:2006

EN 61000-3-3:1995+A1:2001+A2:2005

*Front panel meets NEMA4 / IP65

Applications:

Weinview HMI, couple with PLC, can be used on such field as glue pudding machine, printing machinery industry, tire industry, food machinery, fryer, toughening furnace, textile industry, packaging machinery industry, charging piles, incubation industry, SCADA System, pharmaceutical machinery industry, sewage disposal monitoring system, solar photovoltaic grid-connected inverter, plastic industry, hybrid electric bus industry, screw compressor, electrical power engineering, speed frames

Schematic diagram
