- Stock: In Stock

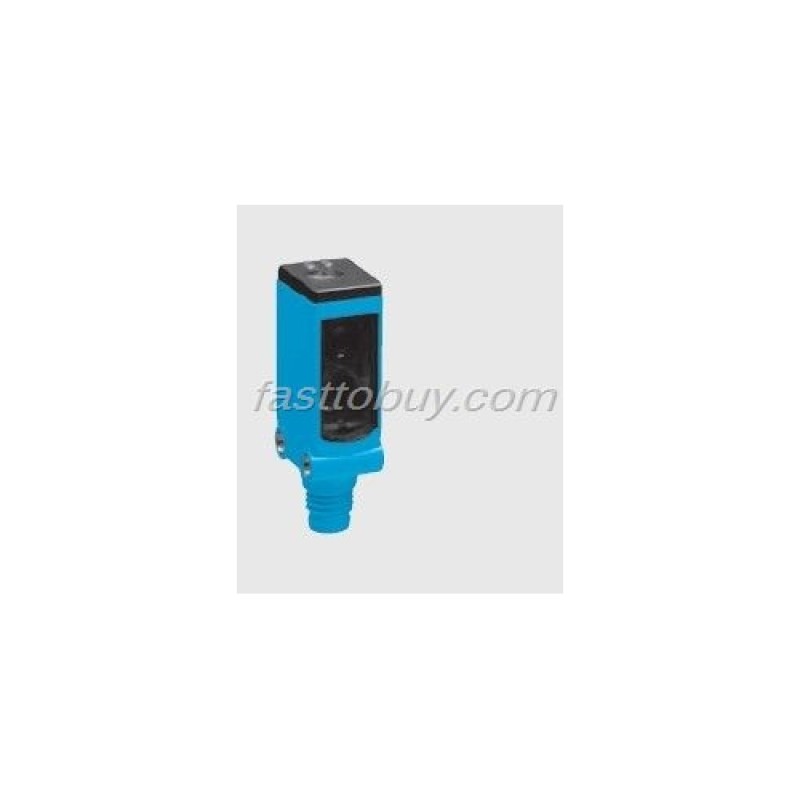

- Model: WTB4S-3P1361
- Weight: 0.02kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:
The Highly accurate adjustment of the scanning distance with 5-turn potentiometer
Outstandingly visible and tightly defined light spot
Robust mounting thanks to M3 metal bushes
Specifications:
Scanning distance typ. max. | 4 ... 180 mm | |
Operating distance | 10 ... 180 mm | |
Adjustment of operating distance | Potentiometer, 5 revolutions | |
Light source, light type | Pinpoint LED, red light, 650 nm1) | |
Light spot diameter | 6.5 mm at 70 mm distance | |
Supply voltage Vs | DC 10 ... 30 V2) | |
Ripple | < 5 Vss3) | |
Power consumption | ≤ 30 mA4) | |
Switching outputs | NPN, Q | |
PNP, Q | ||
PNP antivalent | ||
Switching mode | Dark-switching | |
Light-switching | ||
Complementary | ||
Output current Iamax | ≤ 100 mA | |
Response time | < 0.5 s5) | |
Switching frequency | 1,000 Hz6) | |
Connection type | Cable with plug, PVC, 2 m7) | |
Connector, M8, 3-pin | ||
Connector, M8, 4-pin | ||
Cable with plug, M8, 3-pin, PVC, 100 mm7) | ||
Circuit protection | Vs connections reverse-polarity protected | |
Enclosure rating | IP 66, IP 67 | |
Ambient temperature operation | -40 °C ... +60 °C | |
Ambient temperature storage | -40 °C ... +75 °C | |
Weight | Ca. 20 g | |
Housing material | Bayblend, PMMA |
Note:
1) Average service life 100,000 h at Ta = +25 °C
2) Limit values
3) May not exceed or fall short of Vs tolerances
4) Without load
5) Signal transit time with resistive load
6) With light/dark ratio 1:1
7) Do not bend below 0 °C
