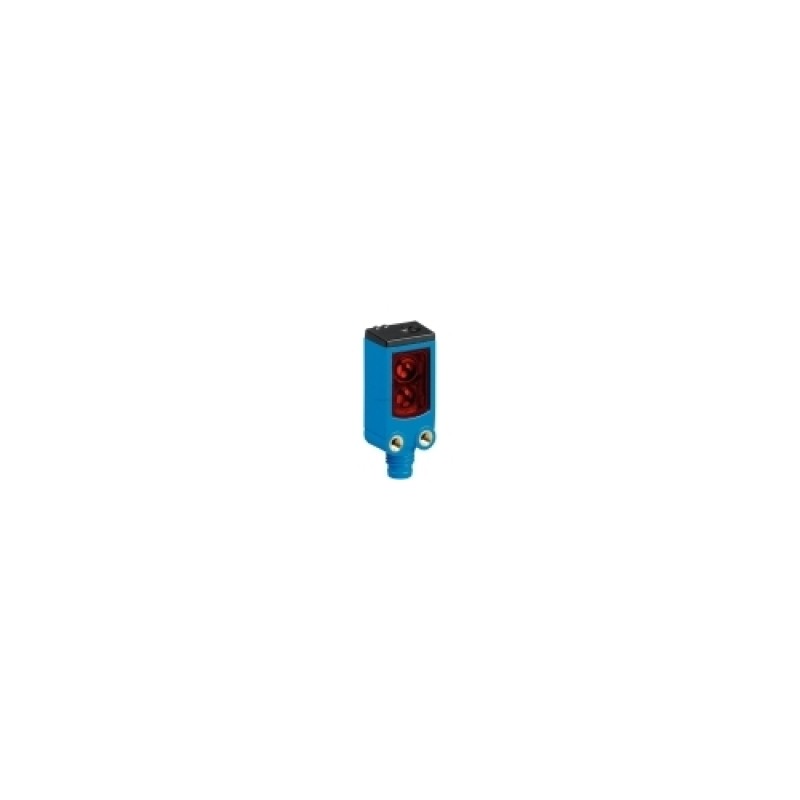

WTB4-3P1161 SICK Miniature photoelectric switch NEW

Features

Dimensions (W x H x D)::

16 mm x 39.5 mm x 12 mm

Sensing range max.:

4 mm ... 150 mm

Sensing range:

15 mm ... 150 mm

Housing desig (light emission):

Flat

Light source:

PinPoint LED 1)

Type of light:

visible red light

Wave length:

650 nm

Adjustment:

adjustable

Sensitivity adjustment:

Adjustable potentiometer, 5-turn

Sensor/detection principle:

Photoelectric proximity sensor, Background suppression

Light spot (distance):

7 mm (50 mm)

1)Average service life 100,000 h at Ta = +25 °C

Mechanics/electronics

Enclosure rating:

IP 67

IP 66

Supply voltage:

10 V DC ... 30 V DC 1)

Residual ripple:

< 5 Vpp 2)

Power consumption:

≤ 30 mA 3)

Switching output:

PNP, light/dark-switching, Complementary

Output current Imax.:

≤ 100 mA

Response time:

< 0.5 ms 4)

Switching frequency:

1,000 Hz With light/dark ratio 1:1

Connection type:

Cable, 4-wire 2 m 5)

Cable material:

PVC

Conductor cross-section:

0.14 mm2

Cable diameter:

3.4 mm

Protection class:

III

Circuit protection:

A

C

D 6) 7) 8)

Weight:

30 g

Housing material:

ABS

Optics material:

PMMA

Ambient temperature, operation:

-40 °C ... 60 °C

Ambient temperature, storage:

-40 °C ... 75 °C

1)Limit values 2) May not exceed or fall short of VS tolerances 3) Without load 4) Signal transit time with resistive load 5) Do not bend below 0 °C 6) A = VS connections reverse-polarity protected 7) C = interference suppression 8) D = outputs overcurrent and short-circuit protected
