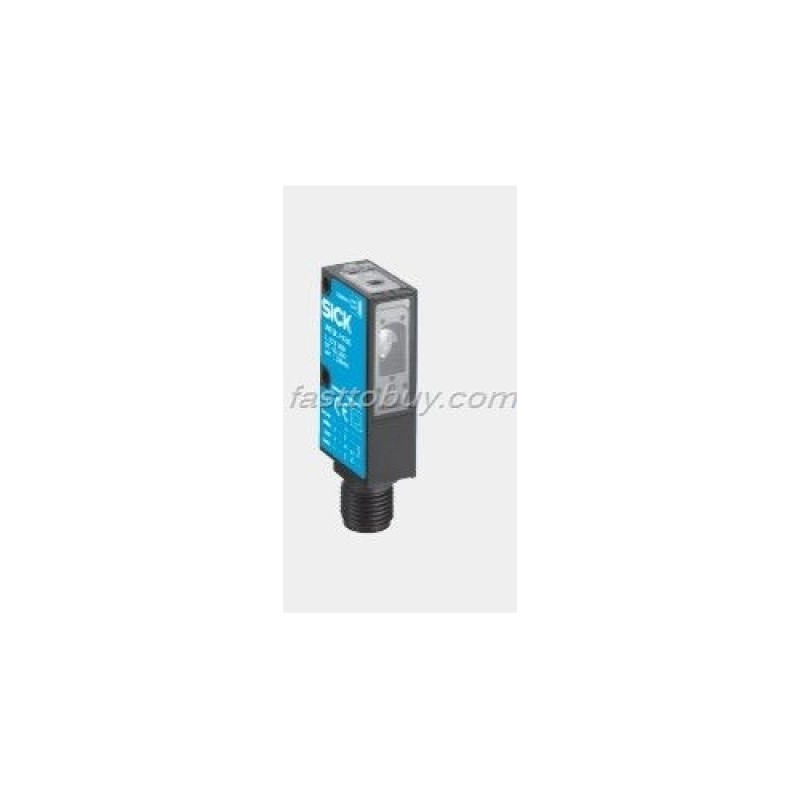

WT9L-P430 SICK Laser Photoelectric switch NEW

Product description:

Laser red light, class 2

Background suppression adjustable

Switching frequency 1000/s

Compact housing made of ABS

Specification:

Operating distance :30 ... 150 mm1)

Adjustment of operating distance :Potentiometer

Light source, light type: Laser diode, Laser, red light2)

Laser protection class: 2 (EN 60825-1/CDRH 1040.10)

Light spot diameter :< 0.5 mm at 60 mm distance

Supply voltage Vs: DC 10 ... 30 V3)

Ripple :< 5 Vpp4)

Power consumption :< 35 mA5)

Switching outputs: NPN antivalent PNP antivalent

Signal voltage PNP HIGH / LOW :Vs - < 2 V / approx. 0 V

Signal voltage NPN HIGH / LOW :Vs / < 2 V

Output current Iamax :< 100 mA

Response time :< 0.6 ms6)

Switching frequency :1,000 Hz7)

Connection type :Connector, M8, 4-pin Connector, M12, 4-pin

VDE protection class 8):?

Circuit protection ?Vs connections reverse-polarity protected/ All outputs short-circuit protected/ Interference suppression

Enclosure rating? IP 67, IP 69K

Ambient temperature? operation -10 °C ... +50 °C

Ambient temperature ?storage -25 °C ... +70 °C

Weight ?Ca. 20 g

Housing material ?ABS

1) Object with 90 % remission (based on standard white to DIN 5033)

2) Average service life 50,000 h at Ta = +25 °C

3) Limit values

4) May not exceed or fall short of Vs tolerances

5) Without load

6) Signal transit time with resistive load

7) With light/dark ratio 1:1

8) Reference voltage 50 V DC
