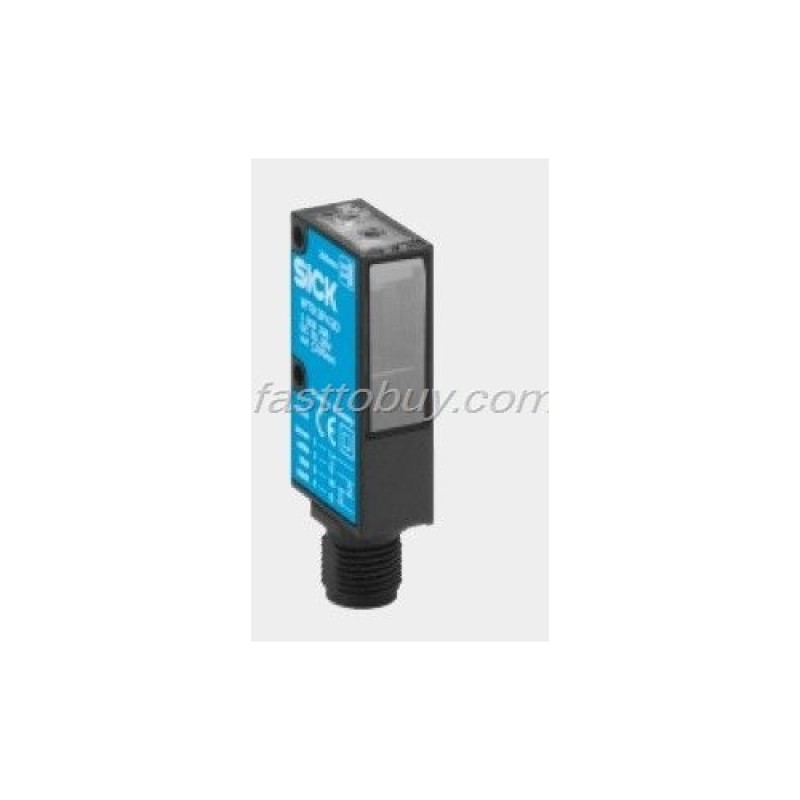

WT9-2P430 SICK Small photoelectric switch NEW

Product Description:

LED light source, visible red light

Background suppression

Adjustable scanning distance

Switching frequency 1500/s

Outputs short-circuit protected

Specifications:

Scanning distance adjustable1): 30...250 mm

Scanning range :5...250 mm

Supply voltage VS2) :10. . . 30 V DC

Ripple3): ≤ 5 VSS

Current consumption4): ≤ 40 mA

Light source: LED, visible red light5)

Light spot size :15 x 15 mm at 200 mm

Switching outputs Q and Q :PNP NPN

Signal voltage HIGH: VS – 2.9 V VS

Signal voltage LOW6) :Approx. 0 V ≤ 1.5 V

Output current IA max: ≤ 100 mA

Response time7) :≤ 333 μs

Switching frequency max.8) :1500/s

Connection types: Connection cable, 2 m Cable, 120 mm, with plug M 12, 4-pin

Plug M 12, 4-pin Plug M 8, 4-pin

VDE protection class9) :?

Enclosure rating IP ?67

Circuit protection10)? A, B, C

Ambient temperature TA11)? Operation – 40...+ 60 °C Storage – 40...+ 75 °C

Weight?

with connection cable 2 m/120 mm ?Approx. 80 g

with equipment plug M 12/M 8, 4-pin ?Approx. 20 g

1) Object with 90 % remission (referred to standard white DIN 5033)

2) Limit values

3) Must be within VS tolerances

4) Without load

5) Average service life at room temperature 100,000 h at TA = + 25 °C

6) At TA = + 25 °C and 100 mA output current

7) With resistive load

8) With light/dark ratio 1:1

9) Reference voltage 50 V

10) A = supply connections reverse polarity protected

B = outputs short-circuit protected

C = interference suppression

11) Do not bend below 0 °C
