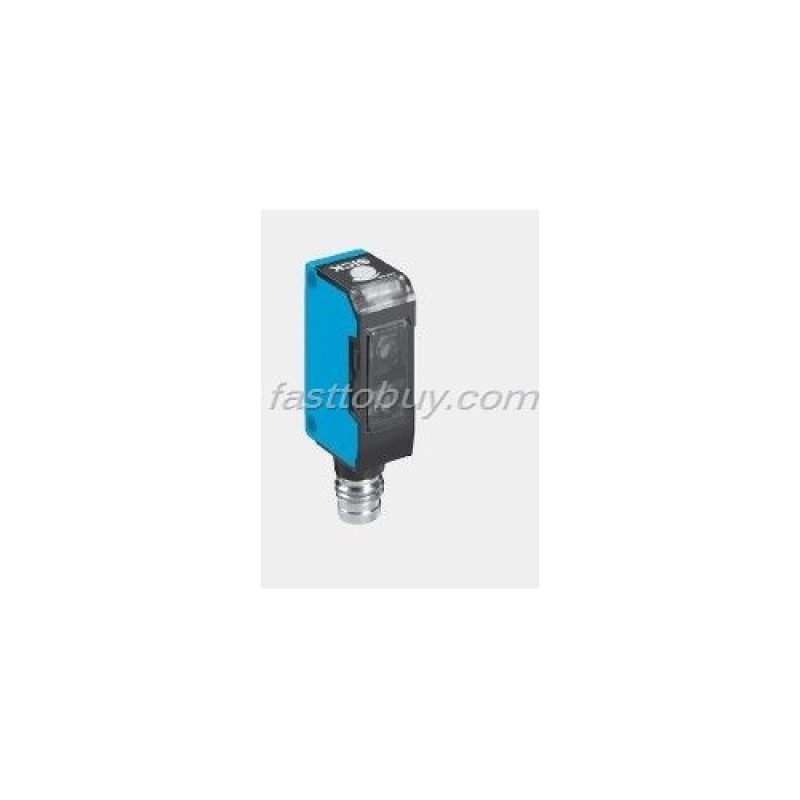

WT150-N460 SICK Miniature photoelectric switch NEW

Product Description:

With background suppression (BGS), consequently reliable detection of dark objects in front of a light background

Switching point largely independent of object colour and surface

Scanning distance can be adjusted stepless, scanning distance adjustment (5 revolutions)

Specifications:

Scanning distance typ. max:2 ... 100 mm1)

Adjustment of operating distance :Potentiometer, 5 revolutions

Light source, light type: LED, Red light2)

Light spot diameter :Approx. 4 mm at 40 mm distance

Angle of dispersion: Ca. 5 °

Supply voltage Vs: DC 10 ... 30 V3)

Ripple: ± 10 %4)

Power consumption :≤ 20 mA5)

Switching outputs: NPN: open collector: Q PNP: open collector: Q

Switching mode: Light-/dark-switching via L/D control cable

+Vs = light-switching

0 V = dark-switching6)

Output current Iamax :≤ 100 mA

Response time: ≤ 0.5 ms7)

Switching frequency :1,000 Hz8)

Connection type: Cable, PVC, 2 m9)

Connector, M8, 4-pin

VDE protection class :?10)

Circuit protection ?Vs connections reverse-polarity protected/ In-/outputs short-circuit protected/ Interference suppression / Outputs overcurrent and short-circuit protected

Enclosure rating? IP 67

Ambient temperature operation? -25 °C ... +55 °C

Ambient temperature storage ?-40 °C ... +75 °C

Weight Ca. 44 g Ca. 7 g

Housing material? ABS, PC

Included with delivery? Mounting bracket BEF-W150-A

1)Object with 90 % remission (based on standard white to DIN 5033). Scanning distance control set to MAX

2) Average service life 100,000 h at Ta = +25 °C

3) Limit values

4) May not exceed or fall short of Vs tolerances

5) Without load

6) Control wire must be connected

7) Signal transit time with resistive load

8) With light/dark ratio 1:1

9) Do not bend below 0 °C

10) Reference voltage 50 V DC
