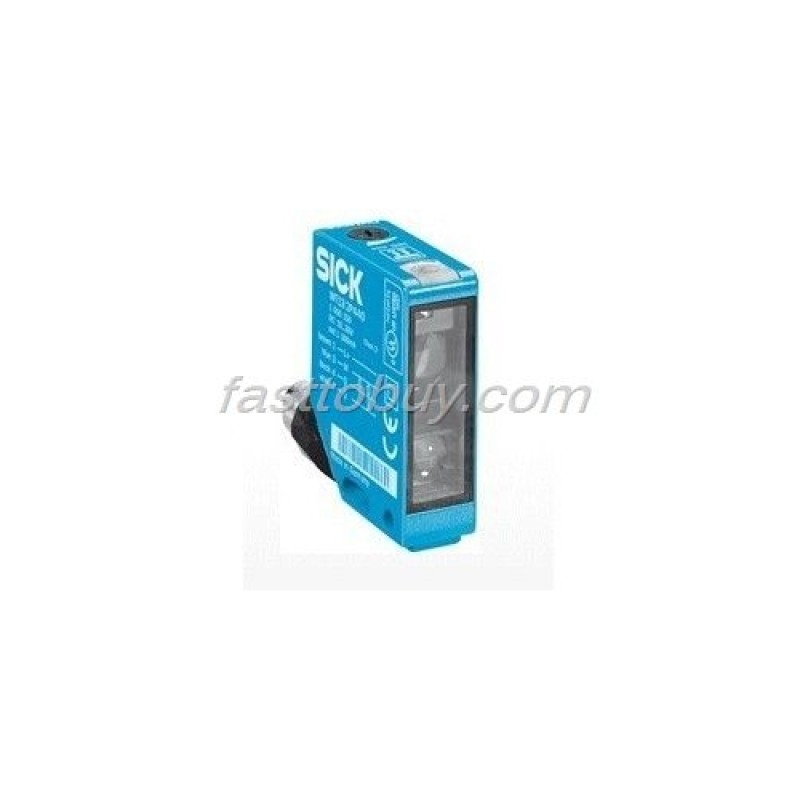

- Model: WT12-2N430
- Weight: 0.12kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:
•Red light; consequently, fast alignment is possible
•Insensitive to external light sources, i.e., increased operating reliability
•M12 plug rotatable by 90°, or 2 m/5 m cable
•Adjustable background suppression
Product features | |
Sensing range min ... max: | 20 mm ... 250 mm |
Light source: | LED |
Type of light: | Red light |
Light spot diameter: | 10 mm at 200 mm distance |
Laser: | Red light |
Sensing range max.: | 20 mm ... 250 mm |
Adjustment:: | Potentiometer |
| |
Technical data | |
Design: | cuboid |
Dimensions (W x H x D): | 15 mm x 49 mm x 41.5 mm |
Supply voltage min ... max: | DC 10 ... 30 V 1) |
Ripple: | ≤ 5 Vpp |
Power consumption: | ≤ 40 mA |
Switching output: | NPN antivalent |
Output current max.: | ≤ 100 mA |
Response time: | ≤ 330 µs |
Switching frequency: | 1,500 Hz |
Connection type: | Connector, M12, 4-pin |
Circuit protection: | VS connections reverse-polarity protected / Output Q and Q not short-circuit protected / Interference suppression |
Enclosure rating: | IP 69K |
Ambient operation temperature, min ... max: | -40 °C ... +60 °C |
Ambient storage temperature, min ... max: | -40 °C ... +75 °C |
Weight: | ca. 120 g |
Housing material: | die-cast zinc |
Series: | W12-2 |
1)Limit values | |
