- Stock: In Stock
- Model: WS100-P343
- Weight: 0.05kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:

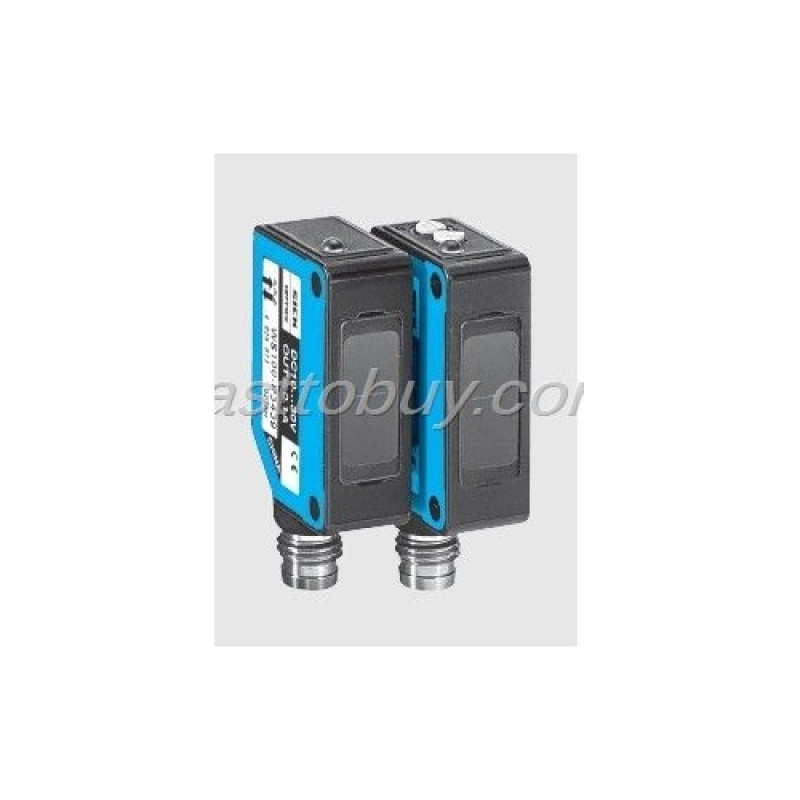

Slotted masks for detecting small parts or for positioning jobs
Sensitivity adjustable
Specifications:
Scanning range, max. typical | 15 m |
Operating range | 12 m |
Operating range with mask 2.0 m | 4.0 m |
Operating range with mask 1.0 m | 2.0 m |
Operating range with mask 0.5 m | 1.0 m |
Sensitivity, adjustable | Potentiometer, 270° |
Light source 1), light type | LED, visible red light |
Light spot diameter | Approx. 650 mm at 12 m |
Angle of dispersion, sender | Approx 3.1° |
Receiver reception angle | Approx. 15° |
Supply voltage VS 2) | 10 ... 30 V DC |
Ripple 3) | ±10 % |
Current consumption 4) sender/receiver | ≤ 15 mA/≤ 20 mA |
Switching outputs | PNP, open collector: Q |
NPN, open collector: Q | |
Switching mode, adjustable (WE 100) | Light-/dark-switching via rotary switch 5) |
Output current IA max. | 100 mA |
Response time 6) | ≤ 0.5 ms |
Max. switching frequency 7) | 1000/s |
Connection types | cable WS 100 PVC, 2 m 8); 2 x 0.18 mm2, Ø 3.8 mm |
cable WE 100 | PVC, 2 m 8); 3 x 0.18 mm2, Ø 3.8 mm |
plug | M8, 3-pin |
plug | M8, 4-pin |
VDE protection class | III |
Enclosure rating | IP 65 |
Circuit protection 9) | WS 100 A |
WE 100 | A, B, D |
Ambient temperature TA | Operation –25 ... +55 °C |
Storage –40 ... +70 °C | |
Weight | with cable 2 m Sender/receiver each approx. 53 g |
with plug M8 | Sender/reveiver each approx. 9 g |
Housing material | Housing: ABS; Optic: PC |
1) Average service life 100,000 h at TA = +25 °C
2) Limit values
3) May not exceed or fall short of VS tolerances
4) Without load
5) L = light-switching, D = dark-switching
6) Signal transit time with resistive load
7) With light/dark ratio 1:1
8) Do not bend below 0 °C
9) A =VS connections reverse-polarity protected
B=Inputs and outputs reverse-polarity protected
D=Outputs overcurrent and short-circuit protected
