- Stock: In Stock

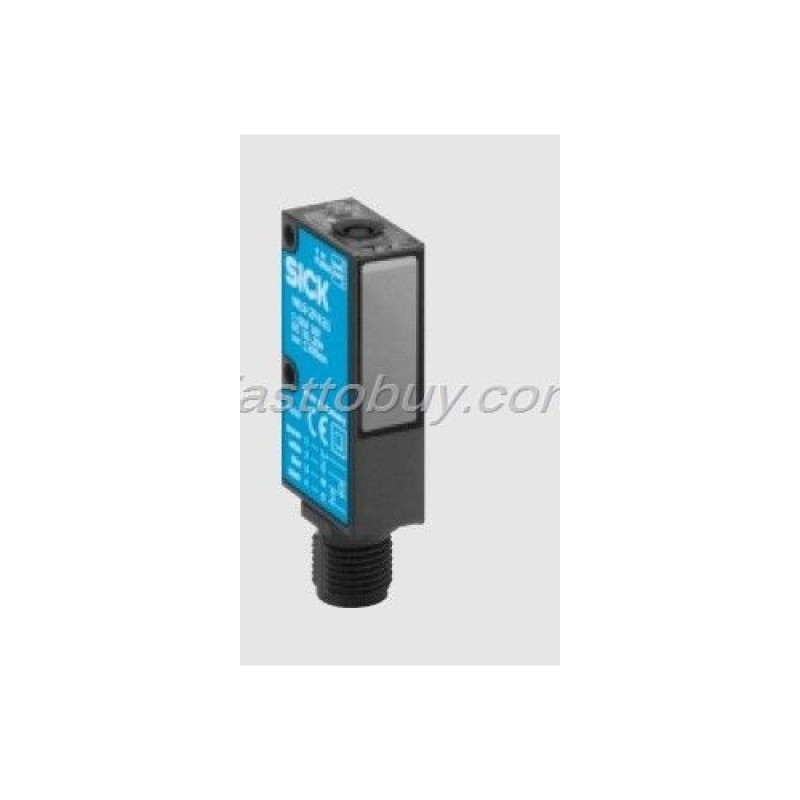

- Model: WL9-2P431
- Weight: 0.08kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:
Red-light sender LED as alignment aid
Switching frequency 800/s
Outputs short-circuit protected
Teach-in
Specifications:
Scanning range, max. typical/on refl. | 4 m/PL 80 A |
Supply voltage VS1) | 10...30 V |
Ripple2) | ≤ 5 VSS |
Current consumption 3) | ≤ 30 mA |
Light source | LED, visible red light4) |
Angle of dispersion | 2.5° |
Light spot size | 120 x 120 mm at 3 m |
Switching outputs Q and Q | PNP |
NPN | |
Signal voltage HIGH | VS – 2.9 V |
VS | |
Signal voltage LOW5) | Approx. 0 V |
≤ 2.9 V | |
Output current IA max. | ≤ 100 mA |
Response time6) | ≤ 625 μs |
Max. switching frequency7) | 800/s |
Connection types | Connection cable, 2 m |
Cable, 120 mm, with plug M 12, 4-pin | |
Plug M 12, 4-pin | |
Plug M 8, 4-pin | |
VDE protection class8) | ? |
Enclosure rating | IP 67 |
Circuit protection9) | A, B, C |
Ambient temperature TA10) | Operation – 40...+ 60 °C |
Storage – 40...+ 75 °C | |
Weight |
|
with connection cable 2 m/120 mm | Approx. 80 g |
with equipment plug M 12/M 8, 4-pin | Approx. 20 g |
1) Limit values
2) Must be within VS tolerances
3) Without load
4) Average service life at room temperature 100,000 h at TA = + 25 °C
5) At TA = + 25 °C and 100 mA output current
6) With resistive load
7) With light/dark ratio 1:1
8) Reference voltage 50 V
9) A = supply connections reversepolarity protected
B = outputs short-circuit protected
C = interference suppreasion
10)Do not bent below 0 °C
