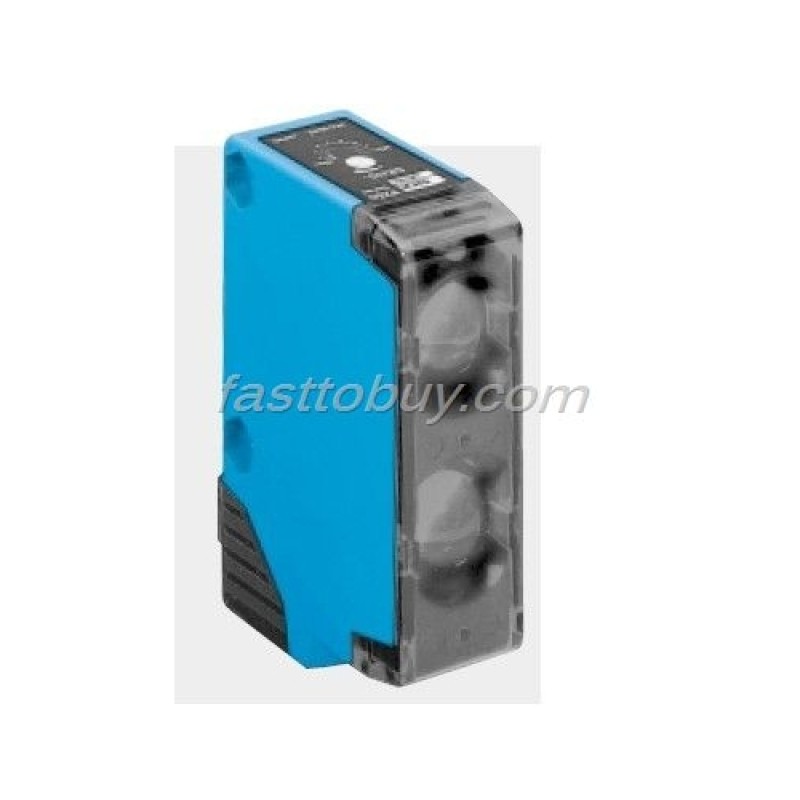

WL250-P132 SICK Standard photoelectric switch NEW

WL250-P132 SICK Standard photoelectric switch NEW
WL250-P132 SICK Standard photoelectric switch NEW
WL250-P132 SICK Standard photoelectric switch NEW
WL250-P132 SICK Standard photoelectric switch NEW
WL250-P132 SICK Standard photoelectric switch NEW
WL250-P132 SICK Standard photoelectric switch NEWProduct Description:Polarisation filter, ensuring r... Read More
$108.00
Ex Tax: $108.00
  • Stock: In Stock
  • Model: WL250-P132
  • Weight: 0.08kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: WL250-P132
WL250-P132 SICK Standard photoelectric switch NEW

Product Description:

Polarisation filter, ensuring reliable detection of objects with reflective surfaces

Robust, compact plastic housing

Adjustable sensitivity setting (2 turns) with position indicator (270°)

M12 plug rotatable by 90°

Specifications:

Scanning range, max. typical/on refl.

0.01...13.5 m /PL 80 A

max. typical/on refl.

0.01... 9 m /P 250 (included)

Recommended operating range

0.01...8 m /P 250

Sensitivity, adjustable

Potentiometer, 2 turns,

with position indicator

Light source1), light type

LED, visible red light with polarising filter

Light spot diameter

Approx. 400 mm at 8 m

Angle of dispersion, sender

Approx. 2.5°

Supply voltage VS

10...30 V DC2)

Residual ripple3)

≤ 5 VSS

Current consumption4)

≤ 35 mA

Switching outputs

PNP, open collector: Q

NPN, open collector: Q

Output current IA max.

100 mA

Light receiver, switching type

Light-/dark-switching via control wire:

 +VS=light-switching

0 V = dark-switching

Response time5)

≤ 0.7 ms

Max. switching frequency6)

700/s

Connection types

Cable PVC, 2 m7)

4 x 0.18 mm2, l 3.8 mm

Plug M 12, 4-pin, 90° rotatable

VDE protection class8)

?

Circuit protection9)

A, B, C, D

Enclosure rating

IP 67

Ambient temperature TA

Operation – 25 °C...+ 55 °C

Storage – 40 °C...+ 70 °C

Weight

with cable 2 m Approx. 80 g

with plug M 12, 4-pin Approx. 40 g

Housing material

Housing: ABS; optics: PMMA



1) Average service life at TA = + 25 °C; LED, red light 100,000 h

2) Limit value

3) May not exceed or fall short of VS tolerances

4) Without load

5) Signal transit time with resistive load

6) With light/dark ratio 1:1, without time delay

7) Do not bend below 0 °C

8) Reference voltage 50 V DC

9) A = VS connections reverse-polarity protected

B = Output Q short-circuit protected

C = Interference pulse suppression

D = Output overcurrent and short-circuit protected
