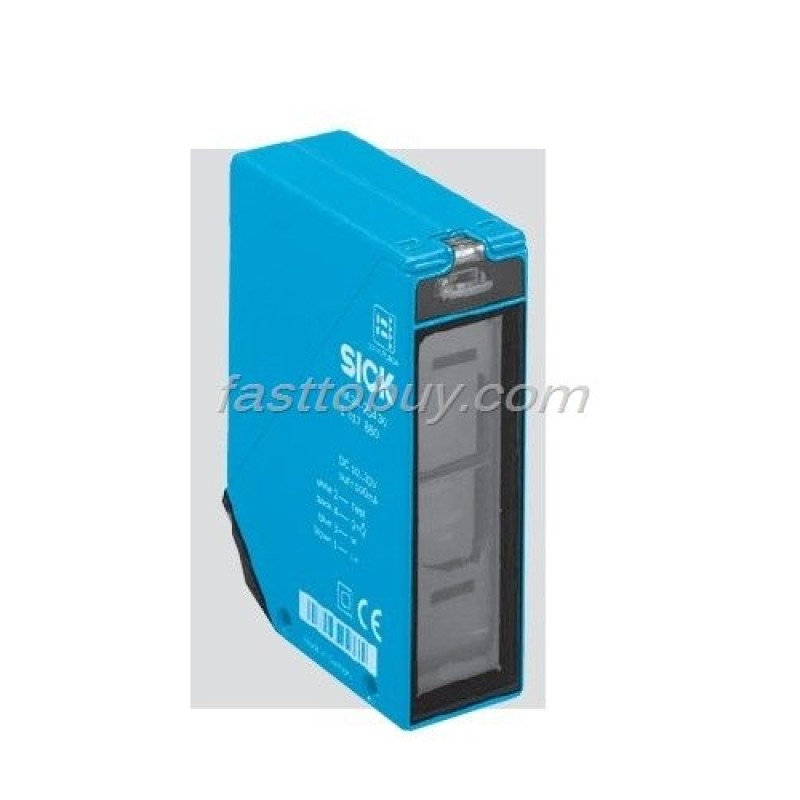

- Model: WL24-2B240
- Weight: 0.33kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:
Robust metal housing
? High operating reserve in visible red light
? M16 screw fixing or plug rotatable by 90°
? Front lens heating and selectable time delay, optional
Specifications:
Sensitivity Scanning range, max. typ./on reflector 22 m/on PL 80 A | Adjustable | |
Light spot diameter Light source1), light type | Approx. 250 mm at 15 m LED, red light | |
Residual ripple3) Supply voltage VS | < 5 VSS 10...30 V DC2) | |
Current consumption4) | ≤ 50 mA | |
≤ 70 mA, front lens heating | ||
Output current IA max. Switching outputs | 100 mA PNP or NPN, Q or Q – | |
Response time5) | ≤ 500 μs | |
Max. switching frequency6) | 1000/s | |
Pre-failure signalling output | Alarm, PNP | |
Time delay | Adjustable, 0.5...10 sec | |
Sender OFF Test input ”TE” | PNP or NPN: TE to 0 V Sender switched off | |
Connection types | Plug M16 screw fixing | |
Circuit protection8) VDE protection class7) | A, B, C V | |
Enclosure rating | IP 67 | |
Ambient temperature TA | Operation – 40 °C. . .+ 60 °C | |
Storage – 40 °C...+ 75 °C | ||
Weight | Approx. 330 g | |
Front lens heating | ||
Polarising filter | ||
Housing material | Zinc die-cast housing | |
1) Average service life 100,000 h at TA = + 25 °C
2) Limit values
3) May not exceed or fall short of VS tolerances
4) Without load
5) Signal transit time with resistive load
6) With light/dark ratio 1:1
7) Reference voltage 50 V DC
8) A = VS connections reverse-polarity protected
B = Output Q and Q– short-circuit protected
C = Interference pulse suppression
