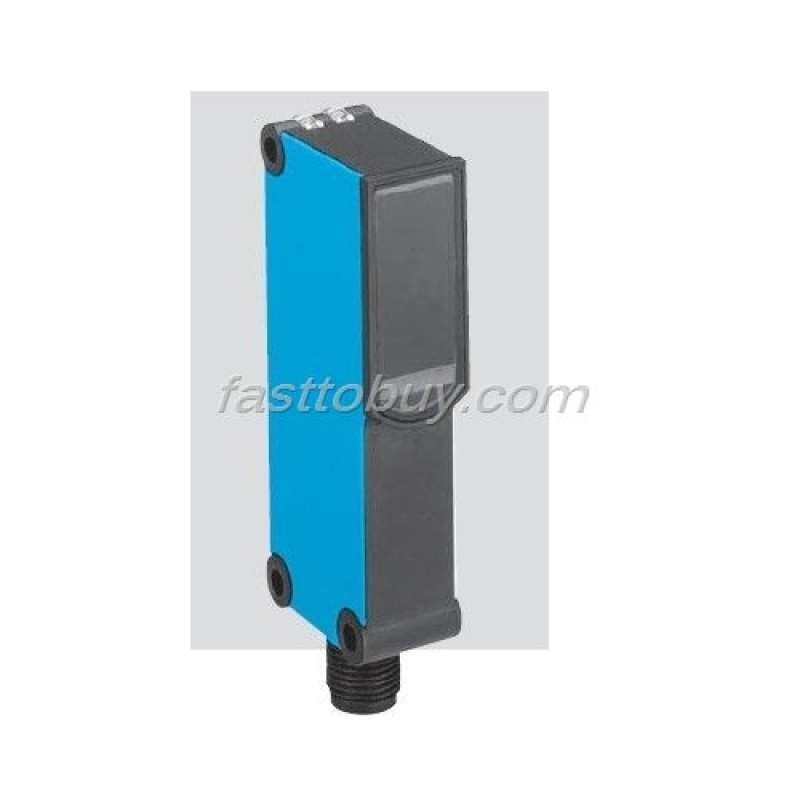

WL18-3P130 SICK Small photoelectric switch NEW

Product Description:

Autocollimation optics; reliable target detection

Insensitive to external light sources (HF lamps)

Operation reliability with equipment facing each other

Permissible ambient operating temperature –40 °C ... +60 °C

Test input for system diagnosis (optional)

Specifications:

Scanning range, max. typ./on reflector: 7 m/PL80A

Sensitivity :Adjustable, via Poti, 270°

Light source 1), light type: LED, visible red light

Angle of dispersion: 4°

Light spot diameter: 40 mm at 2 m

Polarising filter :Yes

Supply voltage VS: 10 ... 30 V DC 2)

Residual ripple 4): < 5 VPP

Current consumption 5) :< 40 mA

Output current IA max:< 100 mA

Switching outputs :PNP, antivalent NPN, antivalent

Response time 5) :500 μs

Switching frequency max. 6) :1000/s

Test input »TE« :PNP: Sender off; TE to 0 V NPN: Sender off; TE to V+

Connection types: Cable 7), 2 m, 4 wire M12 plug, 4-pin

Cubic plug, 6-pin Cable, 2 m, 5 wire

VDE protection class cable 8);?

Circuit protection 9) ?A, B, C

Enclosure rating ?IP 67 IP 65

Ambient temperature? Operation –40 °C ... +60 °C Storage –40 °C ... +75 °C

Weight ?With cable, 2 m, approx. 120 g With M12 plug, approx. 40 g

With cubic plug, ca. 40 g

Housing material ?ABS

1) Average service life 100,000 h at TA = +25 °C

2) Limit values; Operation in short-circuit protected network max. 8 A

4) Without load

5) Signal transit time with resistive load

6) With light/dark ratio 1:1

7) Do not bend below 0 °C

8) Reference voltage 50 V DC

9) A = VS connection reverse-polarity protected

B = Outputs short-circuit protected

C = Interference pulse suppression
