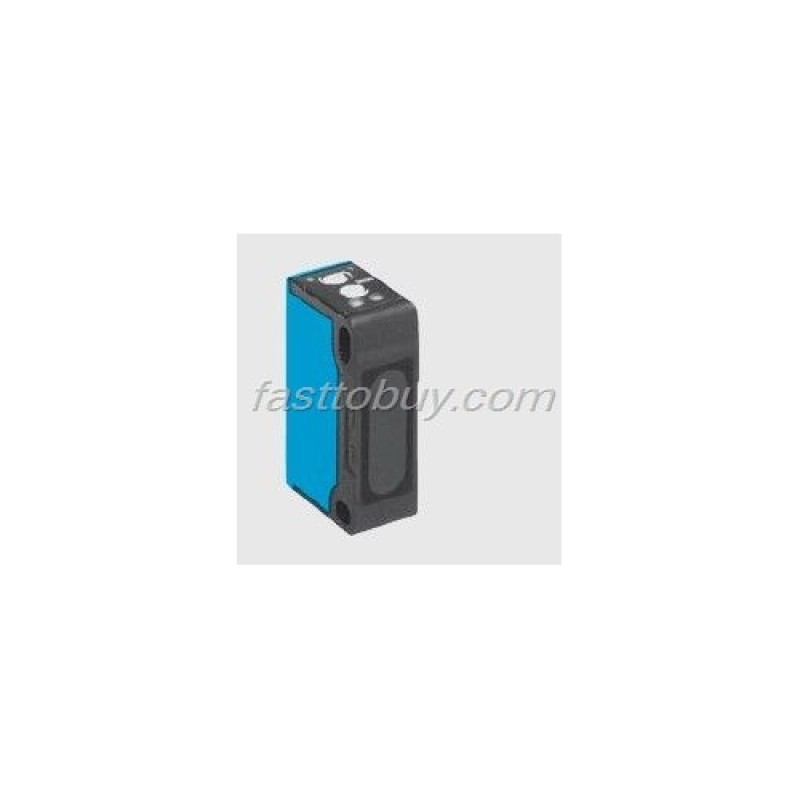

WL140-2N132 SICK Miniature photoelectric switch NEW

Product Description:

Polarisation filter for detection of objects with shiny surfaces

Also suitable for "Diamond Grade" reflective tape

Red light as alignment aid

LED indicator: operating reserve

Specifications:

Scanning range typ. max: 0.01 ... 6.5 m

Scanning range, recommended: 0.01 ... 5 m

Relating to: Reflector PL80A

Sensitivity adjustment :Potentiometer

Light source, light type LED: Red light, 680 nm1)

Light spot diameter :Approx. 250 mm at 2.5 m distance

Angle of dispersion :Ca. 5.8 °

Polarisation filter:√

Supply voltage Vs: DC 10 ... 30 V2)

Ripple :± 10 %3)

Power consumption: ≤ 30 mA4)

Switching outputs :NPN: open collector: Q PNP: open collector: Q

Switching mode: Light-/dark-switching via rotary switch

Signal voltage PNP HIGH / LOW :Vs - 1.8 V / approx. 0 V

Signal voltage NPN HIGH / LOW: Approx. Vs / < 1.8 V

Output current Iamax: 100 mA

Response time :≤ 0.5 ms5)

Switching frequency :1,000 Hz6)

Connection type: Cable, PVC, 2 m7) Connector, M8, 3-pin

Connector, M8, 4-pin

VDE protection class:? 8)

Circuit protection ?Vs connections reverse-polarity protected/ In-/outputs short-circuit protected /Interference suppression / Outputs overcurrent and short-circuit protected

Enclosure rating? IP 67

Ambient temperature operation? -25 °C ... +55 °C

Ambient temperature storage? -40 °C ... +70 °C

Weight ?Ca. 53 g Ca. 9 g

Housing materia?l PBT, PMMA

1) Average service life 100,000 h at Ta = +25 °C

2) Limit values, operation in short-circuit protected network max. 8 A

3) May not exceed or fall short of Vs tolerances

4) Without load

5) Signal transit time with resistive load

6) With light/dark ratio 1:1

7) Do not bend below 0 °C

8) Reference voltage 50 V DC
