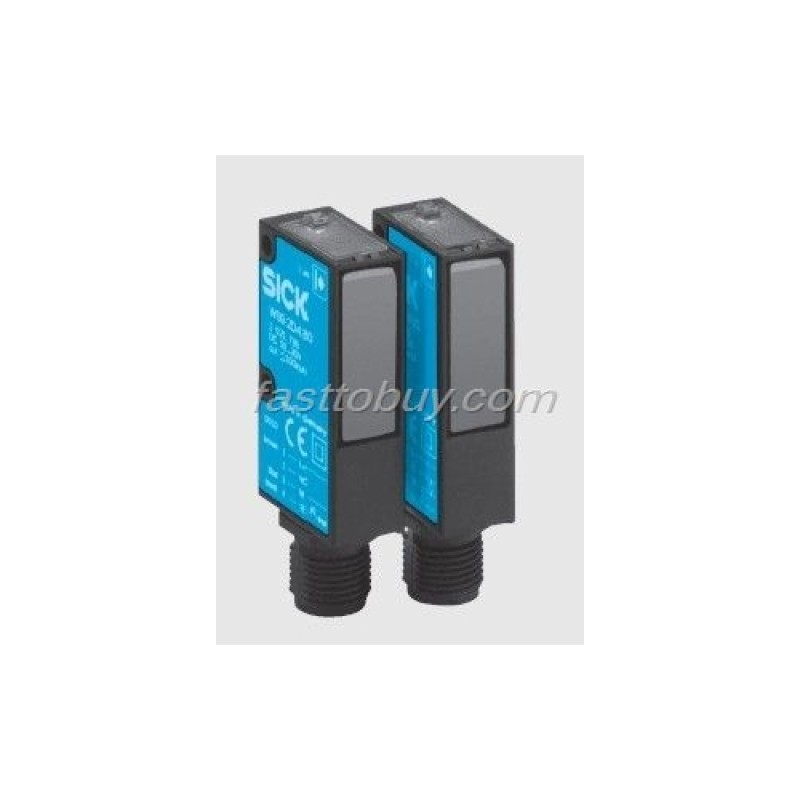

- Model: WE9-2N130
- Weight: 0.08kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:
Red-light emitters the LED as
alignment aid
Switching the frequency 200 / s.
Outputs short-circuit protected
The Test the input
Specifications:
Scanning range typ. max. | 7 m |
Suggested operating range | 5 m |
Supply voltage VS1) | DC 10 ... 30 V |
Ripple 2) | ≤ 5 VPP |
Current consumption 3) | ≤ 15 mA (WE); ≤ 60 mA (WS) |
Light source | LED, visible red light 4) |
Angle of dispersion | 15° |
Angle of reception | 6° |
Light spot diameter | 1000 mm at a distance of 5 m |
Switching outputs Q and Q | PNP |
NPN | |
Signal voltage HIGH | VS – 2.9 V |
VS | |
Signal voltage LOW 5) | Approx. 0 V |
≤ 2.9 V | |
Output current IA max. | ≤ 100 mA |
Response time 6) | ≤ 2.5 ms |
Max. switching frequency 7) | 200/s |
Test input TE | VS or unswitched, sender active |
0 V, sender inactive | |
Connection technology | Connection cable, 2 m |
Cable, 120 mm, with plug M 12, 4 pin | |
Plug M 12, 4 pin | |
Plug M 8, 4 pin | |
VDE protection class M 128) | ? |
VDE protection class M 8 | III |
Protection type | IP 67 |
Protection circuits 9) | A, B, C |
Ambient temperature 10) | Operation –40 ... +60 °C |
Storage –40 ... +75 °C | |
Weight |
|
with connection cable 2 m/120 mm | Approx. 80 g |
with equipment plug M 12/M 8, 4 pin | Approx. 20 g |
1) Limit values
2) Must be within VS tolerances
3) Without load
4) Average service life at room temperature 100,000 h
5) At TU = +25 °C and 100 mA output current
6) With resistive load
7) With light/dark ratio 1:1
8) Withstand voltage 50 V
9) A = supply connections reverse polarity protected
B = outputs short-circuit protected
C = interference suppression
10) Do not distort cable below 0 °C
