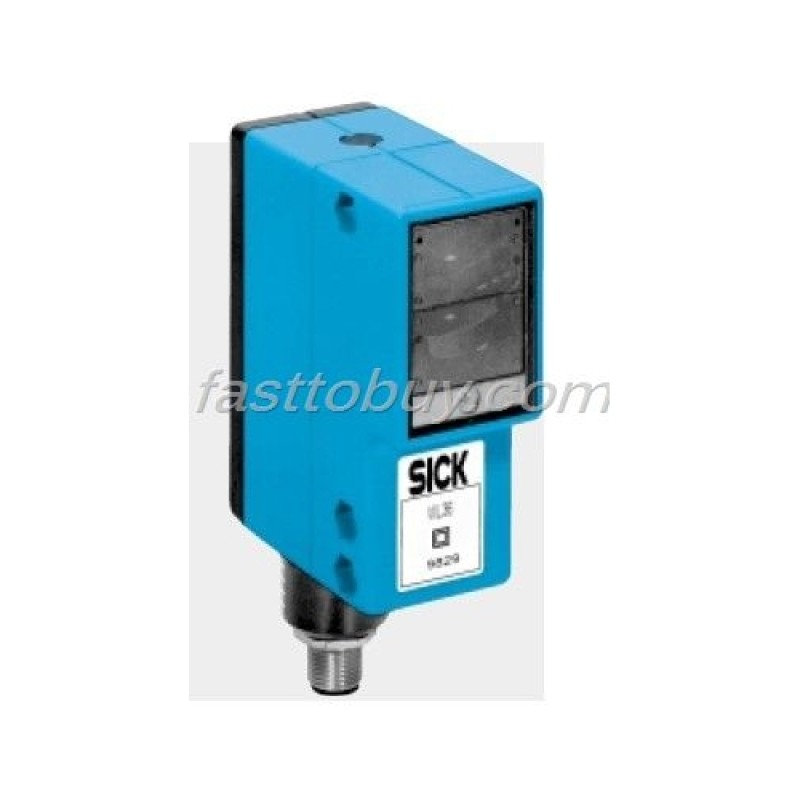

WE36-B230 SICK Standard photoelectric switch NEW

Product Description:

Robust plastic housing

Infrared light

Selectable time delay

Specifications:

Scanning range, max typical? 60 m

Sensitivity ?Adjustable

Light source1), light type? LED, infrared light

Light spot diameter? Approx. 1300 mm at 25 m

Supply voltage VS? 10. . . 30 V DC2)

Ripple3) ?≤ 5 VSS

Current consumption4)? ≤ 40 mA

Switching outputs ?PNP: QP and NPN QN PNP: QP

Light-/dark-switching ?Switch-selectable

Output current IA max?200 mA

Response time5) ?≤ 2.5 ms

Max. switching frequency6) ?400/s

Pre-failure signalling output ?Alarm, PNP, open collector

Internal resistance? ≥ 1.5 kΩ ± 5%

Operating condition "correct"7) ?Output HIGH (VS – 1.5 V)

Operating condition "faulty" ?Switching periodically at 5/s to VS

Test input "TE" ?Sender switched off

Sender OFF? Test input to 0 V

Connection types? PG cable gland Plug

VDE protection class8) ??

Circuit protection9) ?A, B, C

Enclosure rating? IP 67 IP 65

Ambient temperature TA? Operation – 40 °C. . . + 55 °C

Storage – 40 °C. . . + 70 °C

Weight Approx?160 g

Housing material ?Glass-fibre-reinforced plastic

1) Average service life 100,000 h at TA =+25 °C

2) Limit values

3) May not exceed or fall short of VS tolerances

4) Without load

5) Signal transit time with resistive load

6) With light/dark ratio 1:1

7) Signal reserve ≥ 50 %

8) Reference voltage 50 V DC

9) A = VS connections reverse-polarity protected

B = Output QN and QP short-circuit protected

C = Interference pulse suppression
