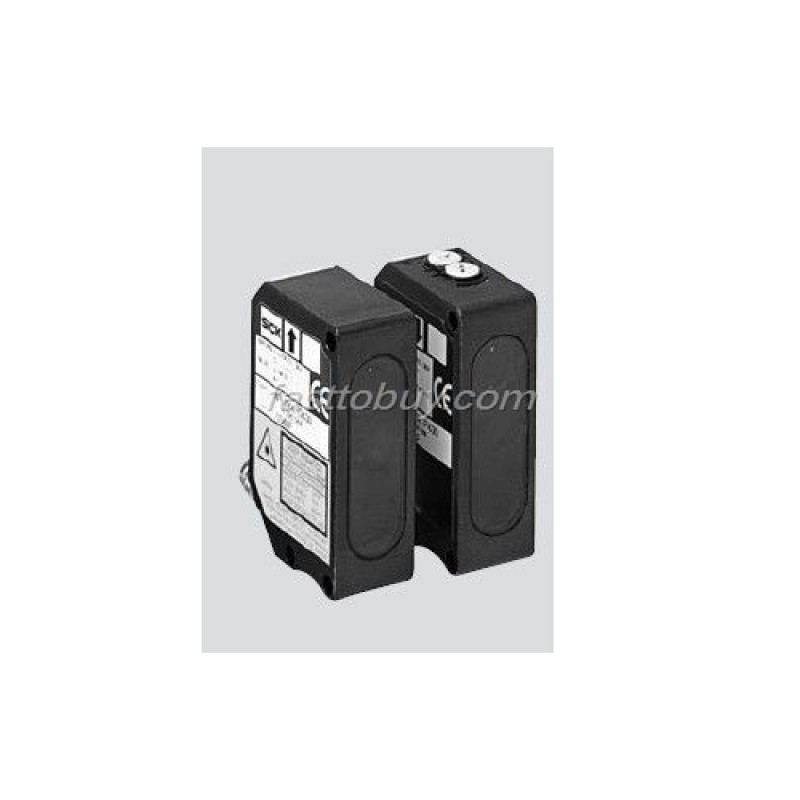

Product Description:
? Laser LED, visible red light, Class 2
? User friendly sensor, easily aligned and set up
? Sensitivity setting via rotary switch
? Precision auto-collimated optics
? Selectable output: Light/dark switching
Specifications:
Scanning range, max. typical | 50 m, adjustable |
Sensitivity, adjustable | Potentiometer, 1 turn volume |
Light source1) | Laser, red light; class 2 |
Light spot diameter | 40 mm at distance of 10 m |
Supply voltage VS | 10 ... 30 V DC2) |
Ripple3) | ±10 % |
Current consumption4) | Max. 40 mA |
Switching outputs | PNP |
NPN | |
Output current IA max. | < 100 mA |
Switching mode | Light/dark mode 5), selectable |
Response time6) | < 0.5 ms |
Switching frequency max.7) | 1000/s |
Connection types Cable | 3-wire8) |
Plug | 4-pin, M8 |
Circuit protection10) | A, B |
Enclosure rating | IP 67 |
Ambient temperature | Operation –10 ... +40 °C |
Storage –20 ... +60 °C | |
Weight | With cable 2 m approx. 200 g |
With plug approx. 120 g | |
Housing material | Housing: ABS; optic: PMMA |
1) Average service life 50,000 h at TA = + 25 °C
2) Limit values
3) Must be within VS tolerances
4) Without load
5) Via “select button”
6) With resistive load
7) With light/dark ratio 1:1
8) Do not bend cable below 0 °C
10) A = VS connections reverse-polarity protected
B = Output Q short-circuit protected
