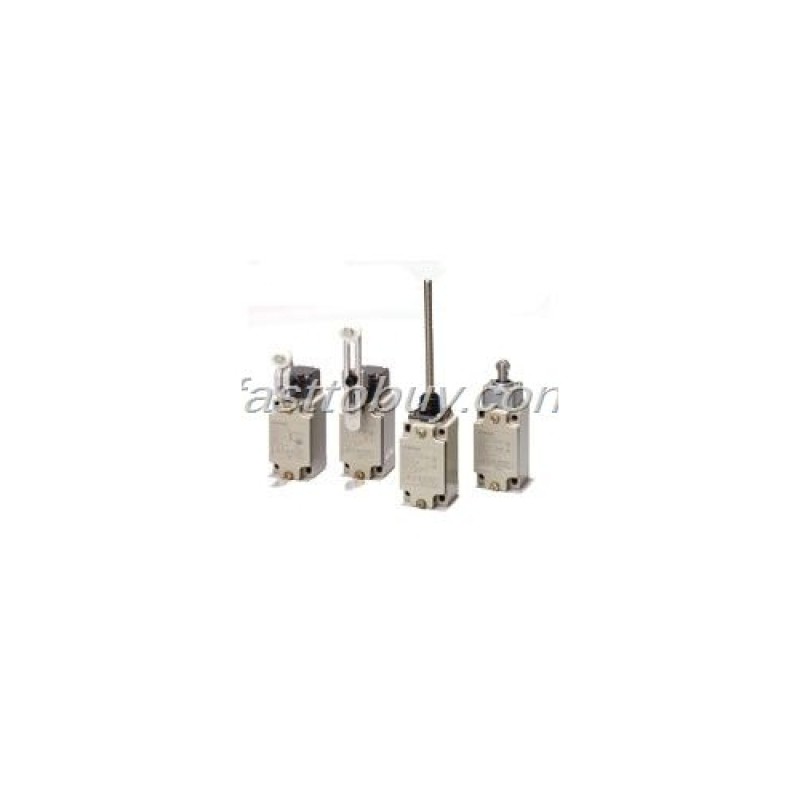

D4B-2187N Travel Switch NEW

Degree of protection *1

IP67 (EN60947-5-1)

Durability *2

Mechanical

30,000,000 operations min. (snap-action)

10,000,000 operations min. (slow-action)

Electrical

500,000 operations min. (10 A resistive load at 250 VAC)

Operating speed

1 mm/s to 0.5 m/s

Operating frequency

Mechanical

120 operations/minute

Electrical

30 operations/minute

Contact resistance

25 mΩ max.

Minimum applicable load *3

General load 180 mA resistive load at 5 VAC

Gold-clad contact 20 mA resistive load at 5 VAC

(N-level reference value)

Rated insulation voltage (Ui)

600 V (EN60947-5-1)

Rated frequency

50/60 Hz

Protection against electric shock

Class I (with ground terminal)

Pollution degree (operating environment)

3 (EN60947-5-1)

Impulse withstand voltage

Between terminals

2.5 kV (snap-action)/4 kV (slow-action)

(EN60947-5-1)

of same polarity

Between terminals

4 kV (slow-action)

of different polarity

Between each

4 kV

terminal and ground

Insulation resistance

100 MΩ min. (at 500 VDC) between terminals of the same polarity

and between each terminal and non-current-carrying part

Contact gap

2 × 2 mm min. (slow-action)

2 × 0.5 mm min. (snap-action)

Vibration resistance

Malfunction

10 to 55 Hz, 0.75 mm single amplitude

Shock resistance

Destruction

1,000 m/s2 min.

Malfunction

300 m/s2 min.

Conditional short-circuit current

100 A (EN60947-5-1)

Conventional enclosed thermal current (Ithe)

20 A (EN60947-5-1)

Ambient operating temperature

-40 to 80°C (with no icing)

Ambient operating humidity

95% max.

Weight

Approx. 250 g
