Product Description:

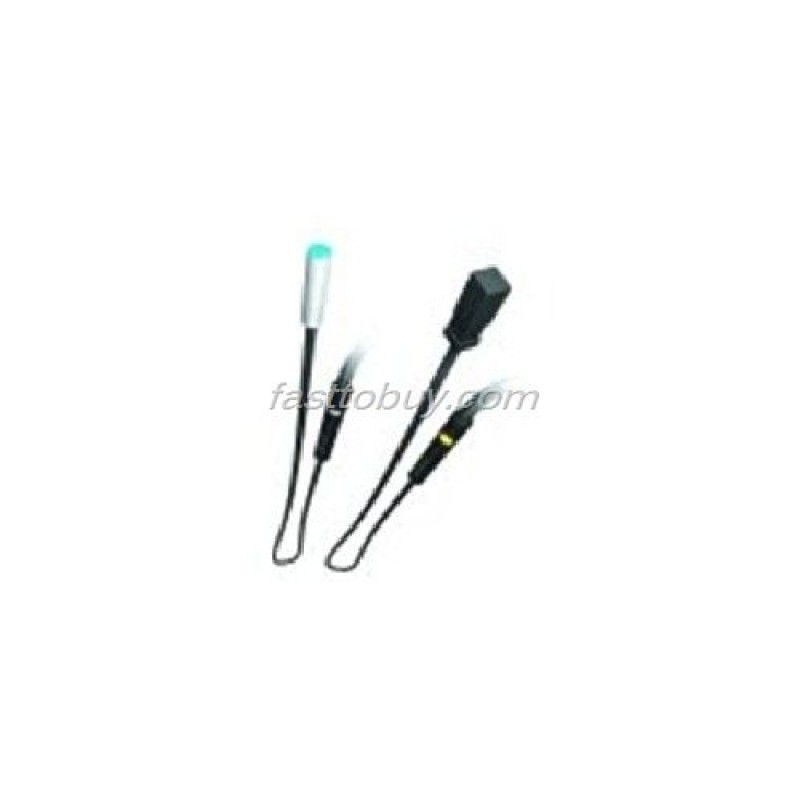

APT Series Amplifier-Relayed Compact Proximity Sensors
Overview?
The very compact amplifier of the APT Series is almost the same size as the cable
Benefits?
Ultra-compact sensor head; Cylindrical type: 3mm dia. x 12mm. Square tyep: 3.5mm square x 11mm
Cable between sesor head and amplifier is flexible making this an otimal sensor for use in high-speed equipment.
Specifications:
Type | Amplifier-Relayed Compact Proximity Sensors | |||
Catalog Listing | APT-A01J | APT-A01K | APT-N01J | APT-N01K |
Actuation Method | High-frequency oscillation | |||
Rated Sensing Distance | 0.8mm ±15% | 0.5mm ±15% | ||
Standard Target Object | 5 x 5 x 1mm (SPCC) | |||
Oper. Voltage Range | 10 to 30Vdc | |||
Operating Mode | Normally Open | Normally Closed | Normally Open | Normally Closed |
Output Mode | DC 2-wire, transistor ouput | |||
Control Output | Switching current 3 to 50mA, voltage drop 3.0V max. (with 50mA switching current, 1m cable) | |||
Output Dielectric | 30Vdc | |||
Operating Frequency | 1,000 Hz min. | |||
Operating Temperature | -25 to 70°C | |||
Insulation Resistance | 50M?? min. (by 500Vdc megger) | |||
Dielectric Strength | 1,000Vac, 50/60Hz for 1 minute between all live parts and case | |||
Vibration Resistance | 10 to 55Hz, 1.5mm peak-to-peak amplitude, 2 hrs each in X, Y and Z directions | |||
Shock Resistance | 500m/s2 3 times in each X, Y and Z directions | |||
Protective Structure | IP66 | |||
Allowable Bend Radius | R30 (shielded wire and cable) | |||
Circuit Protection | Surge absorption, load short-circuit protection, reverse connection protection circuit | |||
