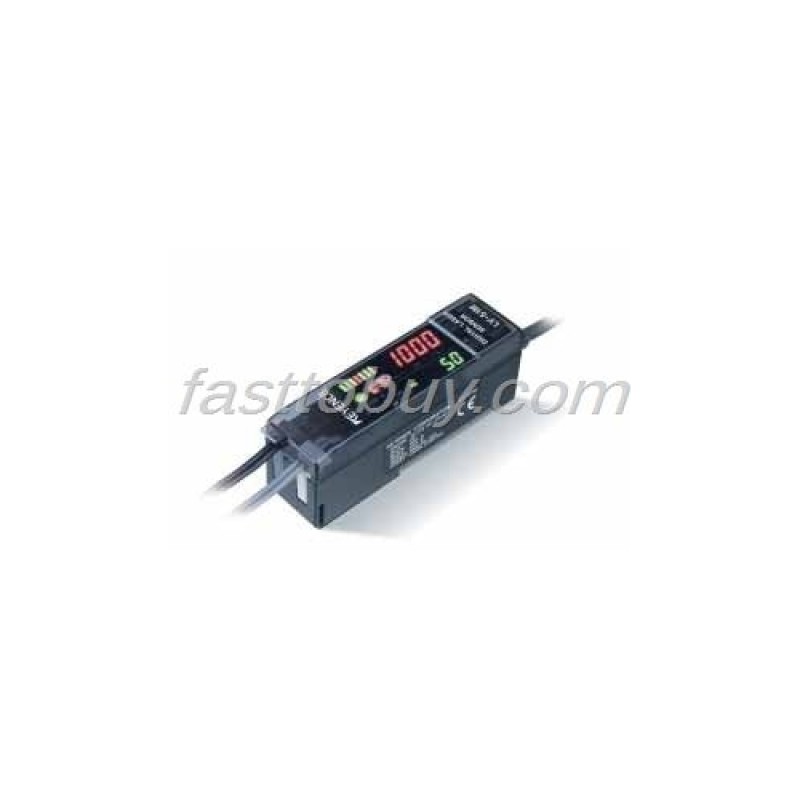

FS-M0 KEYENCE Fiber sensor NEW

Product Description:

Easy to see Sensitivity Indicator

An easy-to-see indicator is added to an 8-turn trimmer. The indicator shows the sensitivity setting at a glance, allowing anyone to easily check the setting.

Interference Prevention

8 fiber units can reliably detect in close proximity. In TURBO MODE, up to 8 fiber units can be used side-by-side without mutual interference. (Up to four fiber units can be used if using both TURBO MODE and FINE MODE.)

Two great features in one amplifier:

1. Ultra-fine adjustment

FINE MODE reliably detects minute height or color differences.

2. Ultra long range

TURBO MODE has twice the detecting distance of conventional models.

Turbo mode doubles the beam power

FINE MODE for precise detection and TURBO MODE for long-distance detection

The FS-M series is built for use in harsh environments while enabling minute adjustments for accurate target detection. Just move the switch to select the modes.

In FINE MODE, the FS-M offers the same detecting distance as conventional high-power models, about 1.5 times that of other amplifiers. In TURBO MODE, it offers twice the detecting distance of FINE MODE.

High-speed response of 20 µs

The new FS-M1H has a response time more than 10 times faster than the FS-M. (20us) This enables detection on high-speed lines or for high-speed counting.

Specifications:

Type

Manual Calibration

Main unit

1-line expansion unit

High-speed response

0-line expansion unit

Model

NPN

FS-M1

FS-M2

FS-M1H

FS-M0

PNP

FS-M1P

FS-M2P

-

-

Light source

Red LED

Response time

250 µs (FINE), 500 µs (TURBO)

20 µs (FINE), 50 µs (TURBO)

410 µs to 1.2 ms (1)

Operation mode

LIGHT-ON/DARK-ON (switch-selectable)

Timer function

ON-delay: 40 ms, OFF-delay: 40 ms, Timer OFF (switch selectable)

Control output

NPN or PNP:100 mA max. (40 V max.) Residual voltage: 1 V max. (2)

Power supply

12 to 24VDC ±10% (3)

Ambient light

Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.

Ambient temperature

-10°C to 55°C (14 to 131°F), No condensation

Relative humidity

35 to 85%, No condensation

1. The response speed varies depending on the number of expansion units connecte
2. The FS-T0/M0 have no control output.
3. Power to the FS-T0/M0 is supplied through the FS-R0. Power to the FS-T2/M2 is supplied through the FS-V1/T1/M1.
