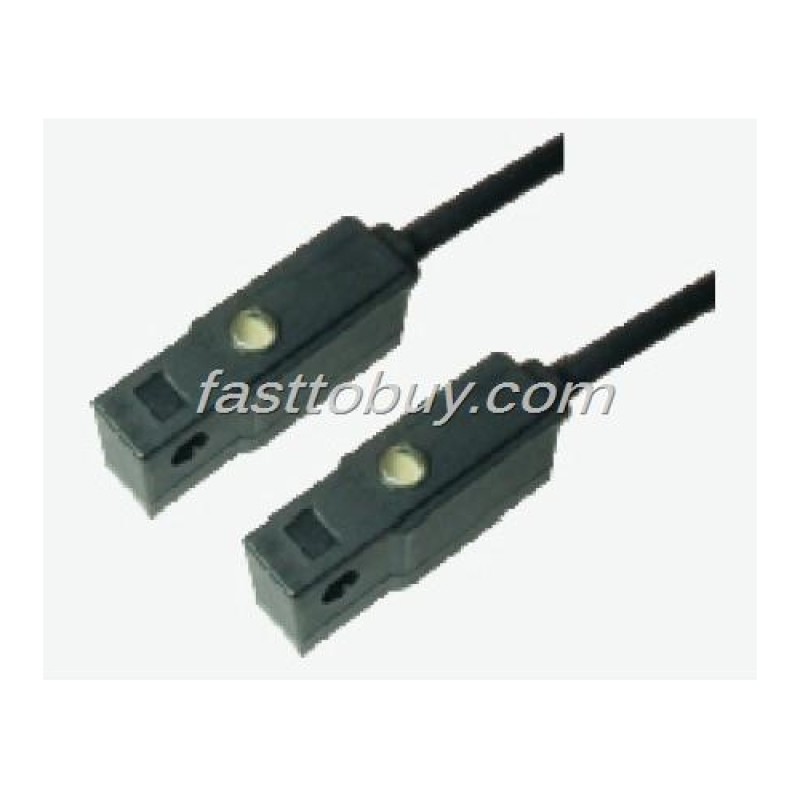

F&C Magnetic pipe FD series FD-73R reed pipe/normally open

F&C Magnetic pipe FD series FD-73R reed pipe/normally open
F&C Magnetic pipe FD series FD-73R reed pipe/normally open
F&C Magnetic pipe FD series FD-73R reed pipe/normally open
F&C Magnetic pipe FD series FD-73R reed pipe/normally open
F&C Magnetic pipe FD series FD-73R reed pipe/normally open
F&C Magnetic pipe FD series FD-73R reed pipe/normally openIf you need more than 10pcs and want to ge... Read More
$5.00
Ex Tax: $5.00
  • Stock: In Stock
  • Model: F&C
  • Weight: 0.01kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: F&C
F&C Magnetic pipe FD series FD-73R reed pipe/normally open

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Specifications:

Model

Specifications

FD-02R  FD-20R

FD-03R  FD-21R

FD-06R  FD-31R

FD-07R  FD-32R

FD-09R  FD-39R

FD-11R  FD-40R

FD-12R  FD-50R

FD-13R  FD-70R

FD-14R  FD-72R

FD-15R  FD-73R

FD-16R

FD-17R

FD-02N  FD-20N

FD-03N  FD-21N

FD-06N  FD-31N

FD-07N  FD-32N

FD-09N  FD-39N

FD-11N  FD-40N

FD-12N  FD-50N

FD-13N  FD-70N

FD-14N  FD-72N

FD-15N  FD-73N

FD-16N

FD-17N

FD-02P  FD-20P

FD-03P  FD-21P

FD-06P  FD-31P

FD-07P  FD-32P

FD-09P  FD-39P

FD-11P  FD-40P

FD-12P  FD-50P

FD-13P  FD-70P

FD-14P  FD-72P

FD-15P  FD-73P

FD-16P

FD-17P

Switch logic

Normally open

E-free contacts: Normally open

E-free contacts: Normally open

Sensor switch type

Three reed tube contacts

Contactless NPN-type transistor

Contactless PNP-type transistor

Voltage range

5~120DC/AC

5~30VDC

Maximum switching current

100mA Max

200mA Max

Maximum contact capacity

3.5W Max

6W Max

Internal current consumption

No

14mA Max @24V

11mA Max @24V

Residual pressure drop

2.5V Max @10mA DC

2.5V Max @10mA DC

Leakage current

No

0.01mA Max

Indicator

Red LED

Cable

Φ2.8, 2C/oil resistant gray PVC

Maximum switching frequency

1000Hz

Operating temperature range

-10?~+70?

-10?~+70?

Impact resistance

30G

50G

Vibration resistance

9G

Waterproof

IP67

Protection circuit

No

Power reverse polarity protection; surge absorption protection
