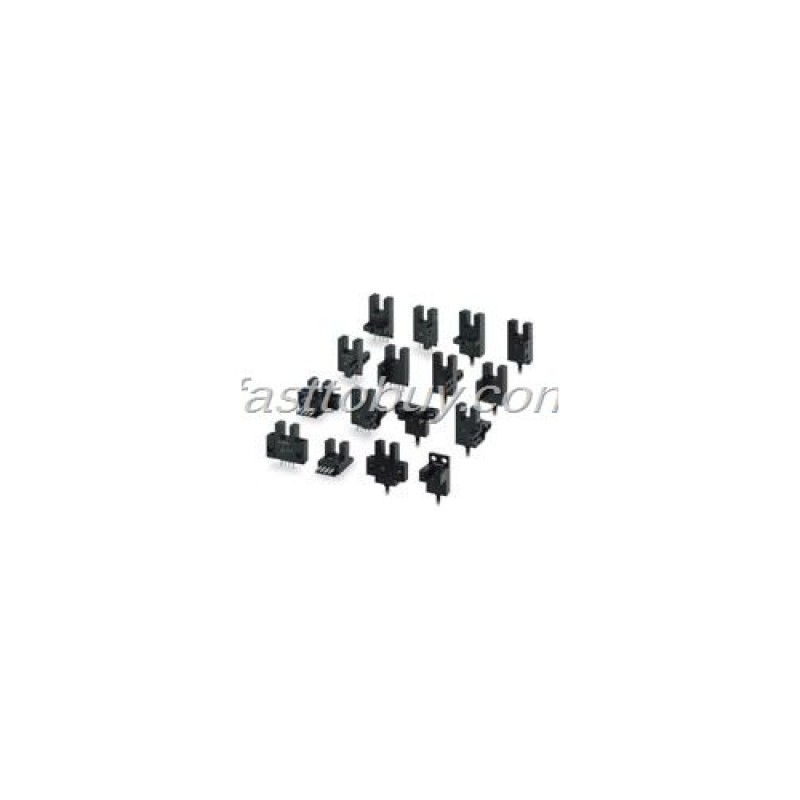

EE-SX671P Photoelectric Switch NEW

Type

Standard

L-shaped

T-shaped,

T-shaped,

slot center 7 mm

slot center 10 mm

NPN

Connector models

EE-SX670

EE-SX671

EE-SX672

EE-SX675

models

EE-SX670A

EE-SX671A

EE-SX672A

EE-SX470

EE-SX471

EE-SX472

Pre-wired models

EE-SX670-WR

EE-SX671-WR

EE-SX672-WR

EE-SX675-WR

PNP

Connector models

EE-SX670P

EE-SX671P

EE-SX672P

EE-SX675P

models

EE-SX670R

EE-SX671R

EE-SX672R

Pre-wired models

EE-SX670P-WR

EE-SX671P-WR

EE-SX672P-WR

EE-SX675P-WR

Sensing distance

5 mm (slot width)

Sensing object

Opaque: 2 × 0.8 mm min.

Differential distance

0.025 mm

Light source

GaAs infrared LED with a peak wavelength of 940 nm

Indicator *1

Light indicator (red) (turns ON when light is interrupted for models with A or R suffix)

Supply voltage

5 to 24 VDC ±10%, ripple (p-p): 10% max.

Current consumption

35 mA max. (NPN models), 30 mA max. (PNP models)

Control output

NPN open collector:

5 to 24 VDC, 100 mA max.

100 mA load current with a residual voltage of 0.8 V max.

40 mA load current with a residual voltage of 0.4 V max.

OFF current (leakage current): 0.5 mA max.

PNP open collector:

5 to 24 VDC, 50 mA max.

50 mA load current with a residual voltage of 1.3 V max.

OFF current (leakage current): 0.5 mA max.

Response frequency *2

1 kHz min. (3 kHz average)

Ambient illumination

1,000 lx max. with fluorescent light on the surface of the receiver.

Ambient temperature range

Operating: - 25 to +55 °C, Storage: - 30 to +80 °C (with no icing or condensation)

Ambient humidity range

Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)

Vibration resistance

Destruction: 20 to 2,000 H z (peak acceleration: 100 m/s2)

1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions

Degree of protection

IEC60529 IP50

Connecting method

Connector Models (direct soldering possible), Pre-wired Models (Standard cable length: 1 m),

Models with Connectors (Standard cable length: 0.1 m)

Weight

Connector models

Approx. 3.1 g

Approx. 3 g

Approx. 2.4 g

Approx. 2.7 g

Pre-wired models

Approx. 18.9 g

Approx. 17.3 g

Approx. 17.8 g

Approx. 18.3 g

Material

Case

Polybutylene phthalate (PBT)

Cover

Polycarbonate

Emitter/receiver
