- Stock: In Stock

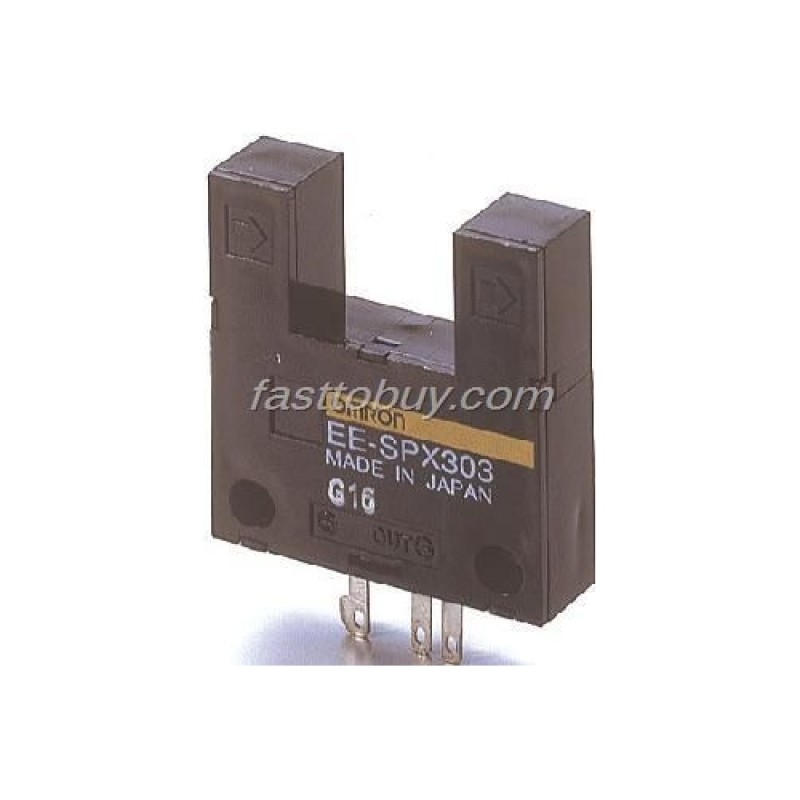

- Model: EE-SPX303
- Weight: 0.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:
Long sensing distance (13 mm) without external light interference.
? Easy adjustment and optical axis monitoring with a light indicator.
? Connection possible with Programmable Controllers (PLCs).
? Easy-to-wire connector assures ease of maintenance.
? Wide operating voltage range: 12 to 24 VDC.
Specifications:
Item | Models | EE-SPX303, EE-SPX403 |
Sensing distance | 13 mm (slot width) | |
Sensing object | Opaque: 2.2 × 0.5 mm min. | |
Differential distance | 0.05 mm max. | |
Light source | GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm | |
Indicator ∗1 | Light indicator (red) | |
Supply voltage | 12 to 24 VDC ±10%, ripple (p-p): 5% max. | |
Current consumption | Average: 15 mA max., Peak: 50 mA max. | |
Control output | NPN voltage output: Load power supply voltage: 12 to 24 VDC Load current: 80 mA max. 80 mA load current with a residual voltage of 1.0 V max. 10 mA load current with a residual voltage of 0.4 V max. | |
Response frequency ∗2 | 100 Hz min. | |
Ambient illumination | 3,000 lx max. with incandescent light or sunlight on the surface of the receiver. | |
Ambient temperature | Operating: −10 to +55°C Storage: −25 to +65°C | |
Ambient humidity | Operating: 5% to 85% Storage: 5% to 95% | |
Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions | |
Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions | |
Enclosure rating | IEC IP50 | |
Connecting method | Special connector (soldering not possible) | |
Weight | Approx. 3 g | |
Material | Polycarbonate | |
