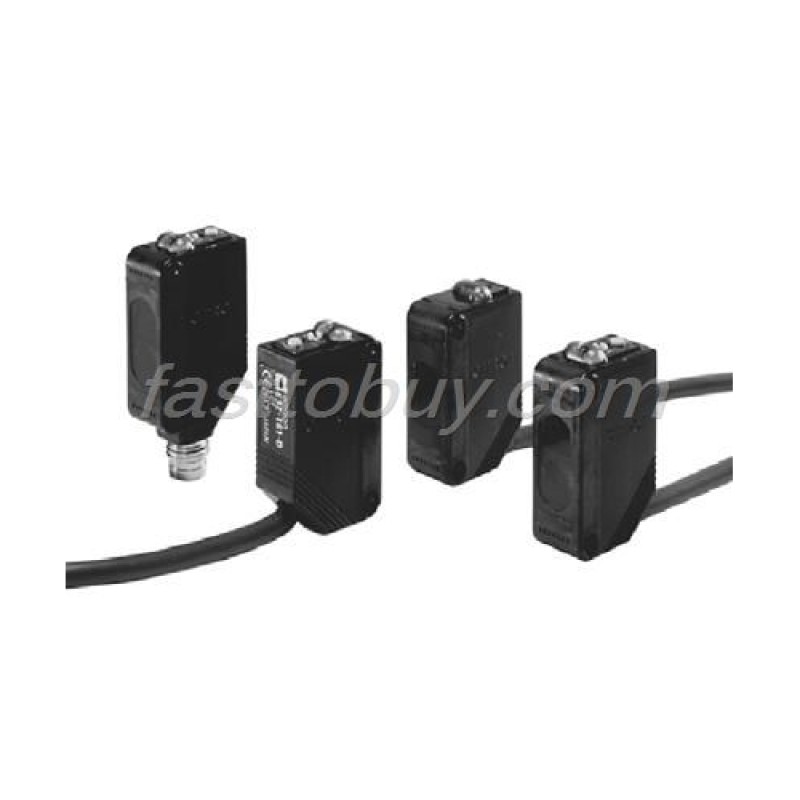

E3Z-LT61 Photoelectric Sensors NEW

Sensing method

Through-beam

Sensing distance

0 m to 60 m

Spot size

5mm dia. Max. (At sensing distance of 3m)

Standard sensing object

Opaque: 12 mm dia. Min.

Minimum sensing object

6 mm dia. Min. (at sensing distance 3m)

Directional angle

Receiver:3 to 15 DEG

Light source

Semiconductor laser diode(red) (655nm)

Classification of laser

IEC: CLASS 1
FDA: CLASS 2
JIS: CLASS 1

Power supply voltage

12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)

Current consumption

Emitter: 15mA DC Max., Receiver: 20mA DC Max.

Control output (Output type)

NPN open collector output

Control output (Load current)

0 to 100 mA

Control output (Residual voltage)

(DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 100 mA)

Operation mode

Light-ON/Dark-ON selectable

Load power supply voltage

26.4 VDC Max.

Protective circuit

Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection

Response time

1 ms Max.

Sensitivity setting

Single-turn adjustment

Ambient illuminance

Incandescent lamp:3000 lux Max., Sunlight:10000 lux Max.

Ambient temperature

Operating: -10 to 55 CEL
Storage: -25 to 70 CEL
(with no icing or condensation)

Ambient humidity

Operating: 35 to 85 %RH
Storage: 35 to 95 %RH
(with no condensation)

Insulation resistance

20 M OHM Min. at 500 VDC between charged parts and the case

Dielectric strength

1000 VAC at 50/60 Hz for 1 minute between charged parts and the case

Vibration resistance

10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

500m/s2 for 3 times each in X, Y, and Z directions

Degree of protection

IEC60529: IP67

Applicable standard (EC Directive (Low Voltage Directive))

EN60947-5-2

Applicable standard (EC Directive (EMC Directive))

EMI: EN60947-5-2
Emission Enclosure: EN55011 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Burst: IEC61000-4-4
CE marking: Equipped

Connection method

Pre-wired models (Cable length: 0.5 m)

Indicator

Operation indicator(orange), Stability indicator(green), Power indicator(orange)

Weight (packed state)

approx. 55 g

Tightening torque

0.5 N.m Max. (with M3 screw)

Material (case)

PBT

Material (lens)

Denatured Polyarylate

Accessories

Instruction manual
