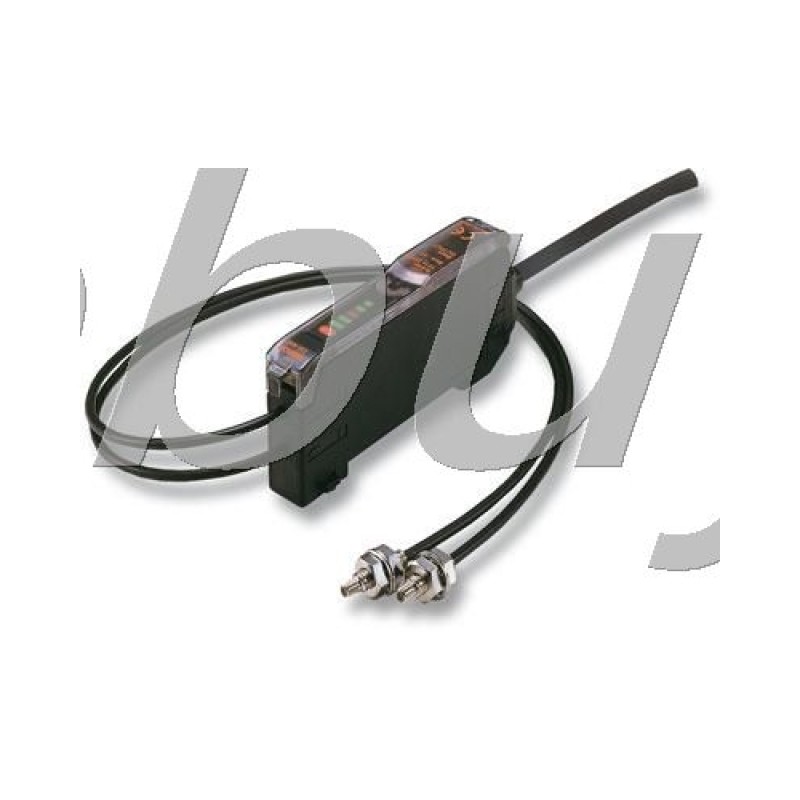

E3X-SD11 Simple Fiber Amplifier NEW

Type

Digital display and direct key setting

Bar display and adjuster setting

Standard models

Standard models

High-speed detection models

Water-resistant models

Model

E3X-SD?

E3X-NA?

E3X-NA?F

E3X-NA?V

Light source (wavelength)

Red LED (620 nm)

Red LED (680 nm)

Power supply voltage

12 to 24 VDC ±10%, ripple (p-p): 10% max.

Current consumption

960 mW max. (Power supply: 24 V, Current consumption: 40 mA max.)

35 mA max.

Control output

Open-collector output (NPN or PNP) Load power supply: 26.4 V max., Load current: 50 mA max. (Residual voltage: 1.5 V max.) (*1) Light-ON/Dark-ON mode selector

Response time

Operate or reset: 200 µs max. (*2)

Operate: 20 µs max. Reset: 30 µs max.

Operate or reset: 200 µs max. (*2)

Sensitivity adjustment

UP/DOWN direct key setting, teaching

8-turn sensitivity adjuster (with indicator)

Protection circuits

Power supply reverse polarity protection, output short-circuit protection, output reverse polarity protection (*3)

Timer function

ON/OFF-delay timer: 10 ms (each fixed)

OFF-delay timer: 40 ms (fixed)

Mutual interference prevention

Up to 5 Amplifiers (optically synchronized)

None

Up to 5 Amplifiers (optical­ly synchronized)

Ambient illumination

Receiver side Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.

Ambient temperature range

Operating: Groups of 1 to 3 Amplifiers: −25°C to 55°C Groups of 4 to 11 Amplifiers: −25°C to 50°C Groups of 12 to 16 Amplifiers: −25°C to 45°C Storage: −30°C to 70°C (with no icing or condensation)

Ambient humidity range

Operating and storage: 35% to 85% (with no condensation)

Insulation resistance

20 M?. min. (at 500 VDC)

Dielectric strength

1,000 VAC at 50/60 Hz for 1 minute (*4)

Vibration resistance

Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions

Shock resistance

Destruction: 500 m/s2, for 3 times each in X, Y and Z directions

Degree of protection

IEC 60529 IP50 (with Protective Cover attached)

IEC 60529 IP66 (with Protective Cover at­tached)

Connection method

Pre-wired (standard cable length: 2 m), or connector

Weight (packed state)

Pre-wired model: Approx. 100 g, Model with connector: Approx. 55 g (*5)

Material

Case

Polybutylene terephthalate (PBT)

Cover

Polycarbonate

Polyethersulfone (PES)

Accessories

Instruction manual
