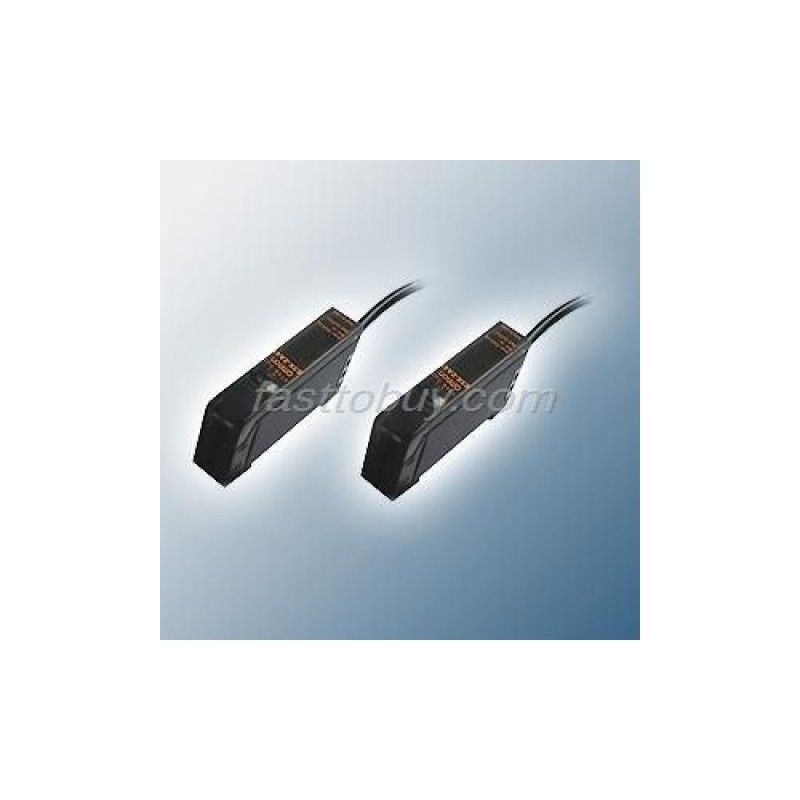

Product Description:
High Performance Amplifier Has Fast Response Time, Longer Sensing
Distance and Self-Diagnostic Functions
· Ultra fast 20 µsec. response time (E3X-F)
· Extended sensing distance (E3X-H)
· User friendly features:
- 8-turn sensitivity with position indicator
- IP66 enclosure rating
- Slim body mounts on DIN rail
· Set-mode blinking light source aids alignment.
Specifications:
Part number | NPN | E3X-H11 | |
Supply voltage |
| 10 - 30 VDC 10% ripple max. | |
Current consumption |
| 35 mA max. | |
Required fiber optic cables |
| All E32 series | |
Light source |
| Pulse modulated Red LED (660 nm) | |
Operation mode |
| Light ON, Dark ON | |
Sensitivity |
| 8 turn potentiometer | |
Control output | DC solid-state | Type | NPN - Open collector |
Max. load | 100 mA, 30 VDC | ||
Max. ON-state voltage drop | 1 VDC max. at 100 mA | ||
Response time |
| 1 m sec max. | |
Timing functions |
| OFF DELAY 40 ms Fixed Switch selectable | |
Circuit protection |
| Output short-circuit protection, DC power reverse polarity protection | |
Indicators |
| Light received (Red LED) and output stability (Green LED) | |
Materials | Case | Heat resistant ABS | |
Cover | Polycarbonate | ||
Mounting |
| DIN rail track, or on flat surface through holes in bracket (provided) | |
Connections | Prewired | 3 conductor cable 2 m (6.5 ft) | |
Weight |
| 100g (3.5 oz) with 2 m cable | |
Enclosure ratings | IEC | IP66 (with cover on) | |
Ambient temperature | Operating | -25° to -55°C with no icing build-up (-13° to 131°F) | |
Storage | -40° to 70°C (-40° to 158°F) | ||
