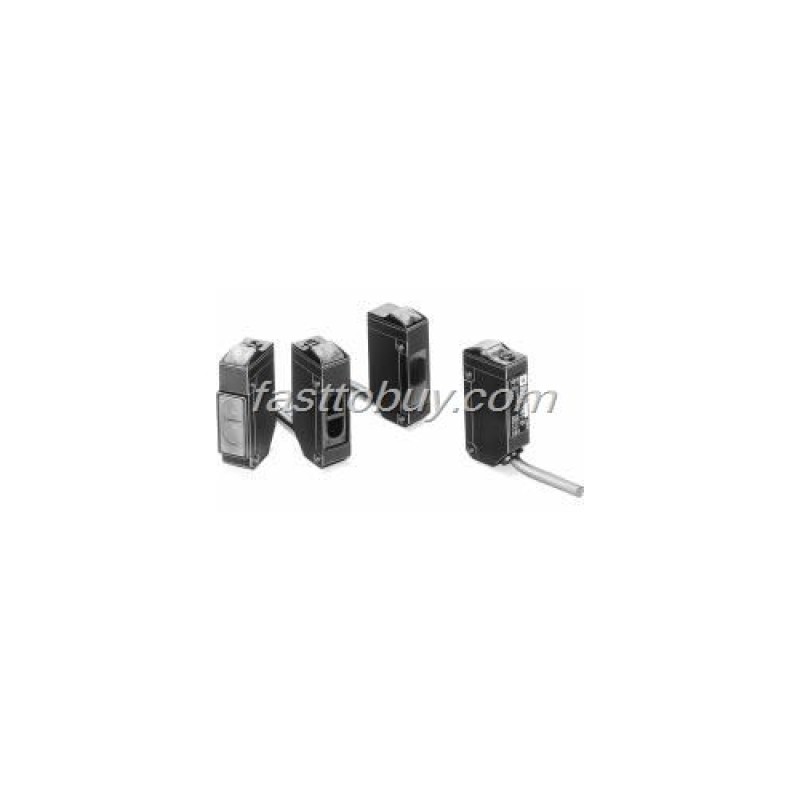

E3V3-D62 Photoelectric Sensors NEW

Sensing method

Through-beam

Retroreflective (with MSR function)

Diffuse reflective

NPN output

E3V3-T61

E3V3-R61

E3V3-D61

E3V3-D62

PNP output

E3V3-T81

E3V3-R81

E3V3-D81

E3V3-D82

LED light source

Infrared LED

Red LED

Infrared LED

Sensitivity adjustment

Adjustor

Connection method

Pre-leaded: 2 m (6.6 ft)

Weight

Approx. 160 g (with 2-m cord)

Approx. 80 g (with 2-m cord)

Mode

Wire selectable (Light-ON or Dark-ON)

Circuit protection

Overload protection, reversed connection protection, and mutual interference prevention function (except for through-beam models)

Indicators

Operation indicator (orange), stability indicator (green), emission indicator for through-beam models only (orange)

Materials

Case

Heat-resistive ABS

Lens

Methacrylic resin

Attachments

Instruction sheet and reflector (E39-R1 retroreflective model only) (See Note.)

Supply voltage

12 to 24 VDC ±10%, ripple (p-p): 10% max.

Current consumption

50 mA max.

40 mA max.

Detection distance

7 m

0.1 to 2 m (with E39-R1)

0.5 to 8 cm

70 cm

Standard detectable object

Opaque object: 7 mm min. (0.28 in)

Opaque object: 30 mm min. (1.18 in)

10 x 10 cm white paper

20 x 20 cm white paper

Directional angle

3° to 15°

Receiver/Emitter: 2° to 10° Reflector: 30° min.

--­

Differential travel

--­

20% max. of detection distance

Response time

1 ms max. for both operation and release

Control output

100 mA max. at 30 VDC, open collector output (residual voltage: 1 V max.)

Ambient illumination

Incandescent lamp

Illumination on optical spot: 3,000 Cx max.

Sunlight

Illumination on optical spot: 10,000 Cx max.

Ambient temperature

Operating

–25°C to 55°C (–13°F to 131°F) with no icing

Storage

–40°C to 70°C (–40°F to 158°F)

Relative humidity

Operating

35% to 85%

Storage

35% to 95%

Insulation resistance

20 MΩ min. (at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min

Vibration resistance

10 to 55 Hz, 1.5-mm double amplitude for 2 hrs each in X, Y, and Z directions

Shock resistance

500 m/s2 (approx. 50G) 3 times each in X, Y, and Z directions

Enclosure rating

IEC

IP67
