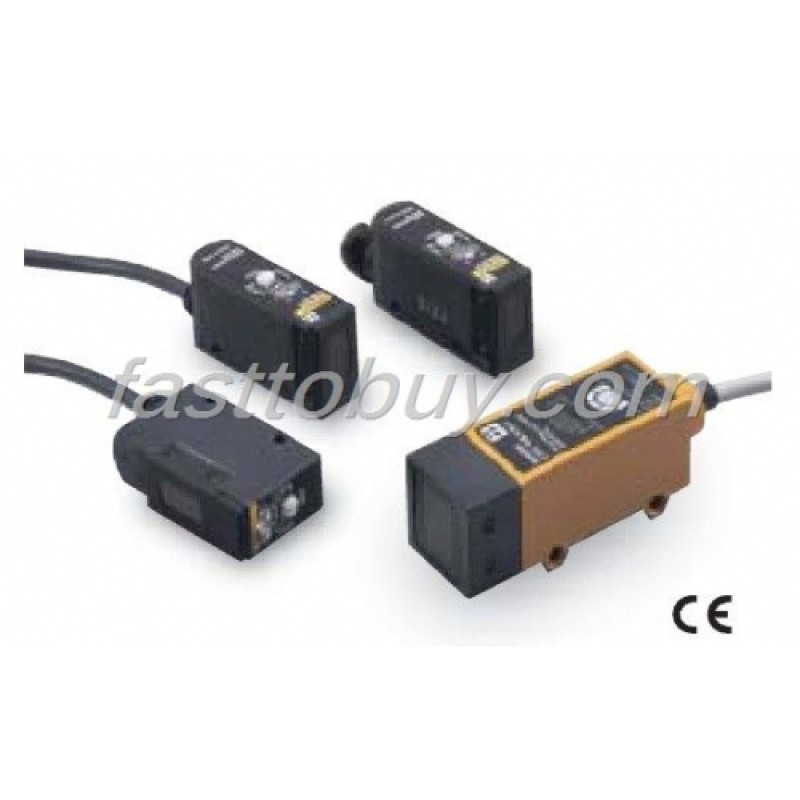

E3S-R61 Transparent Object Detection Sensor NEW

Sensing method

Retro-reflective with M.S.R. function

Sensing distance

0.1 m to 1 m (When using the E39-R1)

Standard sensing object

Opaque, LCD glass plate(thickness:0.7-mm): 75 mm dia. Min.

Directional angle

Sensor:3 to 10 DEG

Reflector:30 DEG Min.

Light source

Red LED (700nm)

Power supply voltage

10 to 30 VDC (ripple(p-p) 10% included)

Current consumption

30mA DC Max.

Control output (Output type)

NPN open collector output

Control output (Load current)

0 to 100 mA

Control output (Residual voltage)

(DC) 1 V Max. (Load current 100mA Max.)

Operation mode

Light-ON/Dark-ON selectable

Load power supply voltage

30 VDC Max.

Protective circuit

Surge suppressor

Output short-cut protection

Power supply reverse polarity protection

Mutual interference prevention

Response time

1 ms Max.

Sensitivity setting

2-turn endless adjustment (with indicator)

Ambient illuminance

Incandescent lamp:5000 lux Max., Sunlight:10000 lux Max.

Ambient temperature

Operating: 0 to 40 CEL

Storage: -40 to 70 CEL

(with no icing or condensation)

Ambient humidity

Operating: 35 to 85 %RH

Storage: 35 to 95 %RH

(with no condensation)

Insulation resistance

20 M OHM Min. at 500 VDC between charged parts and the case

Dielectric strength

1000 VAC at 50/60 Hz for 1 minute between charged parts and the case

Vibration resistance

10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

500m/s2 for 3 times each in X, Y, and Z directions

Degree of protection

IEC60529: IP67

Applicable standard (EC Directive (Low Voltage Directive))

EN60947-5-2

Applicable standard (EC Directive (EMC Directive))

EMI: EN60947-5-2

Emission Enclosure: EN55011 Group 1 class A

EMS: EN60947-5-2

Immunity ESD: IEC61000-4-2

Immunity RF-interference: IEC61000-4-3

Immunity Burst: IEC61000-4-4

CE marking: Equipped

Connection method

Pre-wired models (Cable length: 2 m)

Indicator

Light indicator(red), Stability indicator(green)

Weight (packed state)

approx. 110 g

Material (case)

PBT

Material (lens)

Denatured Polyarylate

Material (mounting bracket)

Stainless steel(SUS304)

Accessories

Instruction manual, Mounting bracket(with screws), Sensitivity adjustment driver, Reflector
