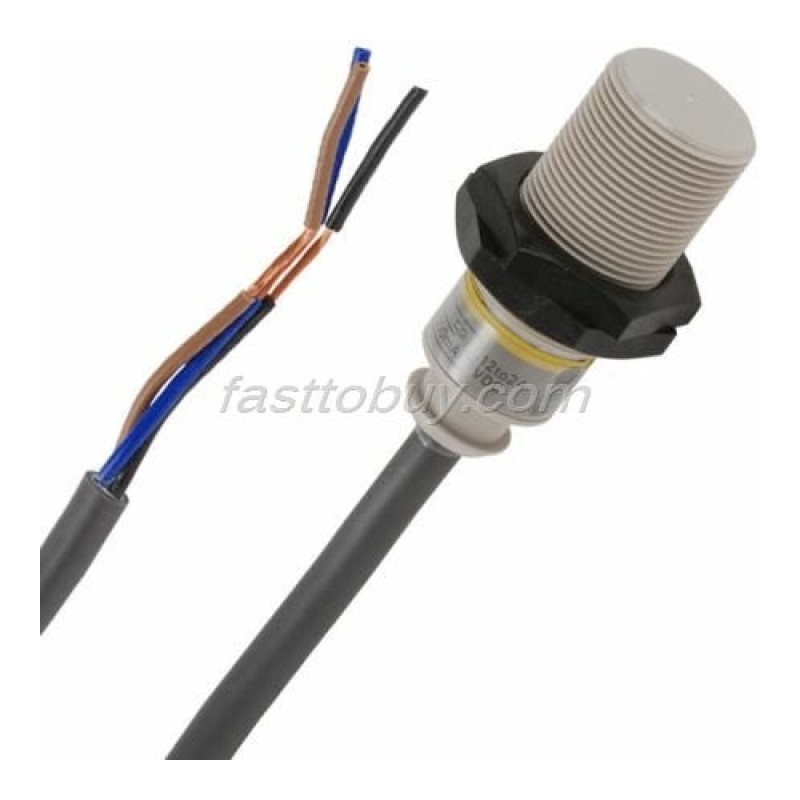

E2F-X5E1 E2F-X5E1 Resin-case Proximity Sensor NEW

Cylinder type sensing head size

M18

Type

Shielded

Sensing method

Inductive type

Sensing distance

5 mm -10% to +10%

Setting distance

0 to 4 mm

Differential distance

10% Max. of sensing distance

Sensing object

Ferrous metal (Sensitivity lowers with non-ferrous metals.)

Standard sensing object

Iron 18*18*1mm

Response frequency

DC: 600 Hz (average)

Power supply voltage

12 to 24 VDC (ripple(p-p) :10% Max.)

Operating voltage range

10 to 30 VDC

Current consumption

17 mA Max.

Control output (Output type)

NPN voltage-current output

Control output (Switching capacity)

0 to 200 mA

Control output (Residual voltage)

(DC) 2 V Max. ?under load current with cable length of 2m?

Indicator

Detection indicator(red)

Operation mode

NO

Protective circuit

Surge suppressor

Output short-cut protection

Power supply reverse polarity protection

Standard or Different frequency

Standard

Ambient temperature

Operating: -25 to 70 CEL

Storage: -25 to 70 CEL

(with no icing or condensation)

Ambient humidity

Operating: 35 to 95 %RH

Storage: 35 to 95 %RH

(with no condensation)

Temperature influence

+-10% Max. of sensing distance in temperature range of -25 to +70CEL

(As the basis for sensing distance of 23CEL)

Voltage influence

+-2.5% Max. of sensing distance in rated voltage range +-15%. (As the basis for sensing distance at standard power voltage)

Insulation resistance

50 M OHM Min. at 500VDC between charged parts and the case

Dielectric strength

1000 VAC 50/60 Hz for 1 minute between charged parts and the case

Vibration resistance

10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

1000m/s2 for 10 times each in X, Y, and Z directions

Degree of protection

IEC60529: IP68

Company standard: Oil-proof

Applicable standard (EC Directive (EMC Directive))

CE marking: Equipped

Applicable standard (CCC mark)

Not equipped

Connection method

Pre-wired models (Cable length: 2 m)

Weight (Packed state)

approx. 130 g

Material (case)

Polyarylate

Material (sensing surface)

Polyarylate

Material (clamping nuts)

Polyacetal

Accessories

Instruction manual
