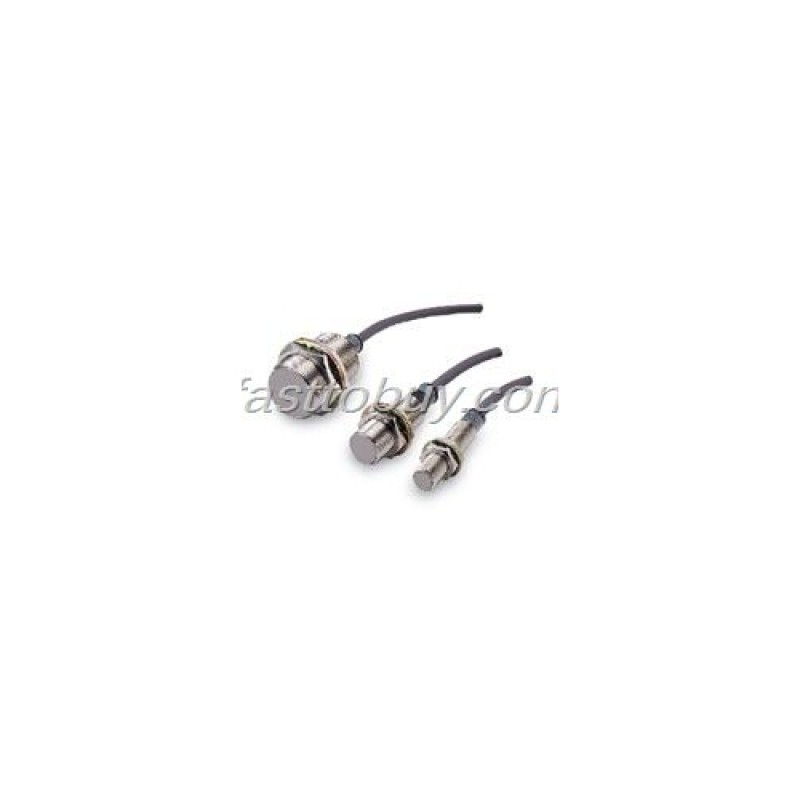

E2EV-X2C1 Proximity Switch NEW

Model

E2EV-X2C1

E2EV-X5C1

E2EV-X10C1

E2EV-X2C2

E2EV-X5C2

E2EV-X10C2

Sensing distance

2mm ±10%

5 mm ±10%

10 mm ±10%

Set distance

0 to 1.4 mm

0 to 3.5 mm

0 to 7 mm

Differential travel

10% max. of sensing distance

Detectable object

Ferrous metal and non-ferrous metal

Standard sensing object

Aluminum: 12 × 12 × 1 mm

Aluminum: 18 × 18 × 1 mm

Aluminum: 30 × 30 × 1 mm

Response frequency *

150 Hz

70 Hz

Power supply voltage

12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.

(operating voltage range)

Current consumption

15 mA max.

Control

Load

NPN open-collector output, 100 mA max. (at 30 VDC)

output

current

Residual

2 V max. (Load current: 100 mA, Cable length: 2 m)

voltage

Indicators

Detection indicator (red)

Operation mode

C1 Models: NO

(with sensing object approaching)

C2 Models: NC

Refer to Datasheet.

Protection circuits

Reverse polarity protection, Load short-circuit protection, Surge suppressor

Ambient temperature range

Operating/Storage: -10 to 55°C (with no icing or condensation)

Ambient humidity range

Operating/Storage: 35% to 95% (with no condensation)

Temperature influence

±20% max. of sensing distance at 23°C in the temperature range of -10 to 55°C

Voltage influence

±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range

Insulation resistance

50 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength

1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions

Degree of protection

IEC 60529 IP67, in-house standards: oil-resistant

Connection method

Pre-wired Models (Standard cable length: 2 m)

Weight (packed state)

Approx. 120 g

Approx. 140 g

Approx. 190 g

Materials

Case

Nickel-plated brass

Sensing

Heat-resistant ABS

surface

Clamping

Nickel-plated brass

nuts

Toothed

Zinc-plated iron

washer

Accessories

Instruction manual
