D4NL-4AFA-BS Safety Door Switch NEW

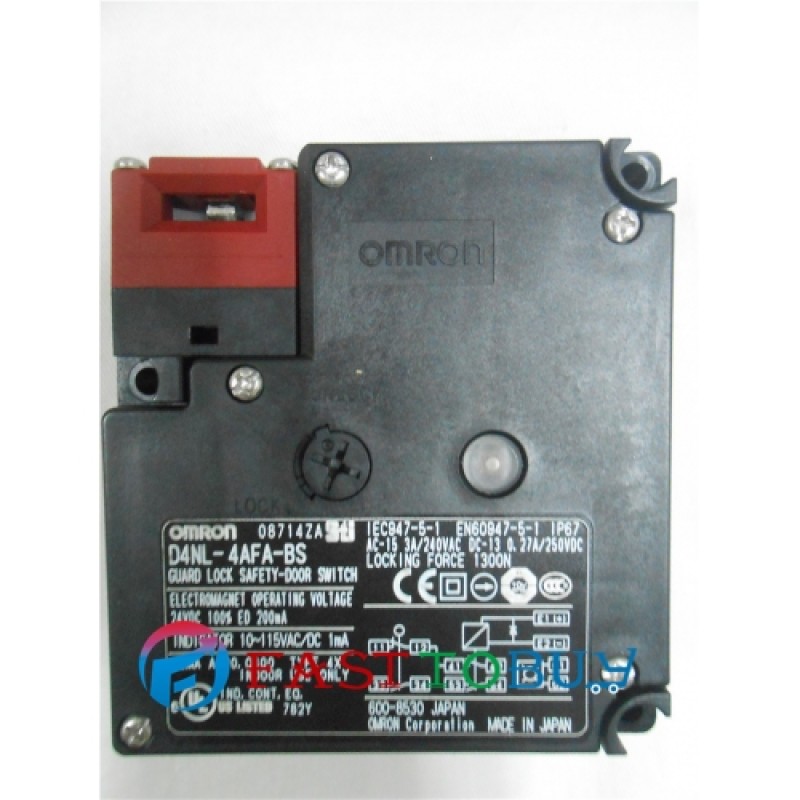

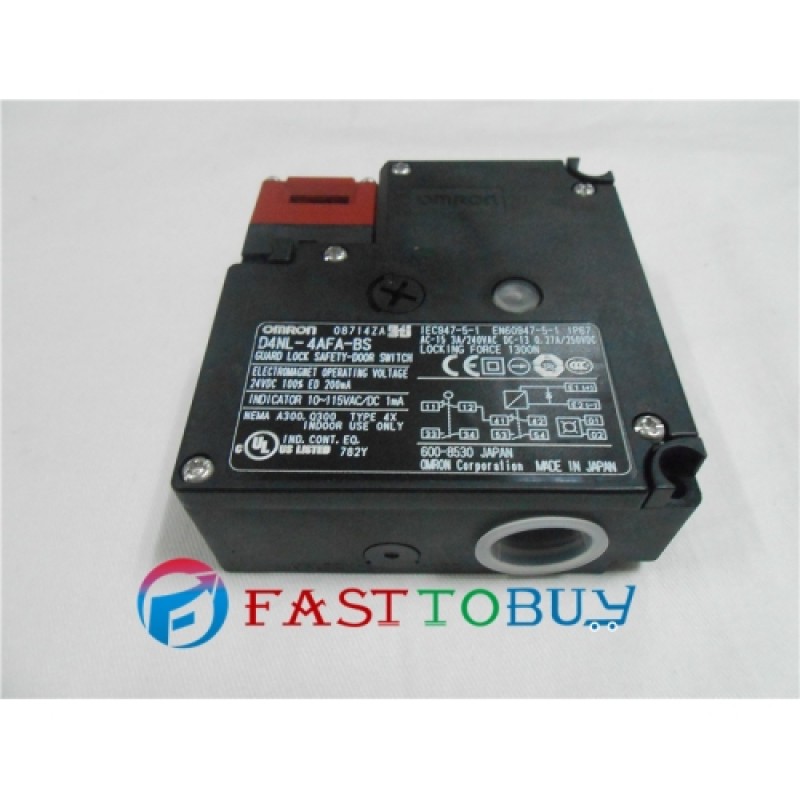

OMRON Safety Door Switch D4NL-4AFA-BS

Product Description:

Selectable Operation Key insertion direction and adjustable mounting ensure installation flexibility.

Built-in switches with multiple-contact construction are available.

Key holding force of 1,300 N minimum.

Can be used for either standard loads or microloads.

Lineup includes models with a conduit size of M20.

IP67 degree of protection.

Variety of Metallic Heads Available.

Specifications:

Note:

1.The above values are initial values.

2.The Switch contacts can be used with either standard loads or microloads. Once the contacts have been used to switch a load, however, they cannot be used to switch smaller loads. The contact surfaces will become rough once they have been used and contact reliability for smaller loads may be reduced.

*1.The degree of protection is tested using the method specified by the standard (EN60947-5-1). Confirm that sealing properties are sufficient for the operating conditions and environment beforehand. Although the switch box is protected from dust or water penetration, do not use the D4NL in places where foreign material may enter through the key hole on the head, otherwise Switch damage or malfunctioning may occur.

*2.The durability is for an ambient temperature of 5 to 35°C and an ambient humidity of 40% to 70%. For more details, consult your OMRON representative.

*3.Do not pass the 3 A, 250 VAC load through more than 2 circuits.

*4.These figures are minimum requirements for safe operation.

*5.This figure is based on the GS-ET-19 evaluation method.

*6.This value will vary with the switching frequency, environment, and reliability level. Confirm that correct operation is possible with the actual load beforehand.
