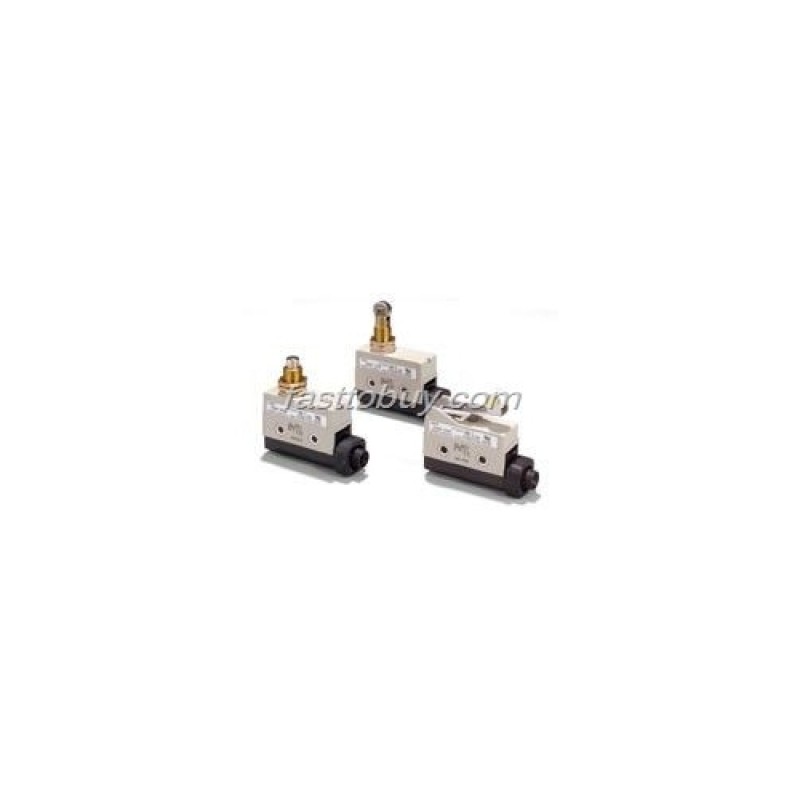

OMRON Travel Switch D4MC-1000
Product Description:
Enclosed Switches with Built-in Basic Switches for High Repeatability and Durability of 10 Million Operations Minimum.
Panel mount versions have the same operating position as Z Basic Switch.
Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches.
Resin molded terminal versions are available.
Approved by UL, CSA, and CCC (Chinese standard). (Ask your OMRON representative for information on approved models.)
Specifications:
Degree of protection | IP67 | |
Durability | Mechanical | 10,000,000 operations min. |
Electrical | 500,000 operations min. | |
Operating speed | 0.05 mm/s to 0.5 m/s *1 | |
Operating | Mechanical | 120 operations/min |
frequency | Electrical | 20 operations/min |
Rated frequency | 50/60 Hz | |
Insulation resistance | 100 M Ω min. (at 500 VDC) | |
Contact resistance | 15 m Ω max. (initial value for the built-in switch when tested alone) | |
Dielectric | Between terminals of the same polarity | 1,000 VAC, 50/60 Hz for 1 min |
strength | Between each terminal and non- | 2,000 VAC, 50/60 Hz for 1 min |
| current-carrying part | |
Rated insulation voltage (Ui) | 1,000 VAC | |
Pollution degree (operating environment) | 3 (IEC947-5-1) | |
Protection against electric shock | Class II | |
PTI (tracking characteristics) | 175 | |
Switch category | D (IEC335) | |
Rated operating current (Ie) | 10:00 AM | |
Rated operating voltage (Ue) | 250 VAC | |
Vibration | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude *2 |
resistance | ||
Shock | Destruction | 1,000 m/s2 min. |
resistance | Malfunction | 100 m/s2 min. *1 *2 |
Ambient operating temperature | - 10 ° C to +80 ° C (with no icing) | |
Ambient operating humidity | 35% to 95%RH | |
Weight | Approx. 71 g (in case of panel mount plunger) | |
Note:
*1.Only for models with plungers. (Contact your OMRON representative for information on other models.)
*2.Less than 1 ms under a free state at the operating limits.
