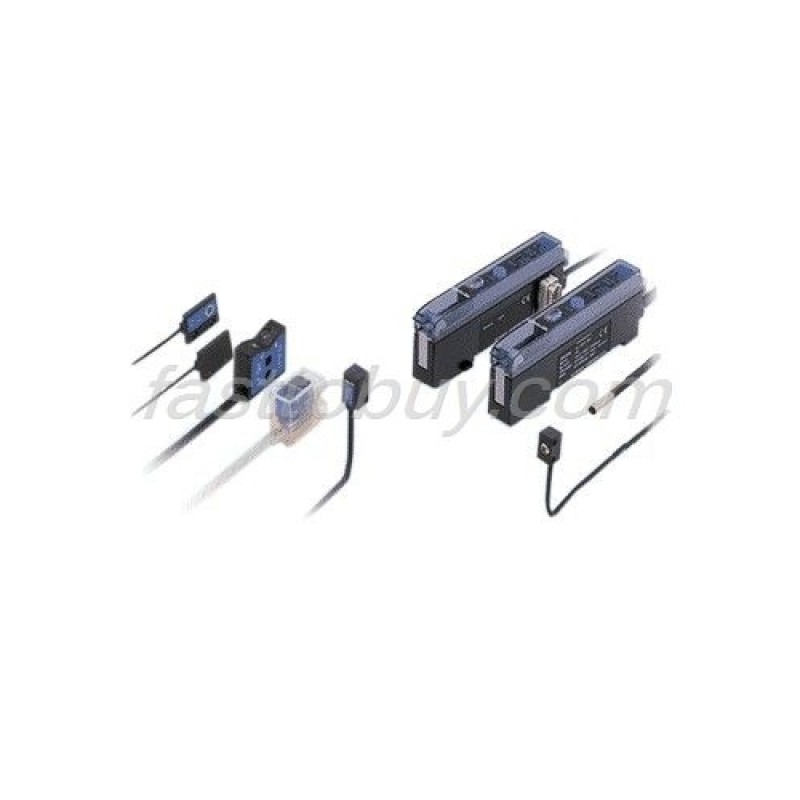

PS-T1 KEYENCE Sensor amplifier NEW

Product Specifications:

Operation mode?

LIGHT ON/DARK ON (switch-selectable)

Indicators?

Output indicator: Red LED, Stable operation indicator: Green LED,Calibration indicator: Yellow LED

Timer function?

ON-delay: 40 ms, OFF-delay: 40 ms, Timer OFF (switch-selectable)

Control output?

NPN open-collector 100 mA max. (40 V max.)Residual voltage: 1 V max. 2.

Stability output?

NPN open-collector 50 mA max. (40 V max.)Residual voltage: 1 V max. 3.

Protection circuit?

Reverse polarity protection, Over-current protection, Serge absorber

Power supply voltage?

12 to 24 VDC ±10%, Ripple (P-P) 10% max.4.Current consumption? 35 mA max.

Ambient temperature ?-10 to +55°C 5.

Relative humidity ?35 to 85%

Vibration ?

10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours respectively

Shock immunity?

500 m/s2 {Approx. 50 G} in X, Y and Z directions, 3 times respectively

Housing material? Body/Cover: Polycarbonate

2.There is no control

output cable for the PS-T0.

Control output for the PS-T0 is

sent from the FS-R0.

3. Stability output is only provided

by the PS-T1. Stability output

for the PS-T2/T0 is sent from

the PS-T1, FS-T1, FS-M1 or

FS-R0.

4.Power for the PS-T2/T0 is

supplied through the PS-T1,

FS-T1, FS-M1 or FS-R0.

5.When several units are connected, the ambient temperature requirement varies depending on the total number of units connected.When 3 to 10 units: -10 to +50°C

When 11 to 16 units: -10 to +45°C When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20

mA.
