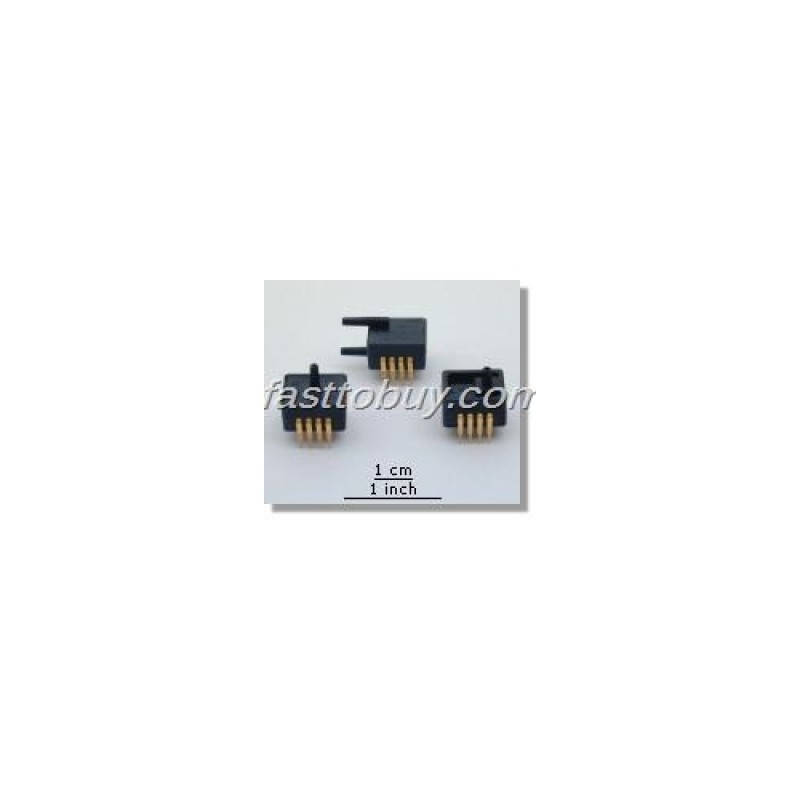

ASDX015A24R Honeywell pressure sensor NEW

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Description:

ASDX series pressure sensor applications

Medical equipment

Pressure measurement

HVAC control

Pneumatic control

ASDX series pressure sensor characteristics

Varistor sensor

Precision ASIC

High-level output

Temperature compensation

ASDX series pressure sensor is a Sensym certified ICT representative products enhanced varieties, is also a leading industrial level SDX Series sensor enhanced. ASDX the external dimensions of the pressure sensor than SDX slightly greater, can provide the output voltage of the measurement range of the high level (4.0 V), cheap, and the series of pressure sensors using a full calibration and temperature compensation is mounted on a circuit board ASIC such pressure sensors, applies to non-corrosive non-ionic working fluids such as air and dry gases.

     ASDX series of pressure sensors can be used to measure the absolute value difference and gauge pressure in the range from 1 psi (ASDX01DN) to 100 psi (ASDX100) absolute pressure sensor has an internal vacuum reference and its output voltage is proportional to the absolute pressure of the differential pressure sensor allows applying pressure detected on both sides of the diaphragm can be used in the pressure gauge or differential pressure measurement.

     All ASDX series pressure sensor accuracy within ± 2.0%, the operating characteristics of the pressure sensor is obtained using a single 5V power supply, the pressure sensor is designed and manufactured according to ISO9001 contained in the standard terms
