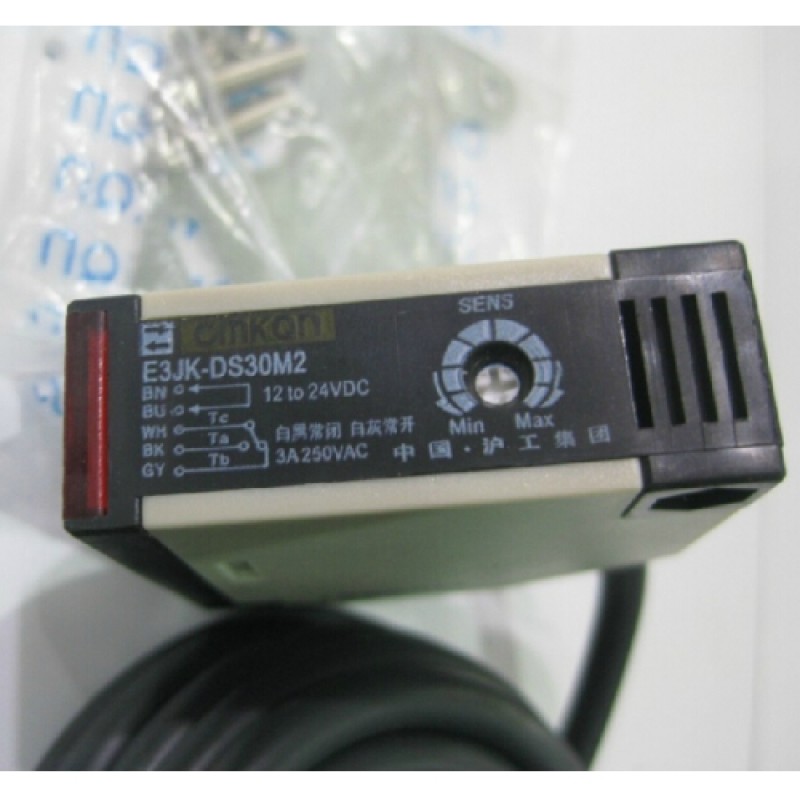

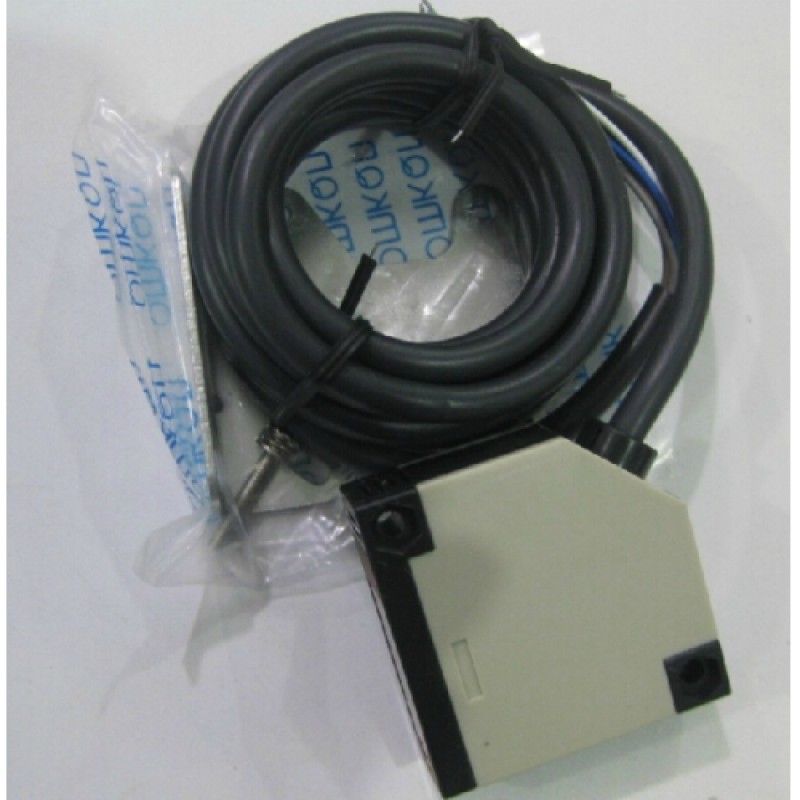

10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay

10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
10PCS E3JK-DS30M2 30cm Photoelectric Switch Diffuse Reflection Sensor DC12~24V for Relay
The columned can with various domestic same species directly replaced.Power supply reversal connecti... Read More
$60.00
Ex Tax: $60.00
  • Stock: In Stock
  • Model: E3JK-DS30M2
  • Weight: 2.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: E3JK-DS30M2

The columned can with various domestic same species directly replaced.

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC.

Newly added current over-load protection.

Long service life, high reliability and strong resistance property to environment.

Red LED indicates that it is available to detect the sensor operating state.

IP67 protection structure(IEC specification).

Read the “Matters needing attention” of the product instruction before used.

Type and Specification

Dimension

18*50*50

Detection method

Diffuse type

Feedback reflection type





Type





Relay output

DC illuminate

E3JK-DS30M1

E3JK-R4M1

AC illuminate

E3JK-DS30M1

E3JK-R4M1

DC non-illuminate

E3JK-DS30M2

E3JK-R4M2

AC non-illuminate

E3JK-DS30M2

E3JK-R4M2

Detection range

30cm(+10%~-10%)

4M(+10%~-10%)

Detection target

Transparent/Opaque object

Opaque object

detection range regulation

Sensitivity adjuster

Sensitivity adjuster

Response time

30ms

30ms

Connection delay: 1.5ms.

Light source: infrared light 660NM.

Suppply voltage: DC type: D12-24V(6~36V)impulse (p-p)10% below, AC type AC110~220V (36~250V)50/60Hz

DC&AC type: D12~240V/AC24V~240V,50/60Hz.

Power current: 3V below

Control output: 2A below(contact service life:0.1 million times).

Impulsion and vibration are allowed:B<=30g, T<=11ms,F<=55Hz,a<=1mm,

Ambient temperature & humidity: During operation,storage: individualy -30~+65 centigrade degree(no freeze, no drew),during operation,storage: individually 35~95% RH)

Voltage influence: inside +-15% rated supply voltage, at rated supply voltage value +-10% detection distance.

Protection structure: IP65(IEC specification)

Material: (Housing: Nickel plated brassABS), Detection surface(lens): PMMA.
