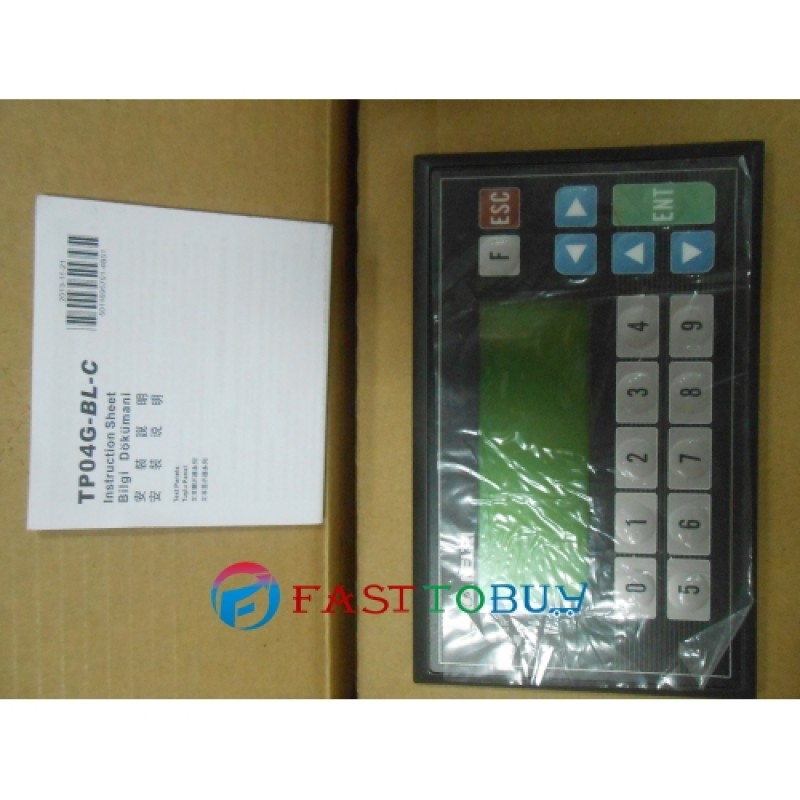

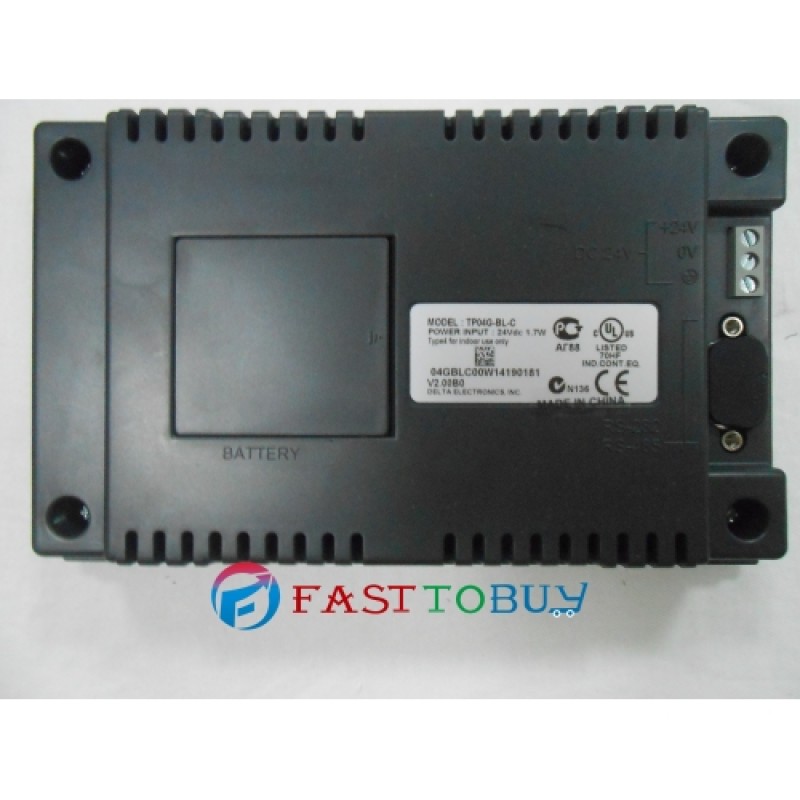

TP04G-BL-C Delta TP Text display 4 lines New In Box:
Features
The screen of this series can display four lines text or message at the same time. It not only has the features of light weight, cost-effective price, good flexibility in use, and easy-to-control operation, but also supports various communication protocols
Specifications
*4.1" STN LCD (Monochrome)
*192*64 pixels
*0~9 numeric keys and user-defined function keys available
*Built-in RS-232 Modbus ASCII/RTU mode
*User-defined boot screen available
*Supports Modbus slave mode
Model | TP04G-BL-C |
Screen type / Display color | STN-LCD / Monochrome |
Driver | Delta products |
Backlight | The automatic turn-off time of backlight: 1 ~ 99 minutes (0 = do not turn off) (Life span of backlight is about 50,000 hours at 25°C) |
Resolution | 192 × 64 dots |
Display range | 101.8mm(W) × 35.24mm(H); 4.1” (diagonal preferred) |
Font size | ASCII: 5×8, 8×8, 8×12, 8×16 |
Display text | 5×8 dots 38 characters × 8 rows 8×8 dots 24 characters × 8 rows 8×12 dots 24 characters × 5 rows 8×16 dots 24 characters × 4 rows |
Battery cover | DC 3V battery |
CPU | STM32F101 |
Program memory | 256KB flash memory |
RAM of system | 10k Byte |
External input power | 24V (1.7W Max.) |
Waterproof class of front panel | IP66 / NEMA4 |
Operating temperature for hardware | 0°C ~ 50°C; 20% - 90% RH (non-condensing) |
Storage temp. for hardware | -20°C ~ 60°C |
Vibration | IEC61131-2, IEC 68-2-6 (TEST Fc) 5Hz≤f?8.4Hz Continuous: 3.5mm 8.4Hz≤f≤150Hz Continuous: 1.0g |
Weight | 292g |
Dimensions | 175.8 × 108.6 × 37mm (Width(W) × Height(H) × Deep(D)) |
Cooling method | Natural air cooling |
