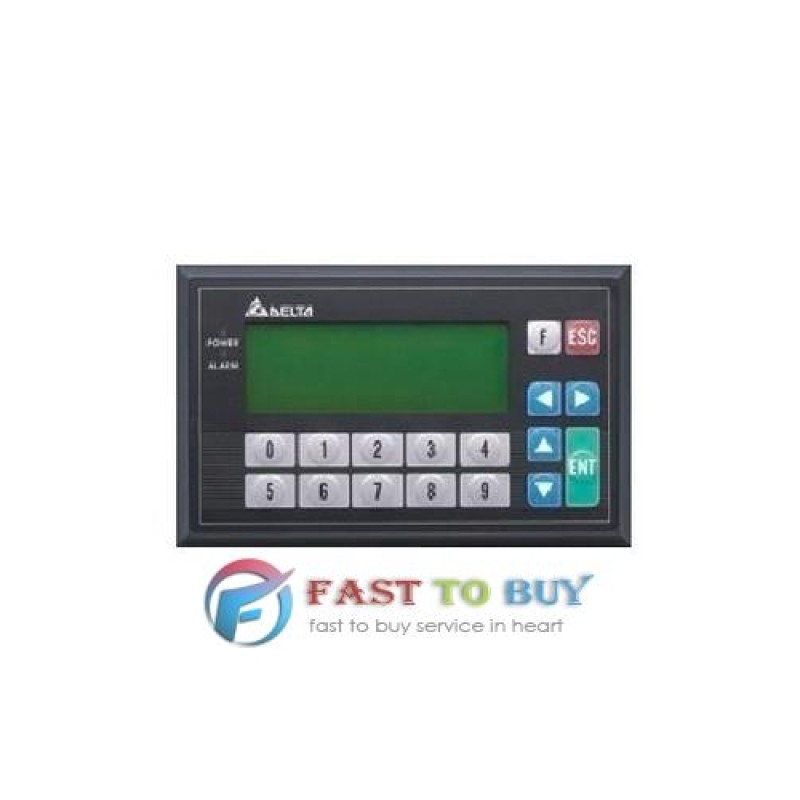

TP04G-AL-C 4.1" 192*64 STN Single Color Delta Text Panel New with USB program Cable

TP04G-AL-C 4.1
TP04G-AL-C 4.1
TP04G-AL-C 4.1
TP04G-AL-C 4.1
TP04G-AL-C 4.1" 192*64 STN Single Color Delta Text Panel New with USB program Cable
TP04G-AL-C Delta TP Text display 4 lines New In BoxIf you need more than 10pcs and want to get bette... Read More
$88.00
Ex Tax: $88.00
  • Stock: In Stock
  • Model: TP04G-AL-C
  • Weight: 1.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: TP04G-AL-C
TP04G-AL-C Delta TP Text display 4 lines New In Box

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:

email:[email protected]

Tel:0086-574-88333153

We will quote you our best price to you in 24hours.

TP04G-AL-C Delta TP Text display 4 lines New In Box:


Features

The screen of this series can display four lines text or message at the same time. It not only has the features of light weight, cost-effective price, good flexibility in use, and easy-to-control operation, but also supports various communication protocols

Specifications

*4.1" STN LCD
*User-defined function keys available
*TP04G-AL2 supports RS-232/RS-422/RS-485 communication ports
*Password protection
*User-defined boot screen available
*Built-in real-time clock

Model

TP04G-AL

Screen type / Display

color

STN-LCD / Monochromatic

Driver

Only for Delta automation

products

Resolution

192 × 64 dots

Display range

101.8mm(W) × 35.24mm(H); 4.1” (diagonal preferred)

Font size

ASCII: 5×8, 8×8, 8×12, 8×16

Display text

5×8 dots 38 characters × 8 rows

8×8 dots 24 characters × 8 rows

8×12 dots 24 characters × 5 rows

8×16 dots 24 characters × 4 rows

Battery cover

DC 3V battery

CPU

STM32F101

Program memory

256KB flash memory

RAM of system

10K Byte

External input power

24V (1.7W Max.)

Waterproof class of front

panel

IP66 / NEMA4 / UL Type4 indoor

Operating temperature

for hardware

0°C ~ 50°C; 20% - 90% RH (non-condensing)

Storage temperature for

hardware

-20°C ~ 60°C

Vibration

IEC61131-2, IEC 68-2-6 (TEST Fc)

5Hz≤f?8.4Hz Continuous: 3.5mm

8.4Hz≤f≤150Hz Continuous: 1.0g

Weight

268g

Dimensions

163.6×108.6×37mm (Width(W) × Height(H) × Deep(D))

Cooling method

Natural air cooling

Other hot items of this Delta Text Display:

TP04G-AL-C

TP04G-AL-C Delta TP Text display 4 lines New In Box

TP04G-AS2

TP04G-AS2 Delta TP Text display 4 lines New In Box

TP04G-BL-C

TP04G-BL-C Delta TP Text display 4 lines New In Box

TP04G-BL-CU

TP04G-BL-CU Delta TP Text display 4 lines New In Box

TP08G-BT2

TP08G-BT2 Delta TP Text display 8 lines New In Box
