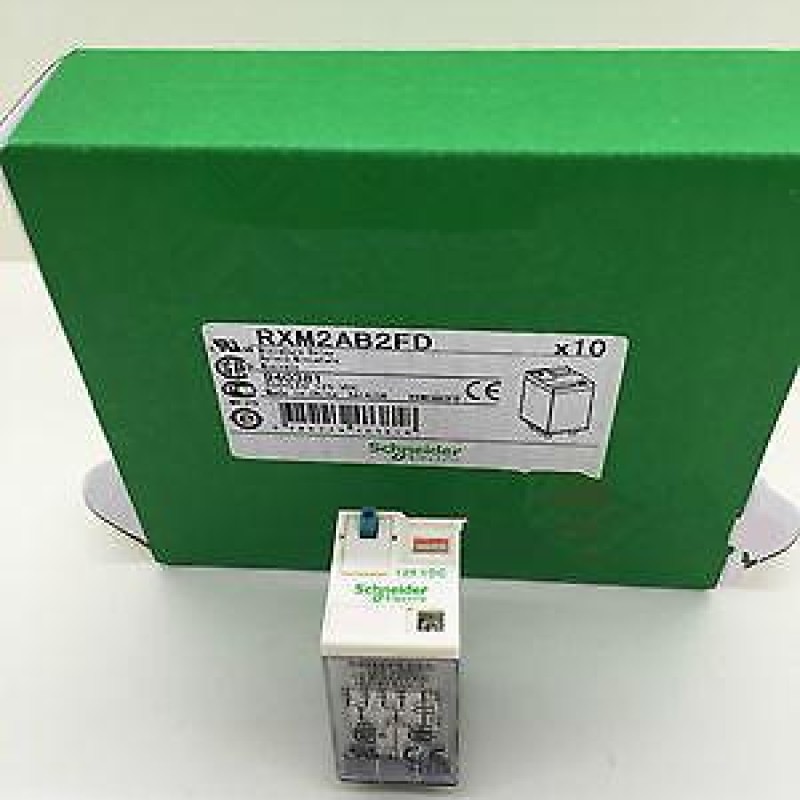

RXM2AB2FD Schneider Relay NEW

Contact Arrangement

DPDT

Contact Rating (NEMA)

B300

Relay Type

Miniature

Description (Individual)

Ice Cube Relays / DPDT, 12 Amp Rating

Electrical Connection

Flat/Spade (Faston Type)

Mounting Style

Plug-In Socket (DIN rail or Flange with adapter)

Contact Configuration

2 NO/2 NC

Contact Materials

Silver Alloy (AgNi)

Coil Voltage

110 VDC

Coil Resistance

11000 Ohms

Average Consumption

0.9 W

Drop-out Voltage Threshold

0.10 Uc

Rated Operational Current (IEC)

12A (NO) - 6A (NC)

Rated Operational Current (UL)

12A

Switching Capacity (Minimum)

10mA@17V

Horsepower Rating

0.5HP@120VAC

Switching Capacity (Maximum)

3000 VA

Conventional Thermal Current

12A

Maximum Switching Voltage

250V

Rated Insulation Voltage

300V (UL & CSA) - 250V (IEC)

Nominal Load (Resistive)

12A@250VAC - 12A@28VDC

Mechanical Durability

10 million operating cycles

Certifications

UL Listed - CSA Certified - CE Marked - RoHS Compliant

Operating Time (Response Time)

(NO) AC: 20ms DC: 20ms (NC) AC: 20ms DC: 20ms

Electrical Durability (Resistive Load)

0.1 million operating cycles

Type

RXM

Lockable Test Button

Yes

LED Indicator

Yes

Dielectric Strength - Between Coil and Contact

1550 VAC

Ambient Air Temperature (Operation)

-40 to 131°F (-40 to 55°C)

Specifications

Sold in lots of 10

Dielectric Strength - Between Poles

1550 VAC

Maximum Operating Rate (Under Load)

1200 operating cycles/hour

Shock Resistance

15g (opening) 15g (closing)

Dielectric Strength - Between Contacts

1500 VAC

Degree of Protection

IP 40 conforming to IEC/EN 60529

Maximum Operating Rate (No Load)

18000 operating cycles/hour

Ambient Air Temperature (Storage)

-40 to 185°F (-40 to 85°C)

Weight

0.082 lbs (0.037kg)

Rated Impulse Withstand Voltage

3.6 kV
